Gigabyte MZ32-AR0 (rev. 1.0) [100/146] 3 5 6 uart configuration options

BIOS Setup - 100 -

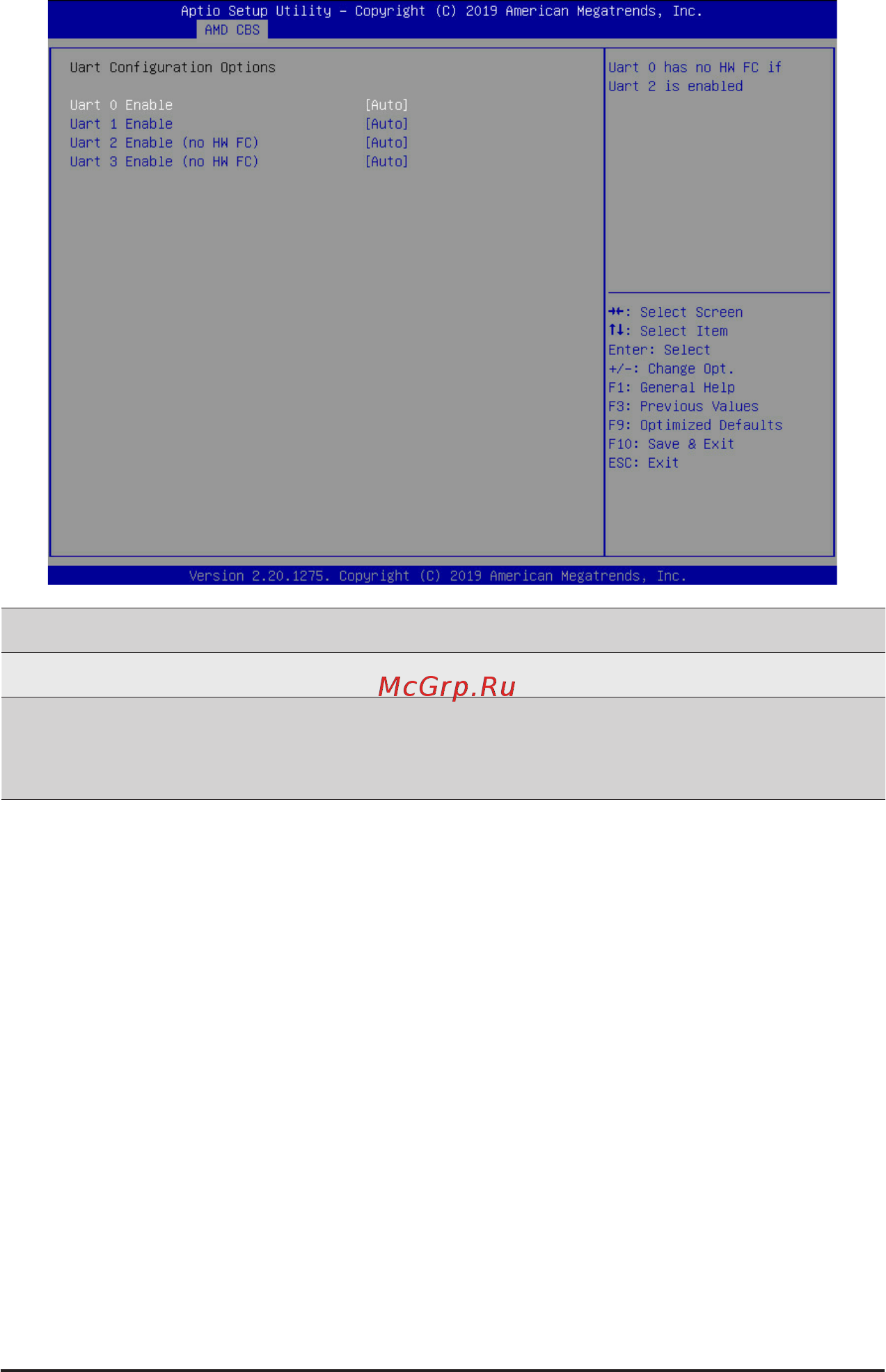

2-3-5-6 Uart Conguration Options

Parameter

Description

UartCongurationOptions

Uart #0 #1 #2 #3 Enable

Enable/Disable the Uart function. Uart 0 has no HW FC if Uart 2 is

enabled. Uart 1 has no HW FC if Uart 3 is enabled.

Options available: Auto, Enabled, Disabled. Default setting is Auto.
