Gigabyte MZ32-AR0 (rev. 1.0) [52/146] 2 13 amd mem configuration status

BIOS Setup - 52 -

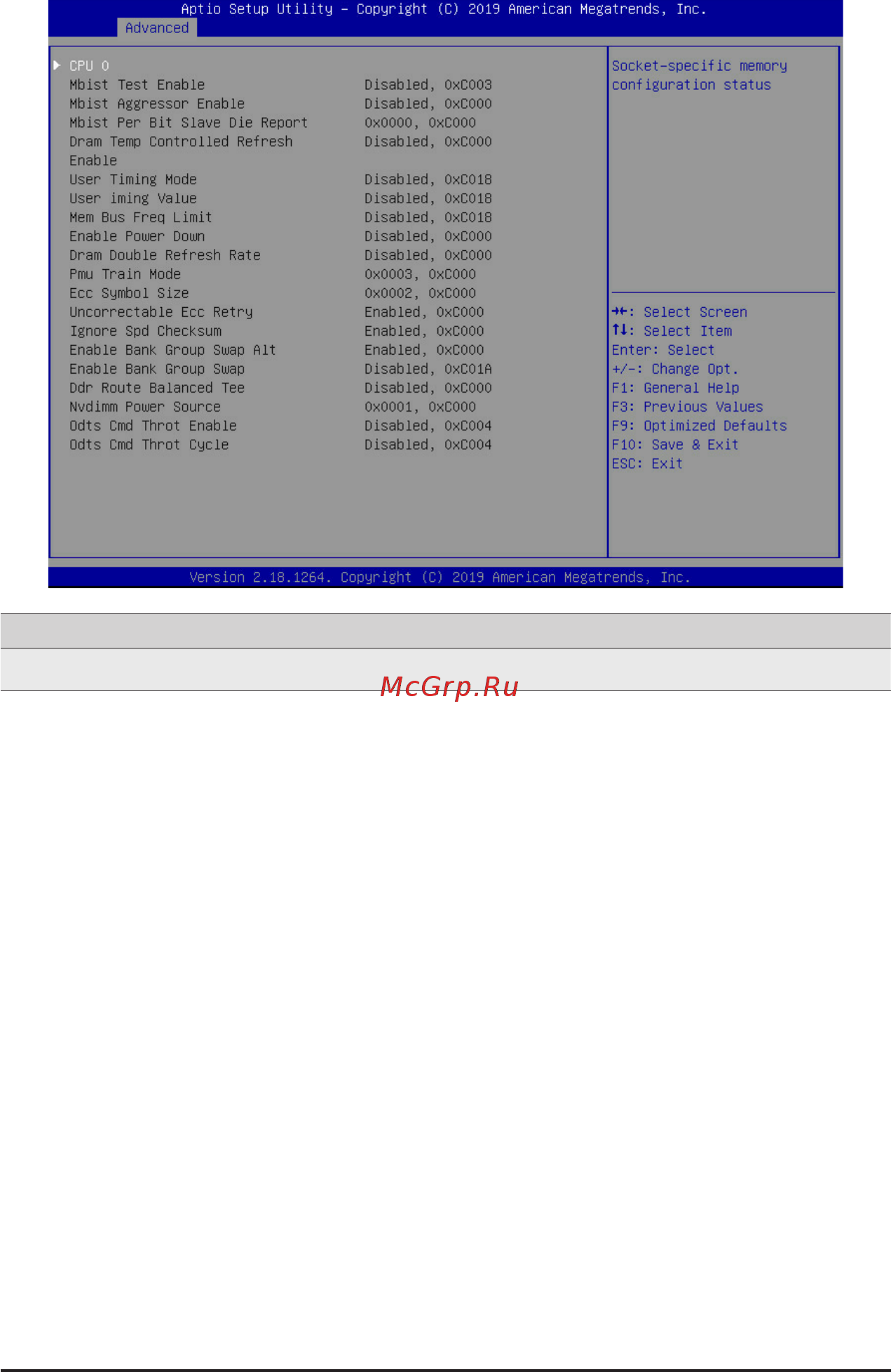

2-2-13 AMD Mem Conguration Status

Parameter

Description

CPU0

Press[Enter]toviewthememorycongurationstatusrelatedtoCPU0.
