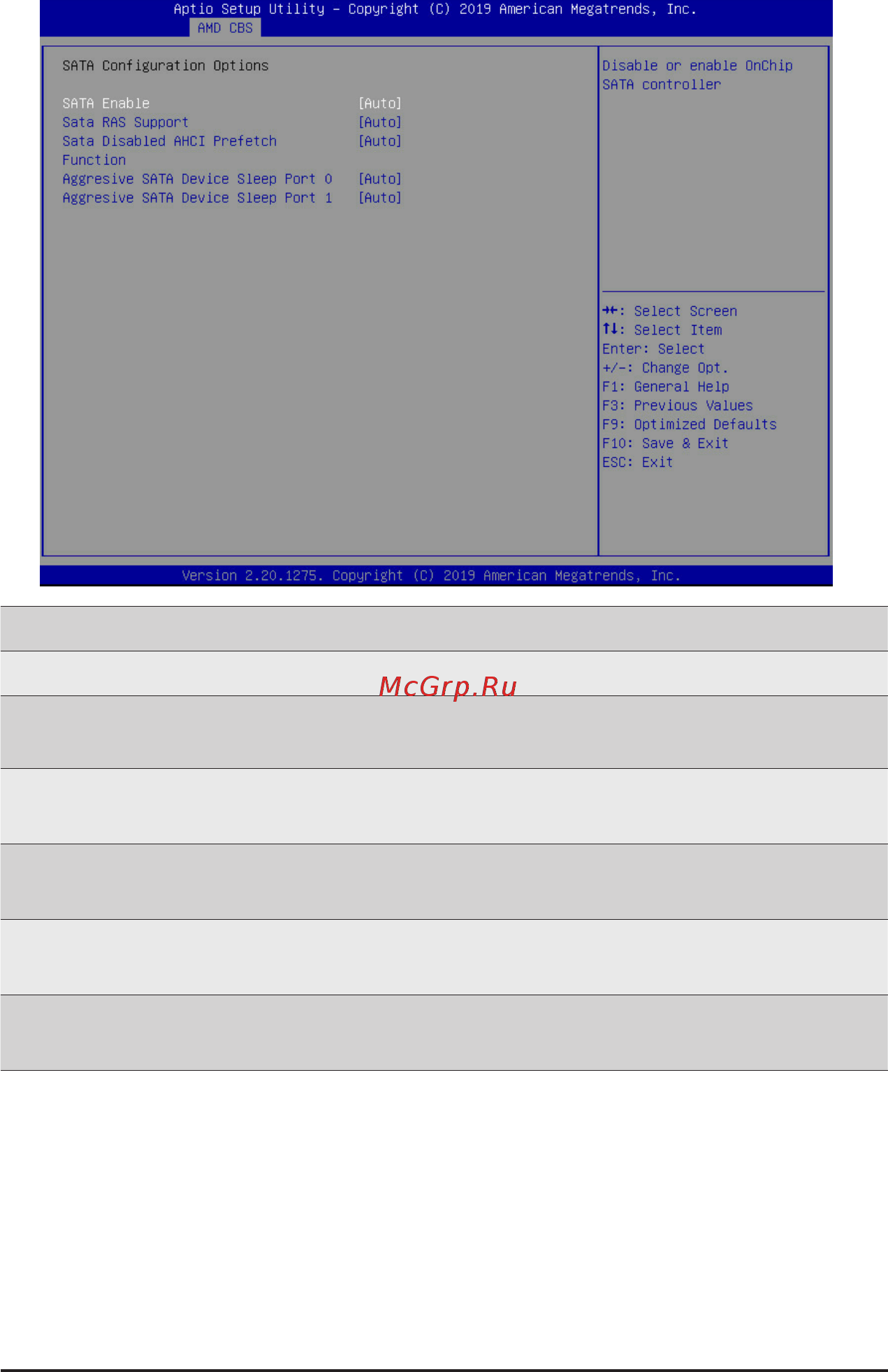

2-3-5-1 SATA Conguration Options

Parameter

Description

SATACongurationOptions

SATA Enable

Enable/Disable OnChip SATA controller.

Options available: Auto, Enabled, Disabled. Default setting is Auto.

SATA RAS Support

Enable/Disable SATA RAS Support.

Options available: Auto, Enabled, Disabled. Default setting is Auto.

SATA Disabled AHCI Prefetch

Function

Enable/Disable the SATA Disabled AHCI Prefetch function.

Options available: Auto, Enabled, Disabled. Default setting is Auto.

Aggresive SATA Device

Sleep Port 0

Options available: Auto, Enabled, Disabled. Default setting is Auto.

Aggresive SATA Device

Sleep Port 1

Options available: Auto, Enabled, Disabled. Default setting is Auto.
