Gigabyte MZ32-AR0 (rev. 1.0) [110/146] 5 1 north bridge

BIOS Setup - 110 -

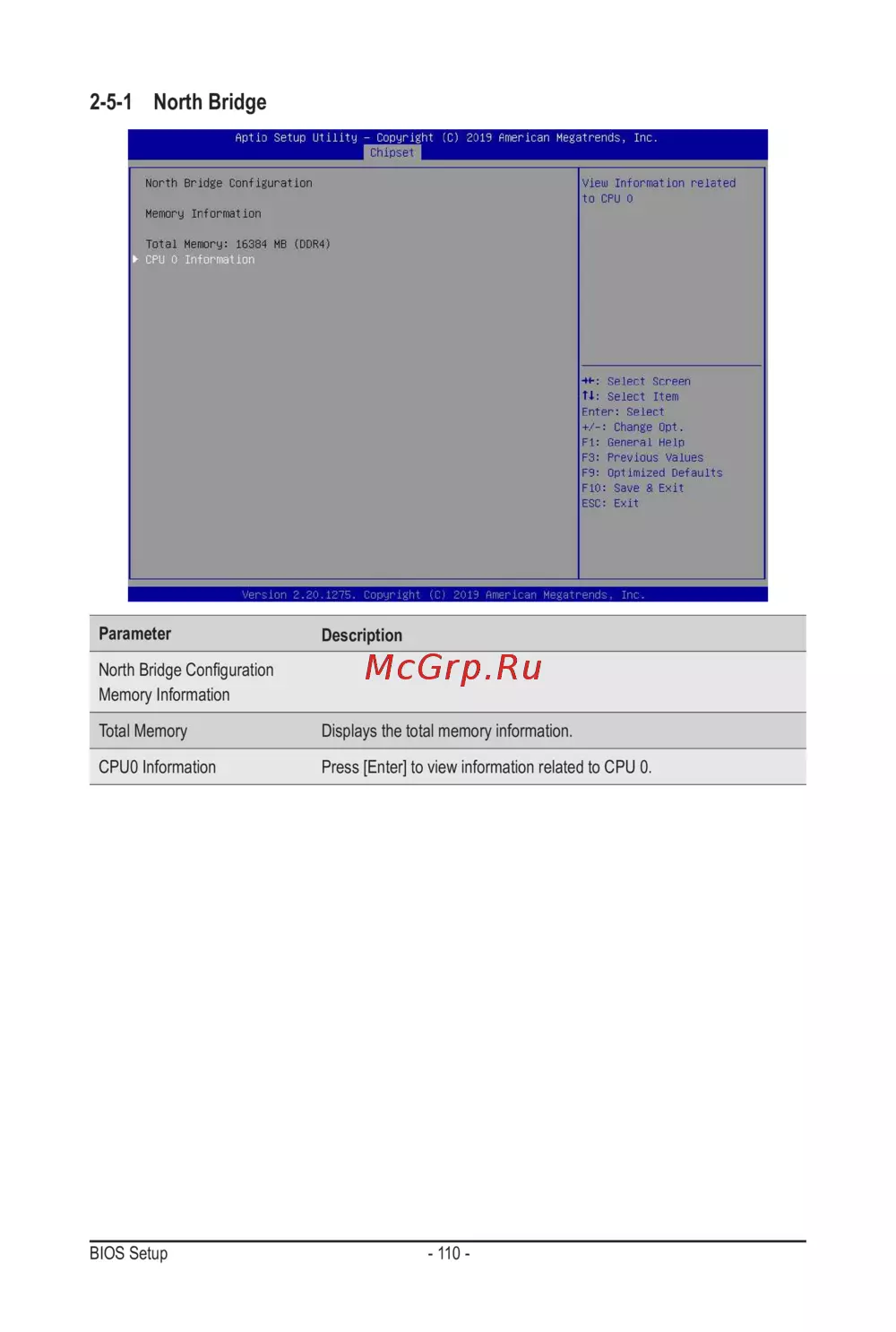

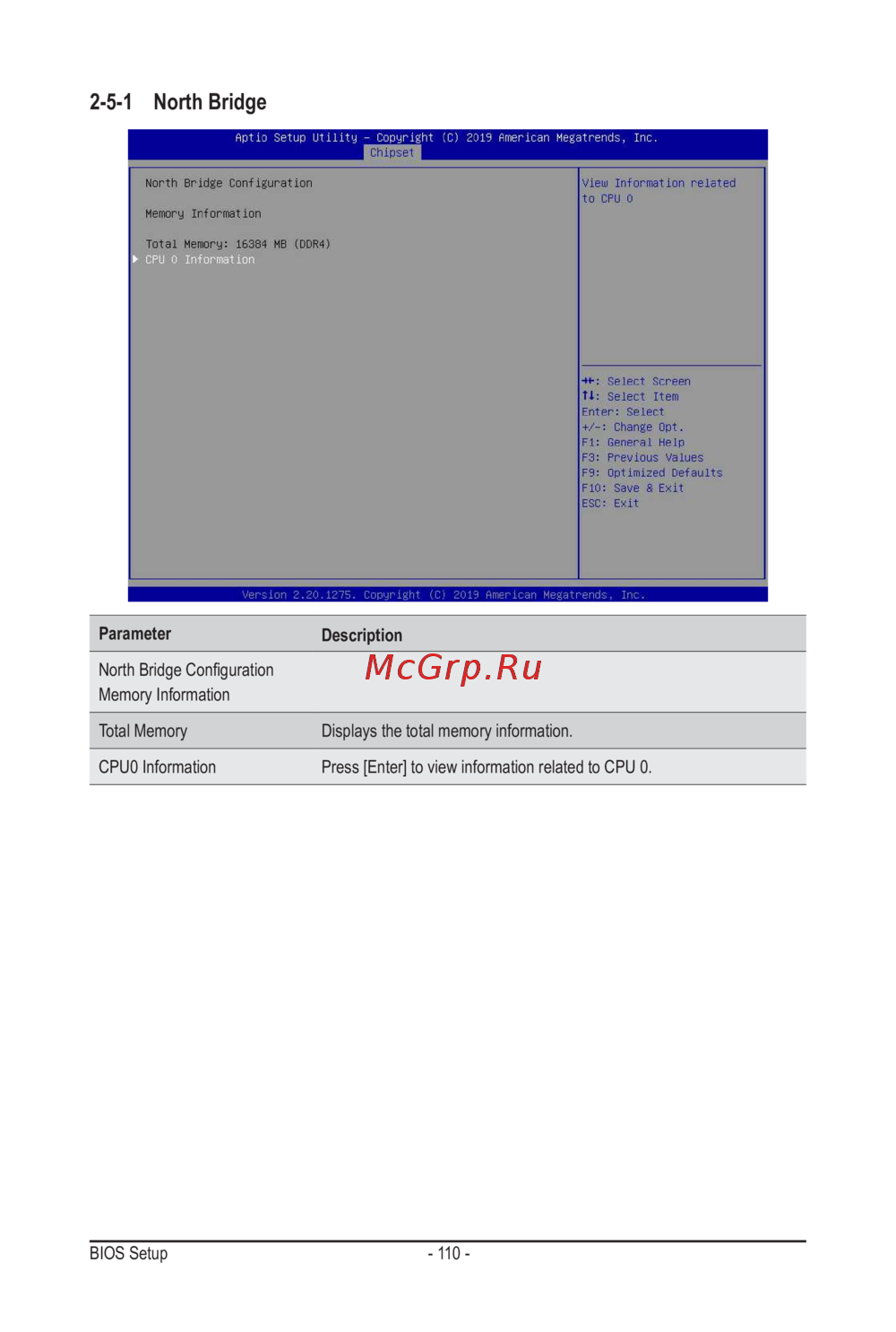

2-5-1 North Bridge

Parameter

Description

NorthBridgeConguration

Memory Information

Total Memory Displays the total memory information.

CPU0 Information Press [Enter] to view information related to CPU 0.
