- 25 - Hardware Installation

CPU

DIMM_P0_A1

DIMM_P0_A0

DIMM_P0_B0

DIMM_P0_B1

DIMM_P0_C0

DIMM_P0_C1

DIMM_P0_D0

DIMM_P0_D1

DIMM_P0_F0

DIMM_P0_F1

DIMM_P0_G0

DIMM_P0_G1

DIMM_P0_H0

DIMM_P0_H1

DIMM_P0_E0

DIMM_P0_E1

CPU

DIMM_P0_A1

DIMM_P0_A0

DIMM_P0_B0

DIMM_P0_B1

DIMM_P0_C0

DIMM_P0_C1

DIMM_P0_D0

DIMM_P0_D1

DIMM_P0_F0

DIMM_P0_F1

DIMM_P0_G0

DIMM_P0_G1

DIMM_P0_H0

DIMM_P0_H1

DIMM_P0_E0

DIMM_P0_E1

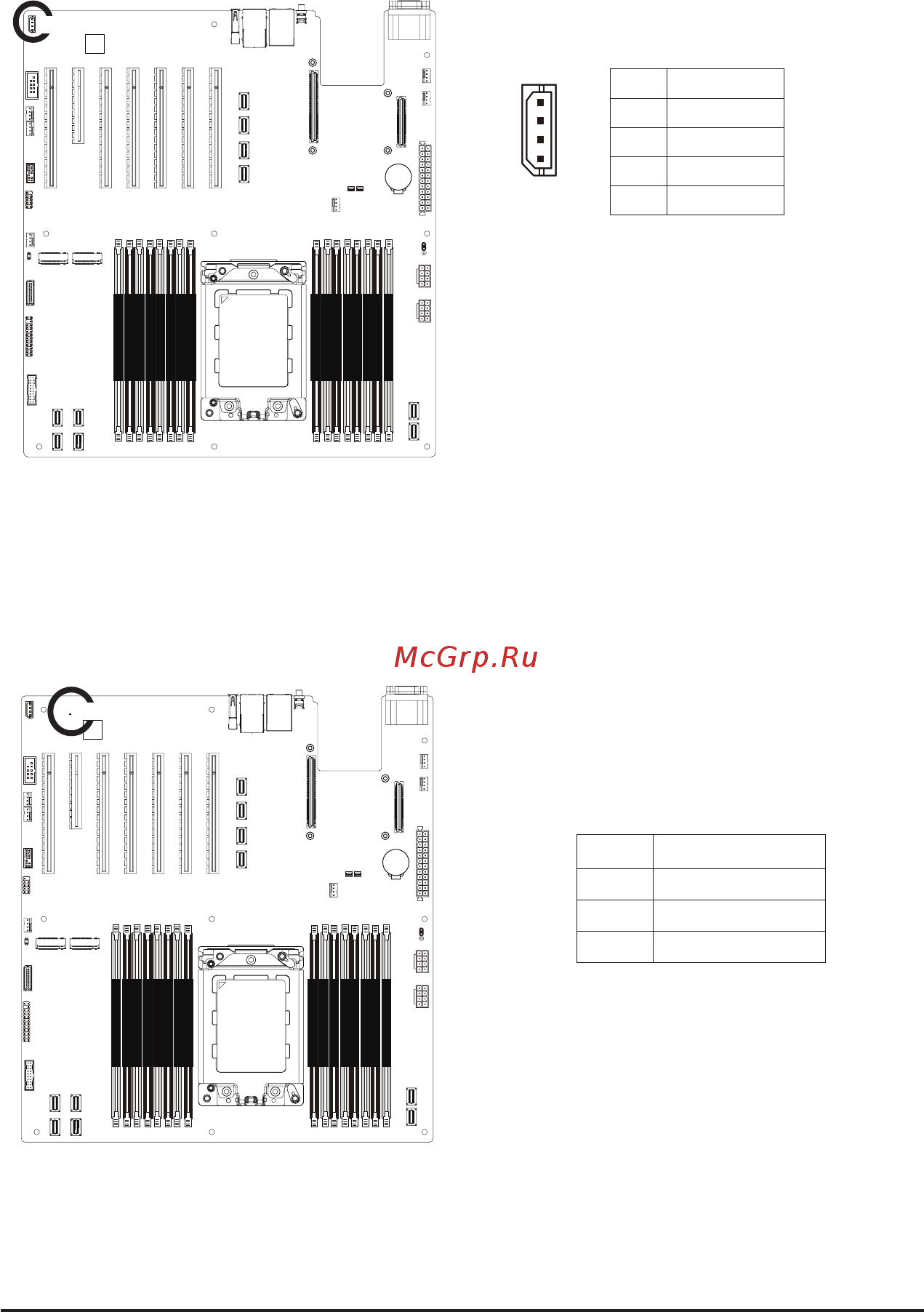

16) IPMB (Intelligent Platform Management Bus) Connector

The Intelligent Platform Management Bus Communications Protocol defines a byte-level transport for

transferringIntelligentPlatformManagementInterfaceSpecication(IPMI)messagesbetweenintelligentI2C

devices.

IPMB

Pin No. Denition

1 Clock

2 GND

3 Data

4 VCC

17) LED_BMC (BMC Firmware Readiness LED)

State Description

On BMCrmwareisinitial

Blink BMCrmwareisready

Off AC loss

LED_BMC
