Gigabyte MZ32-AR0 (rev. 1.0) [27/146] 9 jumper settings

- 27 - Hardware Installation

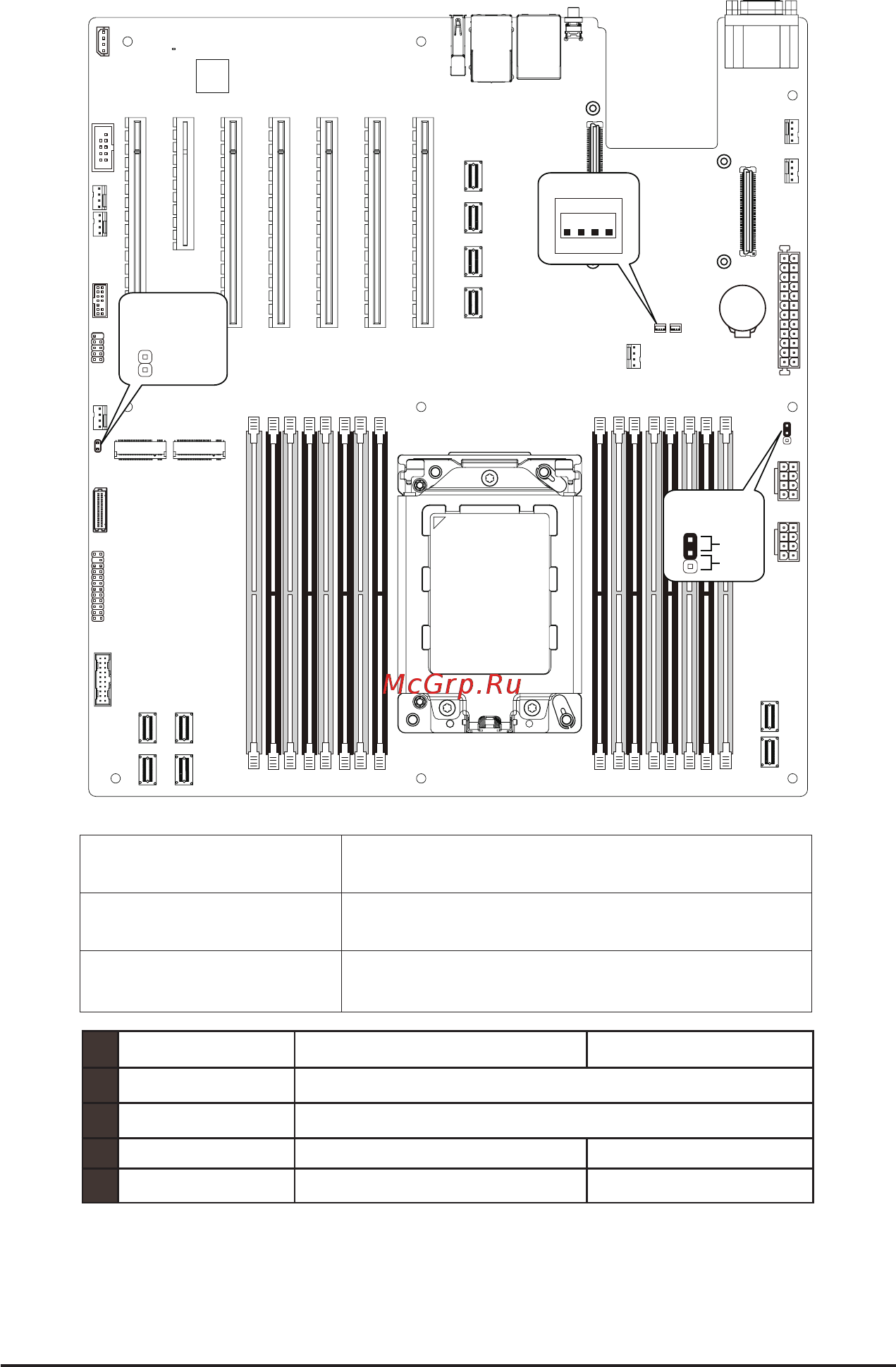

1-9 Jumper Settings

Jumper Name Jumper Setting

Chassis Open Intrusion Alert 1-2: Nomal operation (Default)

Clear CMOS

1-2: Nomal operation. (Default)

2-3: Clear CMOS data.

Clear CMOS

CLR_CMOS

Default

Enable

21',3



-

Chassis Open

Intruson Alert

CASE_OPEN

Case Open

GND

J2 ON OFF

1 HSMB_SEL BIOSDened

2 PMBUS_SEL BIOSDened

3 BIOS_PWD Clear Supervisor Password Normal [Default]

4 BIOS_RCVR BIOS Recovery Mode Normal [Default]
