Gigabyte MZ32-AR0 (rev. 1.0) [102/146] 3 5 8 emmc options

BIOS Setup - 102 -

2-3-5-8 eMMC Options

Parameter

Description

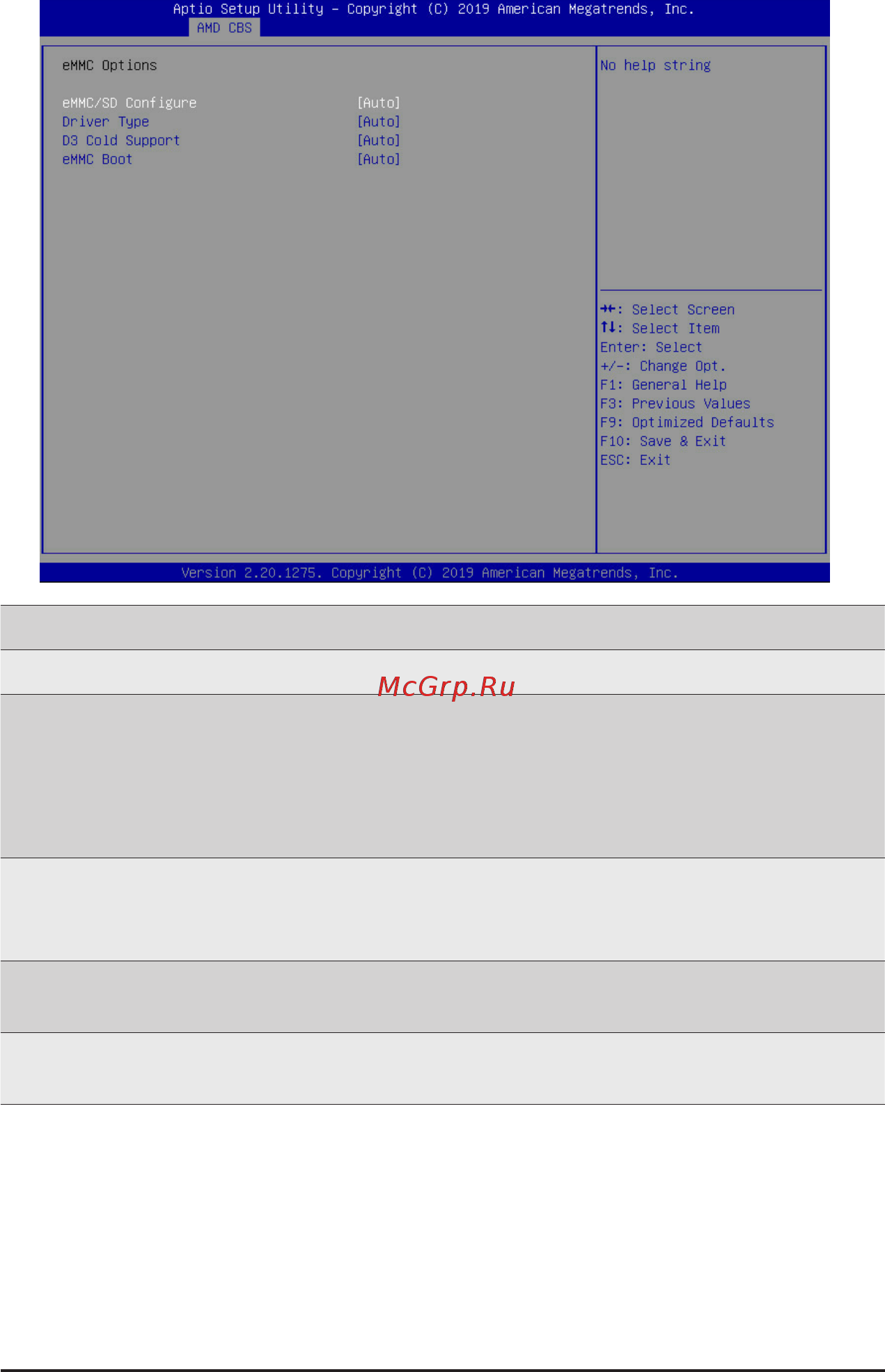

eMMC Options

eMMC/SDCongure

Options available: Auto, Disabled, SD Normal Speed, SD High Speed,

SD UHSI-SDR50, SD UHSI-DDR50, SD UHSI-SDR104, eMMC Emmc

Backward Compatibility, eMMC High Speed SDR, eNNC High Speed

DDR, eMMC HS200, eMMC HS400, eMMC HS300. Default setting is

Auto.

Driver Type

BIOS will select MS driver for SD selections.

Options available: Auto, AMD eMMC Driver, MS Driver. Default setting is

Auto.

D3 Cold Support

Enable/Disable the D3 Cold Support.

Options available: Auto, Enabled, Disabled. Default setting is Auto.

eMMC Boot

Enable/Disable boot on eMMC.

Options available: Auto, Enabled, Disabled. Default setting is Auto.
