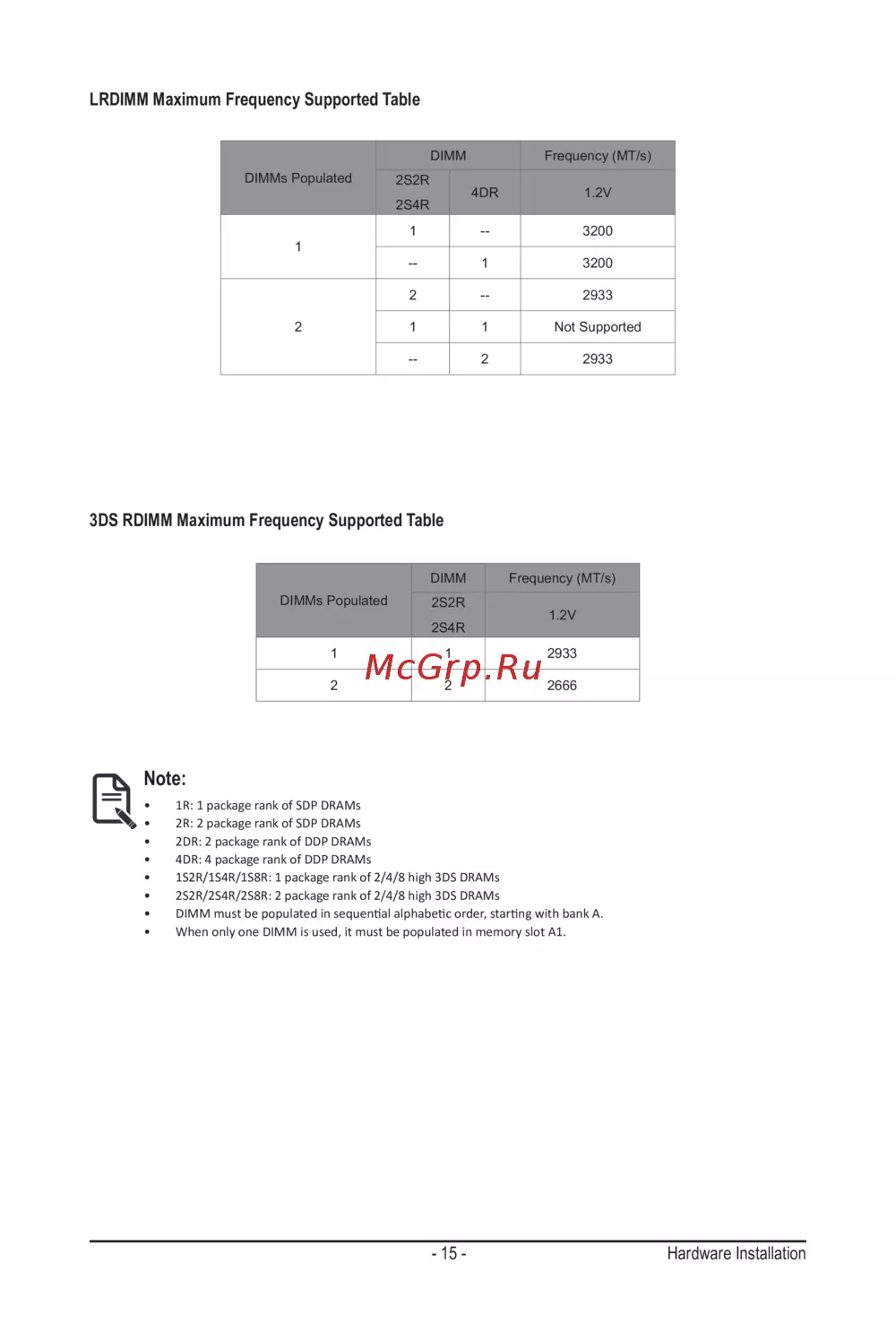

Gigabyte MZ32-AR0 (rev. 1.0) [15/146] 15 hardware installation

- 15 - Hardware Installation

Note:

• 1R: 1 package rank of SDP DRAMs

• 2R: 2 package rank of SDP DRAMs

• 2DR: 2 package rank of DDP DRAMs

• 4DR: 4 package rank of DDP DRAMs

• 1S2R/1S4R/1S8R: 1 package rank of 2/4/8 high 3DS DRAMs

• 2S2R/2S4R/2S8R: 2 package rank of 2/4/8 high 3DS DRAMs

• DIMM must be populated in sequenal alphabec order, starng with bank A.

• When only one DIMM is used, it must be populated in memory slot A1.

LRDIMM Maximum Frequency Supported Table

DIMMs Populated

DIMM Frequency (MT/s)

2S2R

2S4R

4DR 1.2V

1 -- 3200

-- 1 3200

2 -- 2933

1 1 Not Supported

-- 2 2933

3DS RDIMM Maximum Frequency Supported Table

DIMMs Populated

DIMM Frequency (MT/s)

2S2R

2S4R

1.2V

1 1 2933

2 2 2666
