Gigabyte MZ32-AR0 (rev. 1.0) [16/146] 5 installing and removing the m ssd module

Hardware Installation - 16 -

1-5 Installing and Removing the M.2 SSD Module

Follow the steps below to install an optional M.2 SSD module on your motherboard.

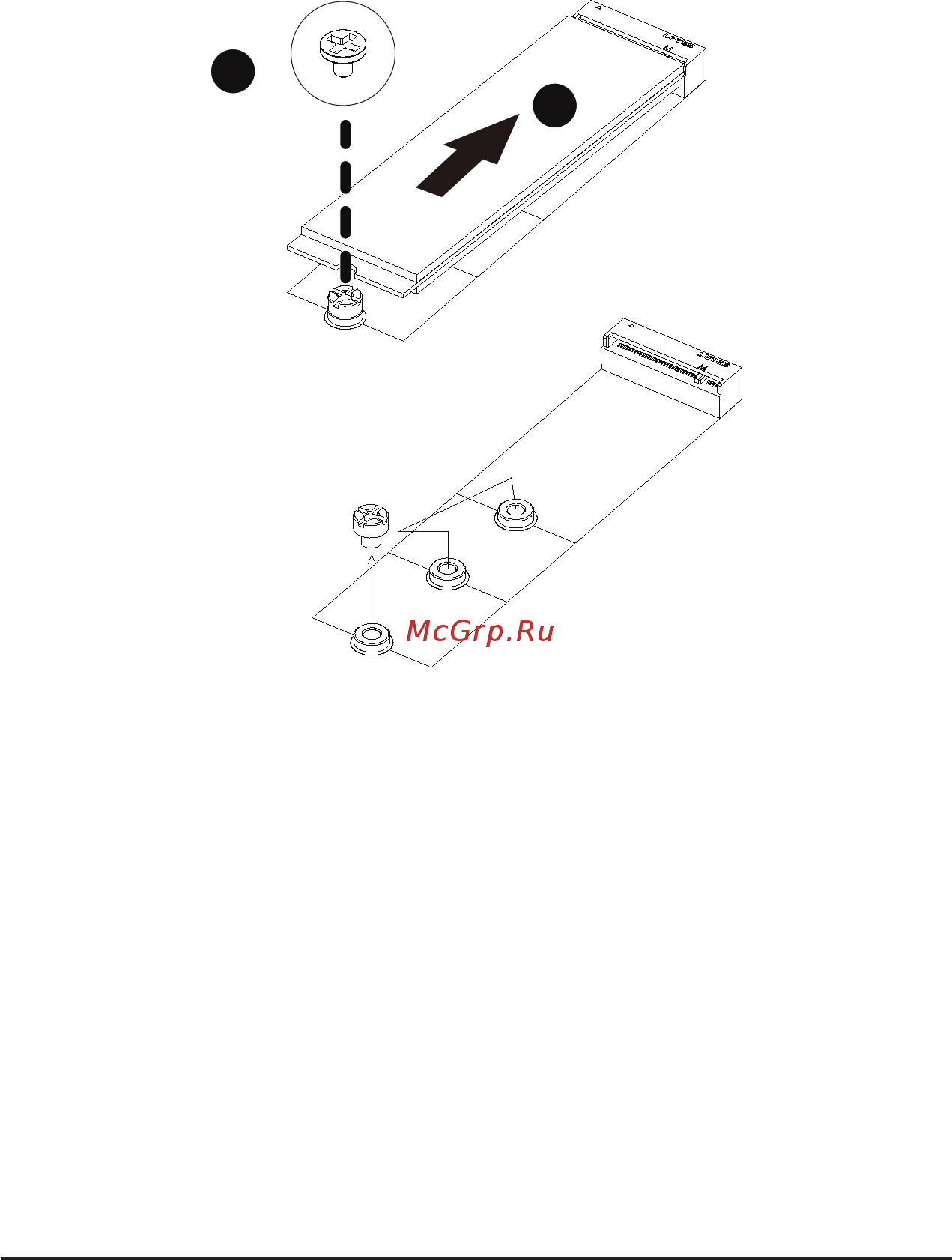

Step1. Insert the M.2 SSD module into the slot.

Step2. Secure it with the screw, tightening as necessary to fasten the M.2 SSD module in place.

2260

2242

2280
