Gigabyte MZ32-AR0 (rev. 1.0) [82/146] 3 3 1 5 security

BIOS Setup - 82 -

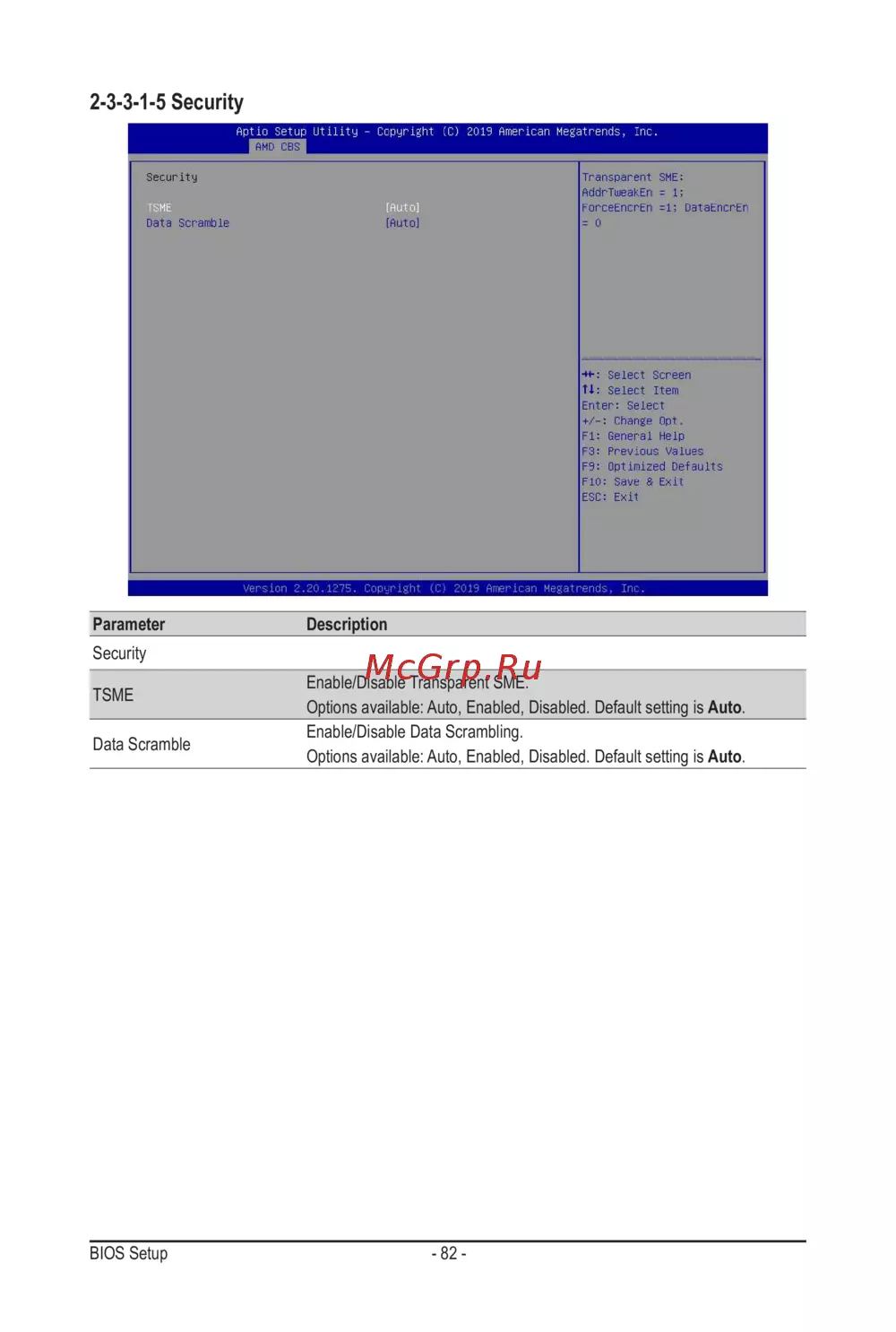

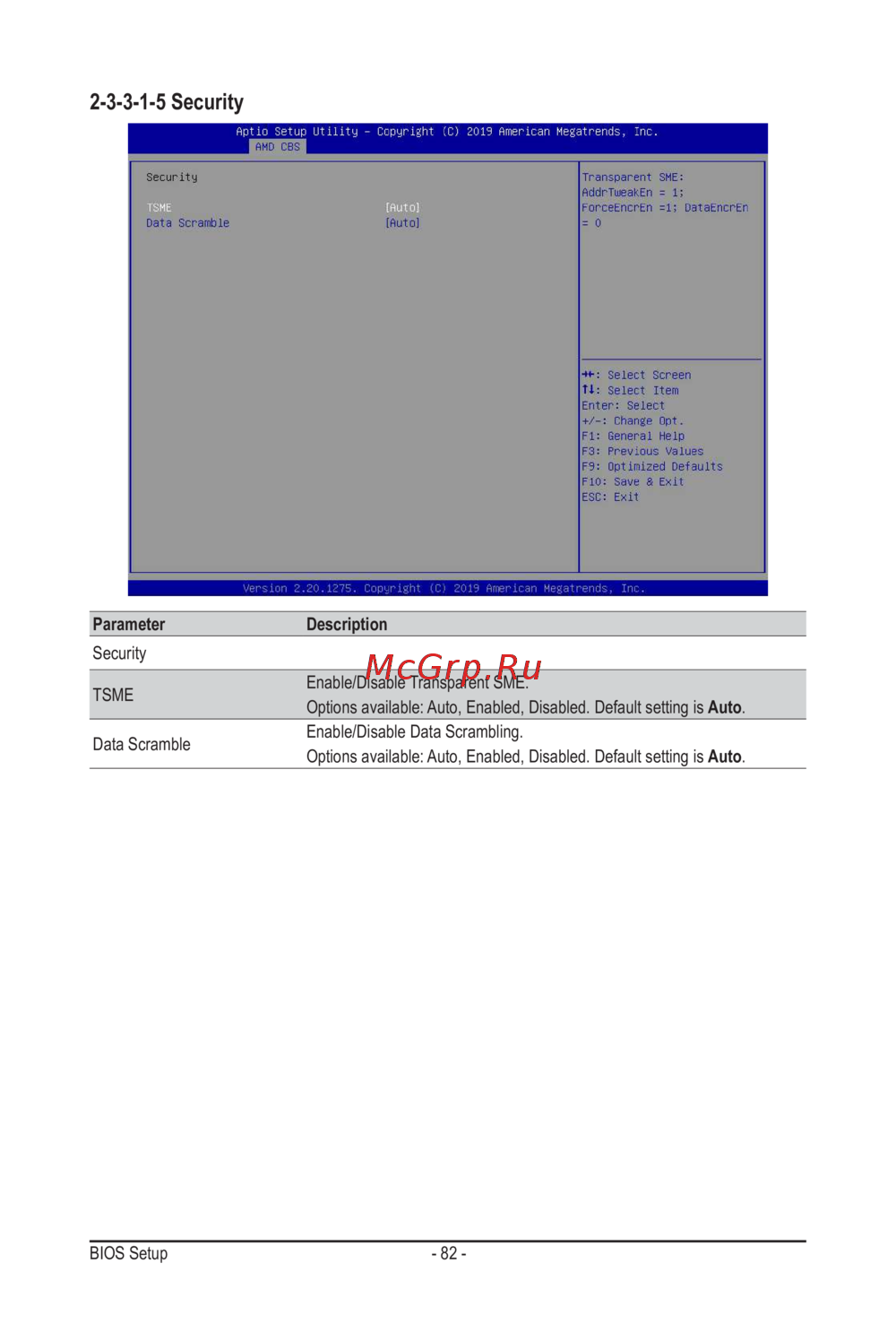

2-3-3-1-5 Security

Parameter Description

Security

TSME

Enable/Disable Transparent SME.

Options available: Auto, Enabled, Disabled. Default setting is Auto.

Data Scramble

Enable/Disable Data Scrambling.

Options available: Auto, Enabled, Disabled. Default setting is Auto.
