Gigabyte MZ32-AR0 (rev. 1.0) [71/146] 3 2 1 scrubber

- 71 - BIOS Setup

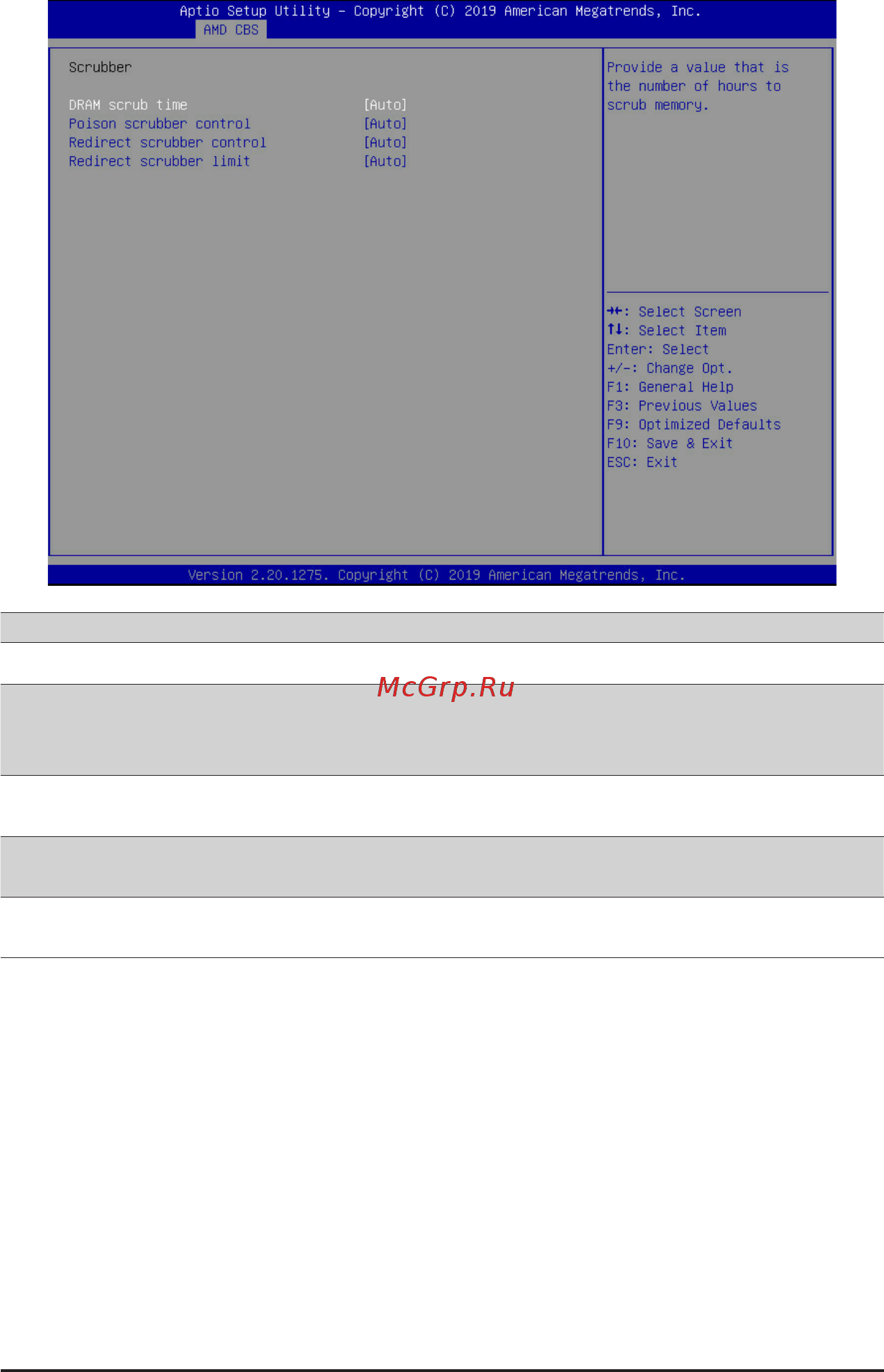

2-3-2-1 Scrubber

Parameter Description

Scrubber

DRAM scrub time

Provide a value that is the number of hours to scrub memory.

Options available: Auto, Disabled, 1 hour, 4 hours, 8 hours, 16 hours, 24

hours, 48 hours. Default setting is Auto.

Poison scrubber control

Enable/Disable the Poison scrubber control feature.

Options available: Auto, Enabled, Disabled. Default setting is Auto.

Redirect scrubber control

Enable/Disable the Redirect scrubber control feature.

Options available: Auto, Enabled, Disabled. Default setting is Auto.

Redirect scrubber limit

Sets the redirect scrubber limit.

Optionsavailable:Auto,2,4,8,Innite.DefaultsettingisAuto.
