BIOS Setup - 124 -

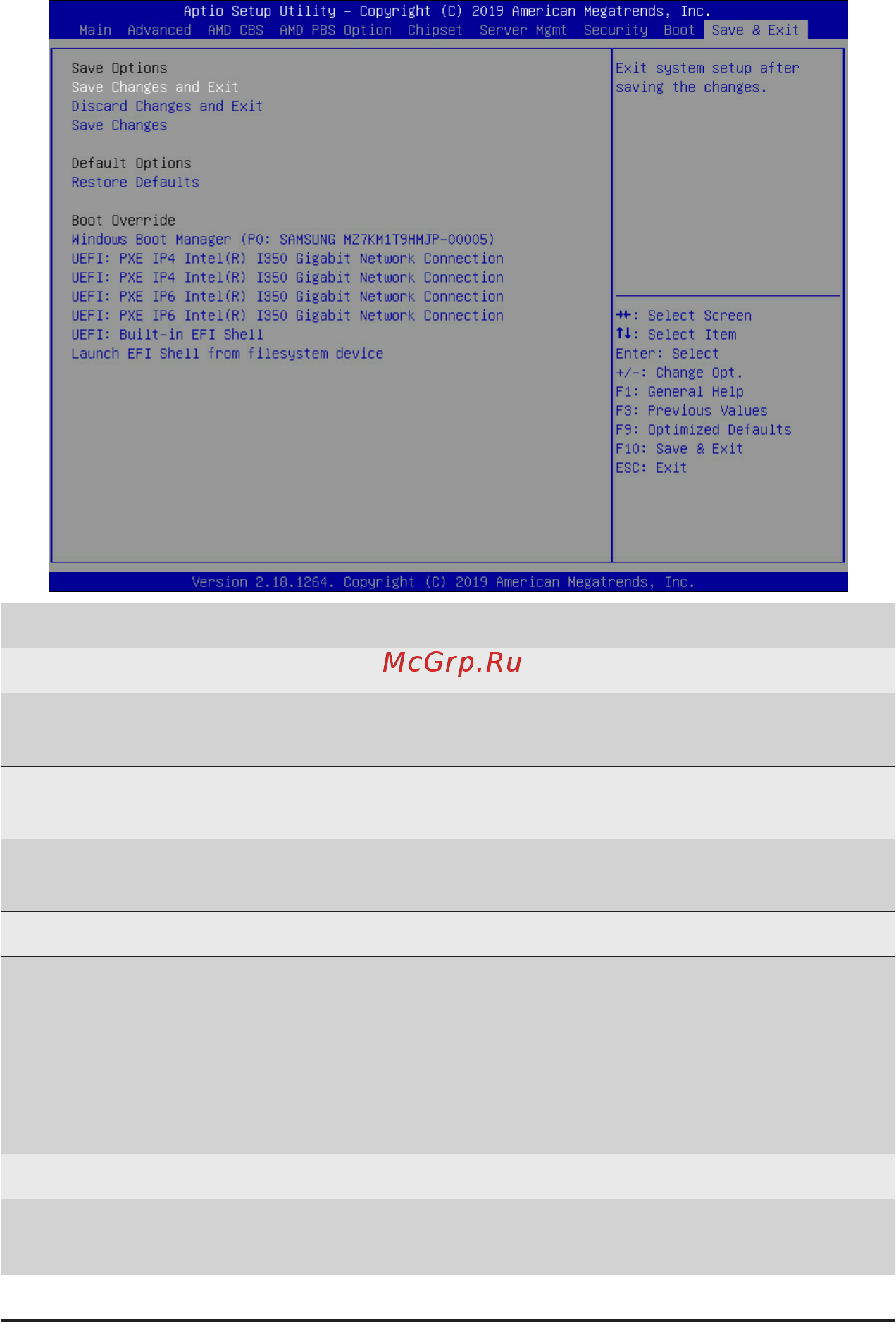

2-9 Save & Exit Menu
The Save & Exit menu displays the various options to quit from the BIOS setup. Highlight any of the exit
options then press <Enter>.
Parameter
Description
Save Options
Save Changes and Exit
Saves changes made and closes the BIOS setup.
Options available: Yes/No.
Discard Changes and Exit
Discards changes made and exits the BIOS setup.
Options available: Yes/No.
Save Changes
Saves changes done so far to any of the setup options.
Options available: Yes/No.
Default Options
Restore Defaults
Loads the default settings for all BIOS setup parameters. Setup Defaults
are quite demanding in terms of resources consumption. If you are using
low-speed memory chips or other kinds of low-performance components
and you choose to load these settings, the system might not function
properly.
Options available: Yes/No.
Boot Override
Press[Enter]tocongurethedeviceastheboot-updrive.
Launch EFI Shell from
lesystemdevice
AttemptstoLaunchEFIShellapplication(Shell.e)fromoneofthe
availablelesystemdevices.
