Gigabyte MZ32-AR0 (rev. 1.0) [14/146] 4 2 installing and removing a memory module

Hardware Installation - 14 -

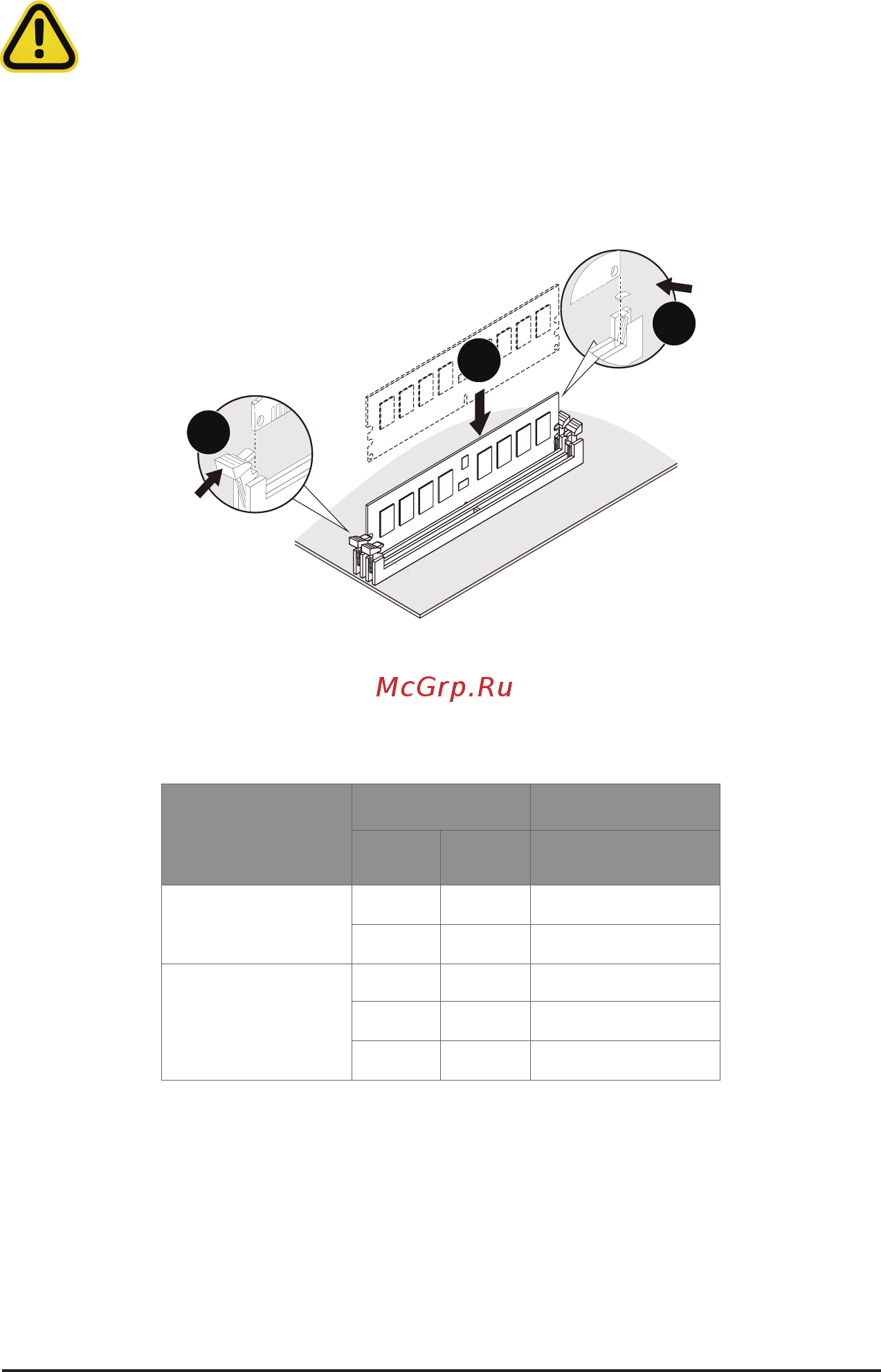

1-4-2 Installing and Removing a Memory Module

Before installing a memory module, make sure to turn off the computer and unplug the

power cord from the power outlet to prevent damage to the memory module.

Be sure to install DDR4 DIMMs on to this motherboard.

Follow these instructions to install a DIMM module:

1. Insert the DIMM memory module vertically into the DIMM slot and push it down.

2. Close the plastic clip at both edges of the DIMM slots to lock the DIMM module.

3. Reverse the installation steps when you want to remove the DIMM module.

DIMMs Populated

DIMM Frequency (MT/s)

2DR

1.2V

1 -- 3200

-- 1 3200

2 -- 2933

1 1 2933

-- 2 2933

1-4-3 DIMM Population Table

RDIMM Maximum Frequency Supported Table
