Gigabyte MZ32-AR0 (rev. 1.0) [114/146] 6 2 view fru information

BIOS Setup - 114 -

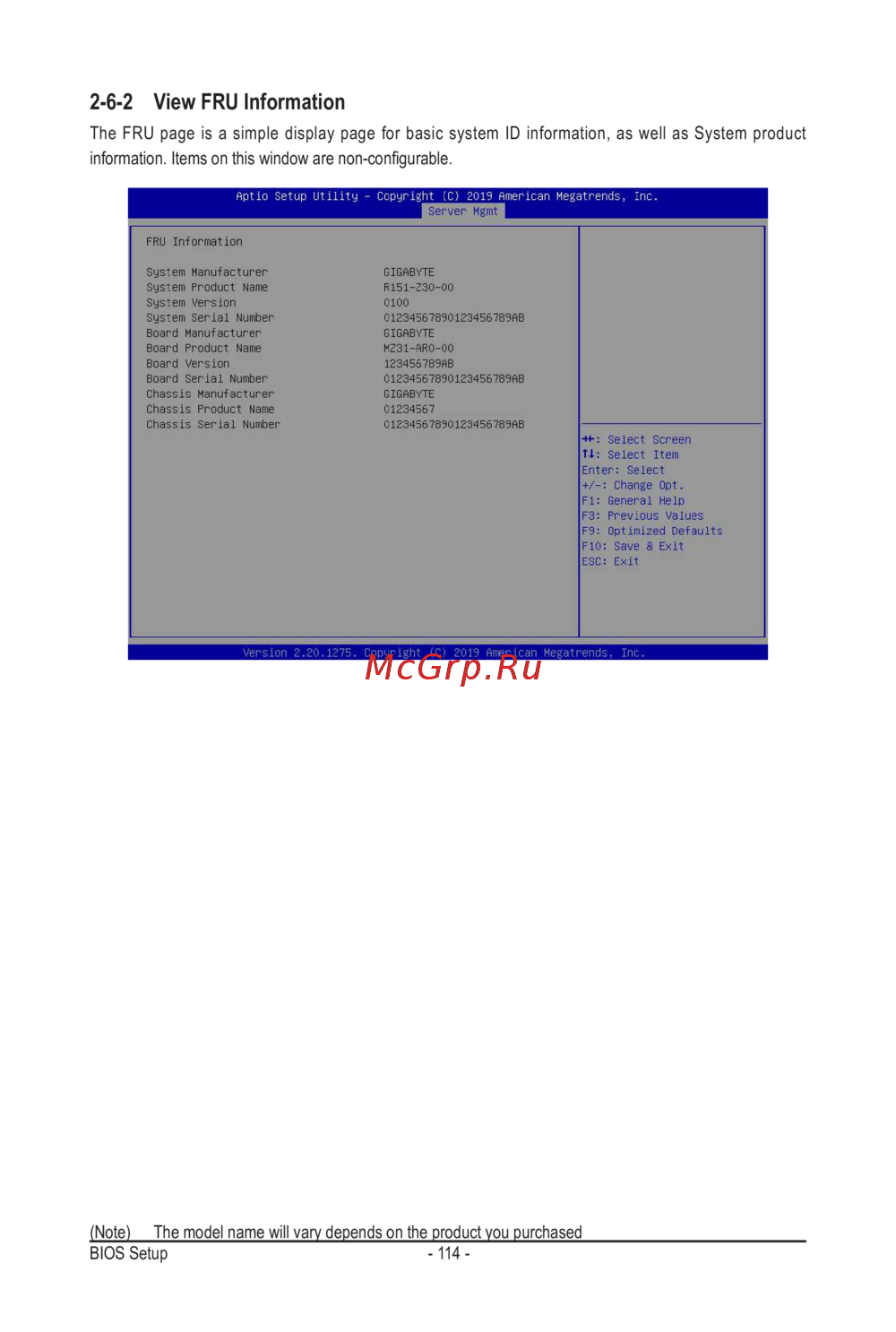

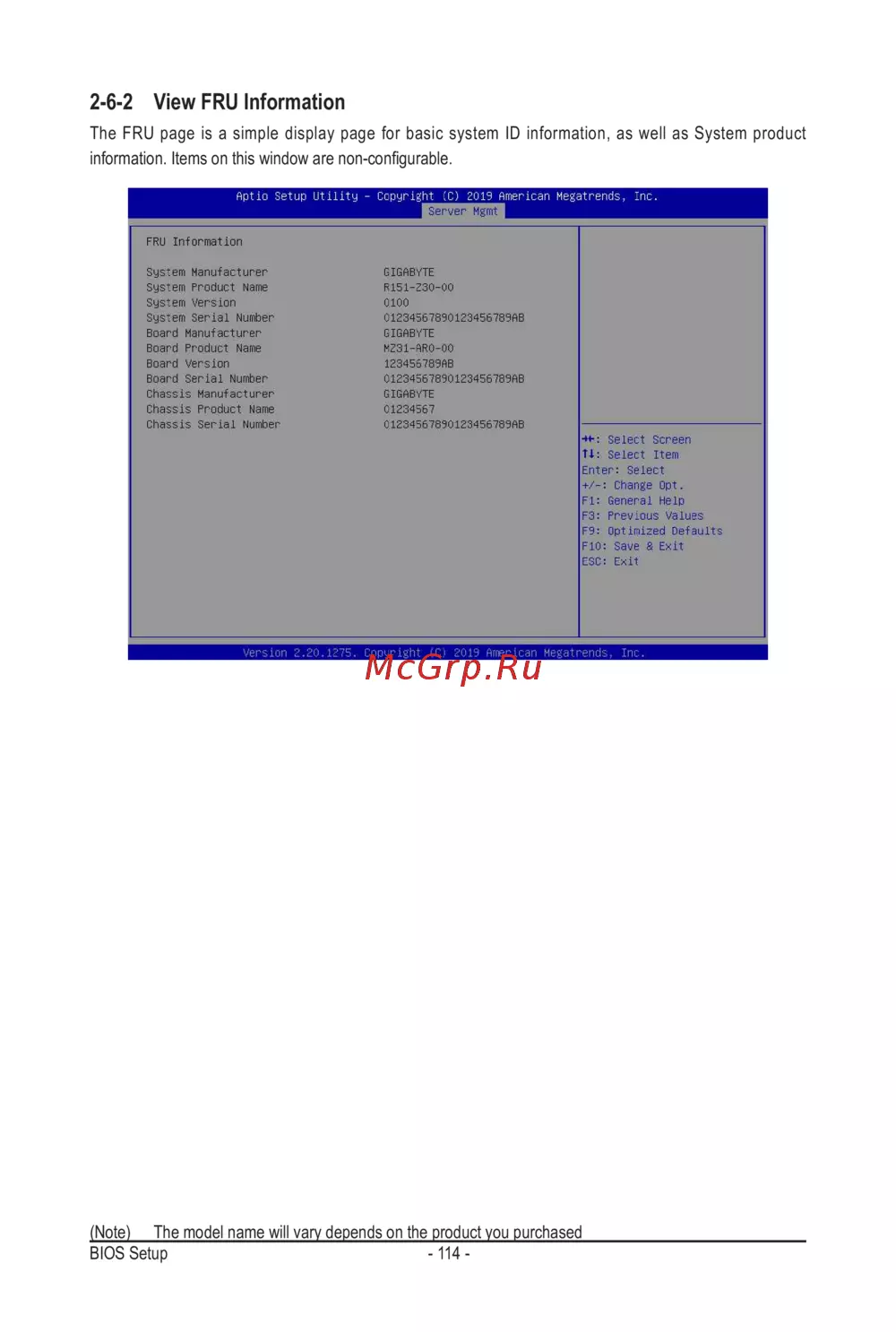

2-6-2 View FRU Information

The FRU page is a simple display page for basic system ID information, as well as System product

information.Itemsonthiswindowarenon-congurable.

(Note) The model name will vary depends on the product you purchased
