Gigabyte MZ32-AR0 (rev. 1.0) [32/146] 2 advanced menu

BIOS Setup - 32 -

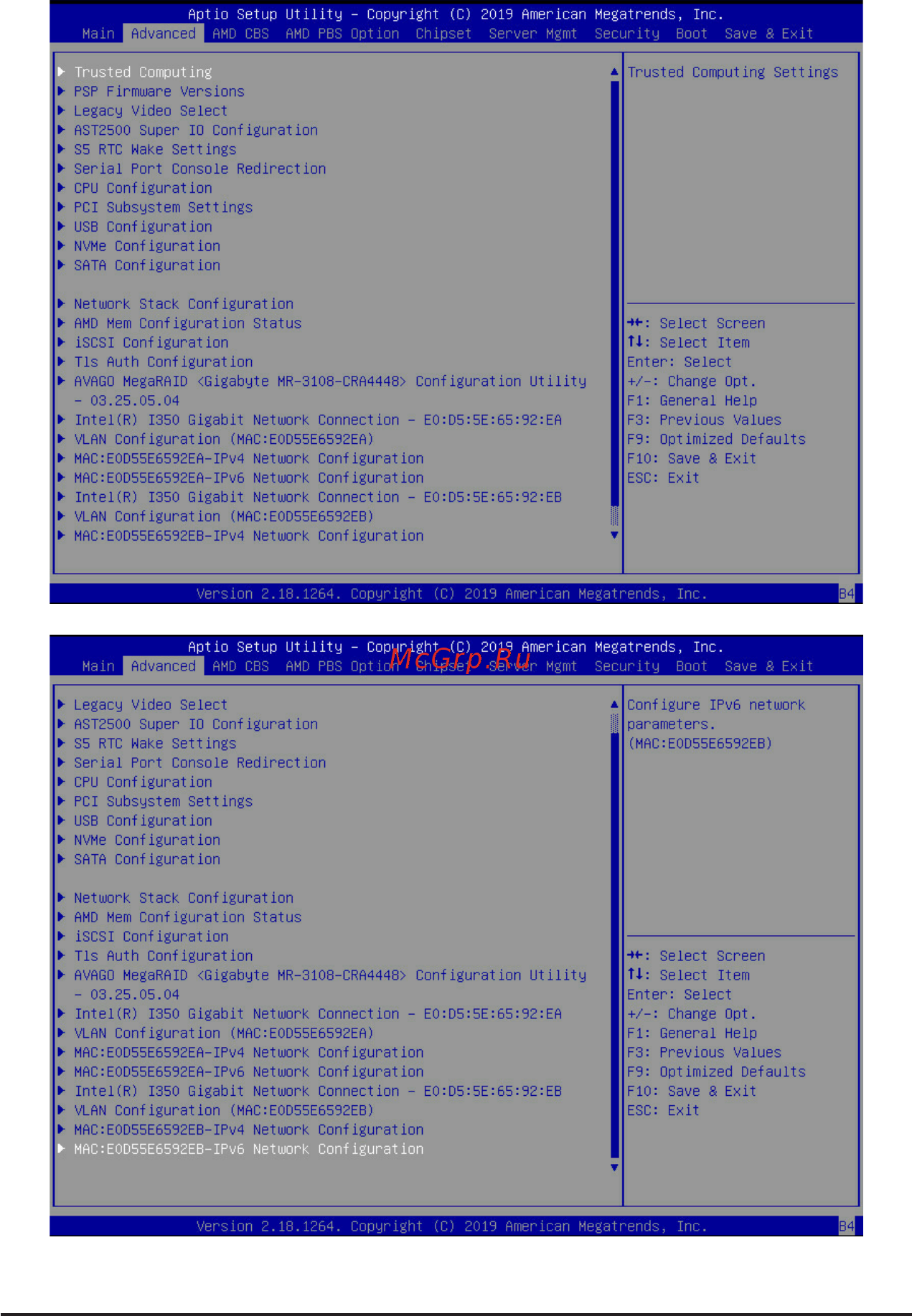

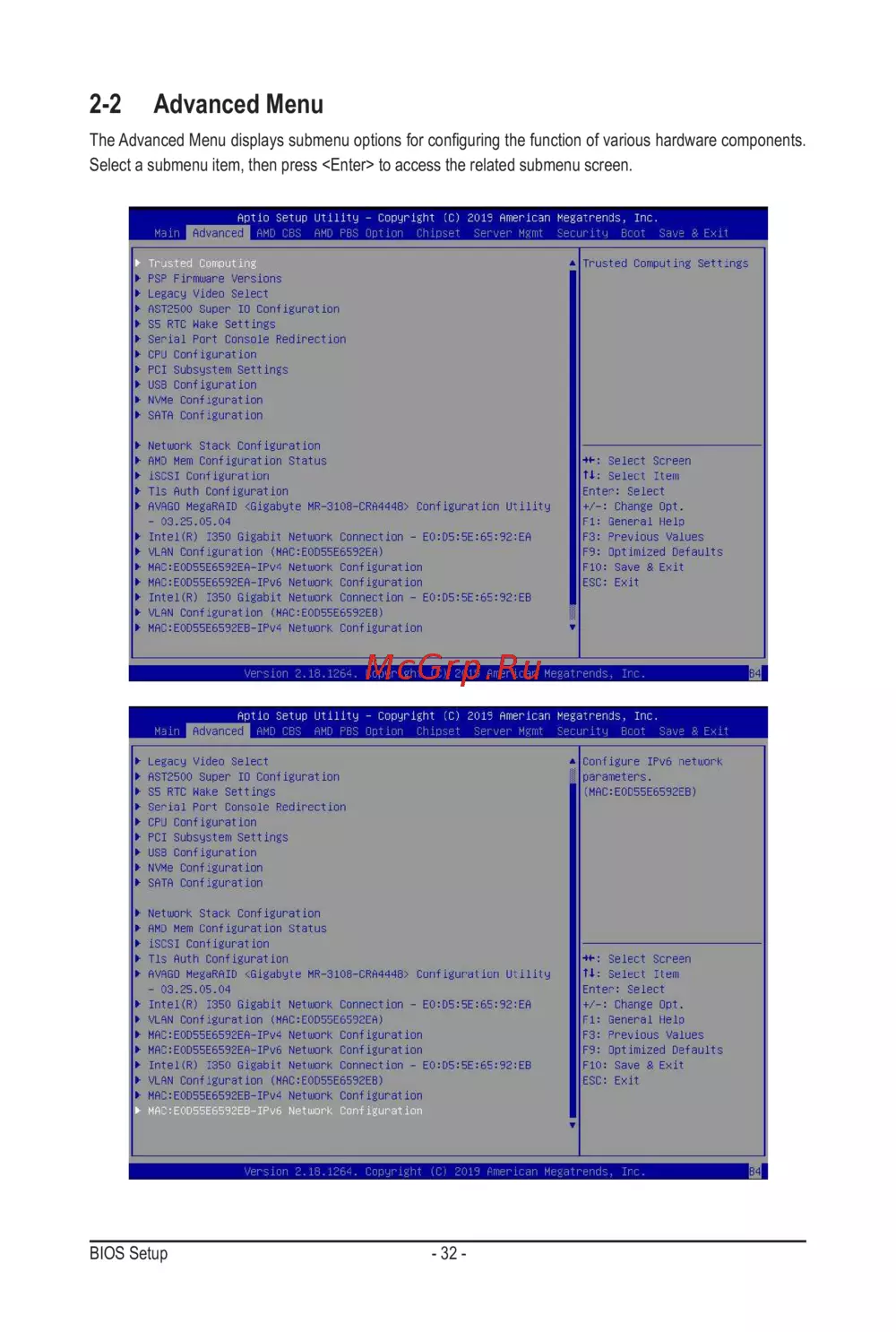

2-2 Advanced Menu

TheAdvancedMenudisplayssubmenuoptionsforconguringthefunctionofvarioushardwarecomponents.

Select a submenu item, then press <Enter> to access the related submenu screen.
