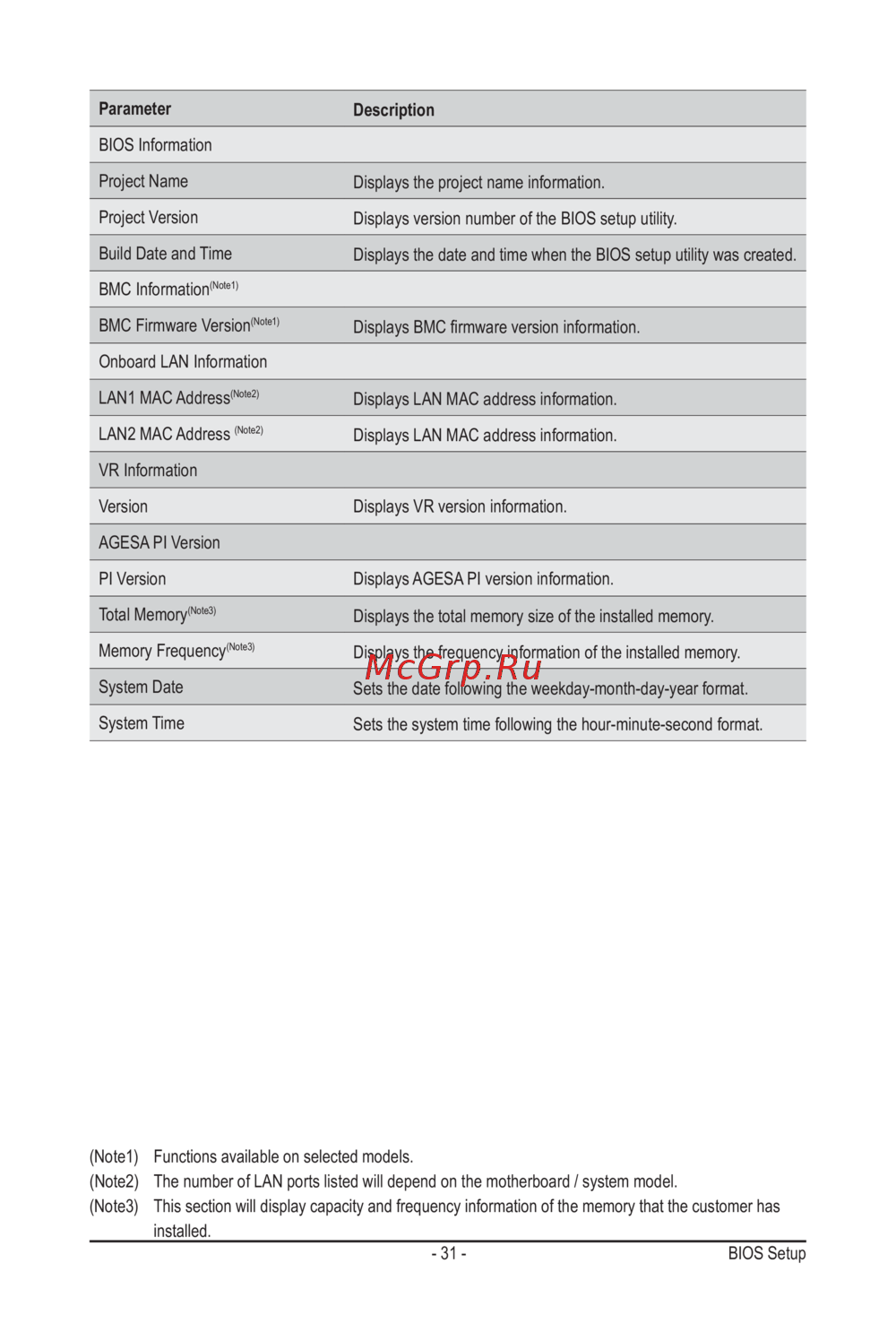

- 31 - BIOS Setup
Parameter
Description
BIOS Information
ProjectName
Displaystheprojectnameinformation.
ProjectVersion
Displays version number of the BIOS setup utility.
Build Date and Time
Displays the date and time when the BIOS setup utility was created.
BMC Information
(Note1)
BMC Firmware Version
(Note1)
DisplaysBMCrmwareversioninformation.
Onboard LAN Information
LAN1 MAC Address
(Note2)
Displays LAN MAC address information.
LAN2 MAC Address
(Note2)
Displays LAN MAC address information.
VR Information
Version Displays VR version information.
AGESA PI Version
PI Version Displays AGESA PI version information.
Total Memory
(Note3)
Displays the total memory size of the installed memory.
Memory Frequency
(Note3)
Displays the frequency information of the installed memory.
System Date
Sets the date following the weekday-month-day-year format.
System Time
Sets the system time following the hour-minute-second format.
(Note1) Functions available on selected models.
(Note2) The number of LAN ports listed will depend on the motherboard / system model.
(Note3) This section will display capacity and frequency information of the memory that the customer has
installed.
