Gigabyte MZ32-AR0 (rev. 1.0) [44/146] 2 7 cpu configuration

BIOS Setup - 44 -

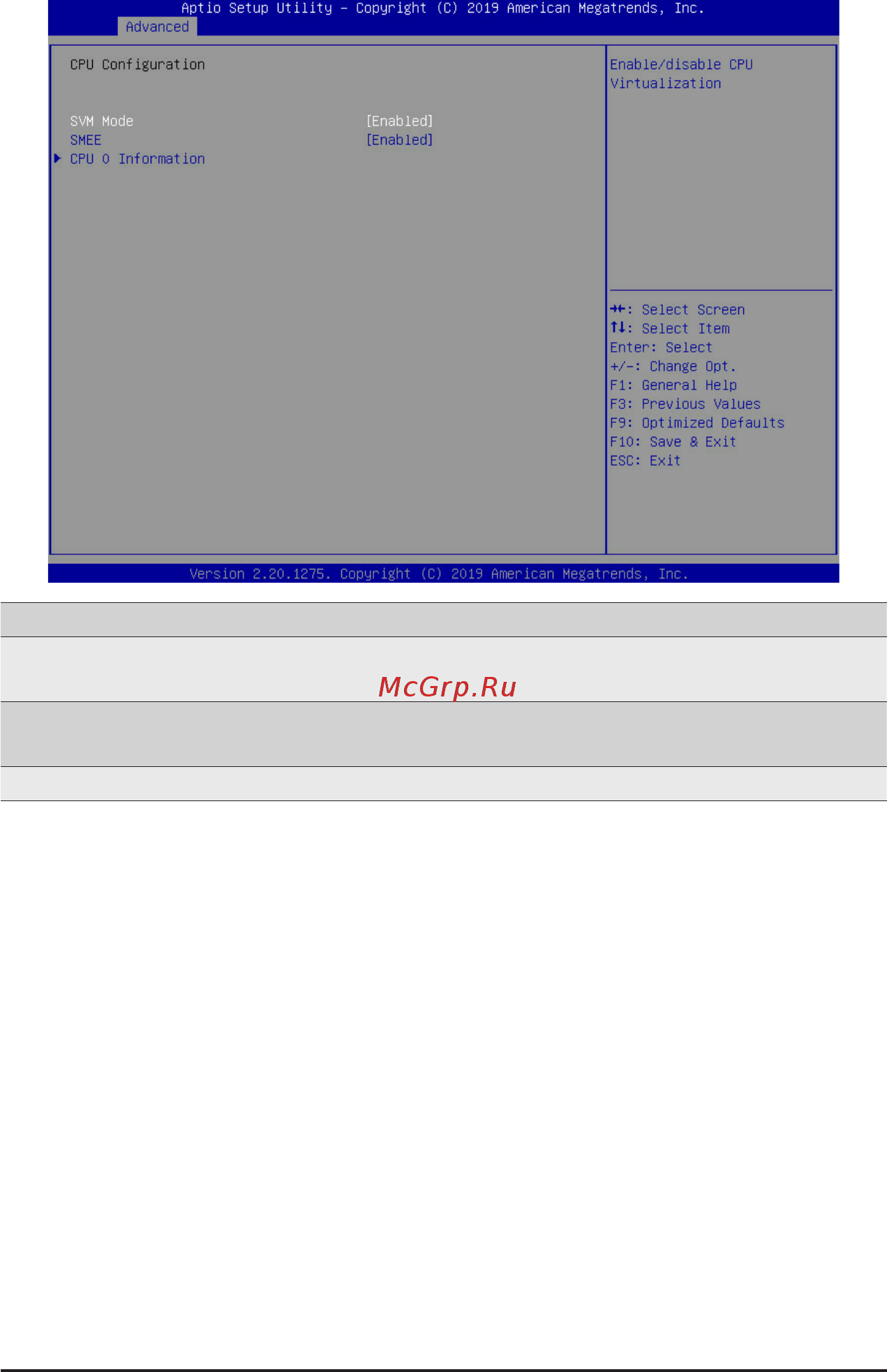

2-2-7 CPU Conguration

Parameter

Description

SVM Mode

Enable/Disable the CPU Virtualization.

Options available: Enabled/Disabled. Default setting is Enabled.

SMEE

Controls the Secure Memory Encryption Enable (SMEE) function.

Options available: Enabled/Disabled. Default setting is Enabled.

CPU 0 Information

Press [Enter] to view the memory information related to CPU 0.
