Hardware Installation - 18 -

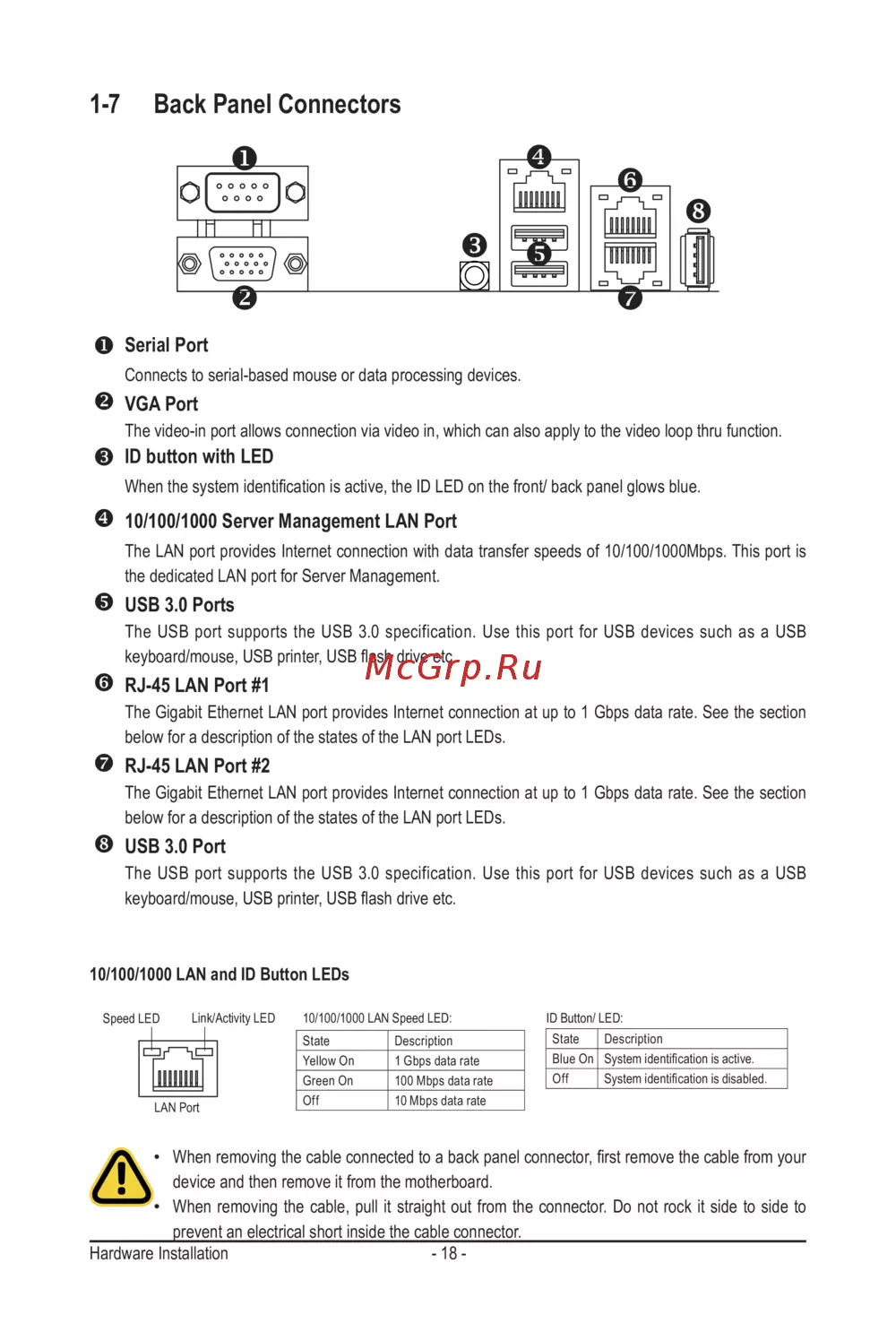

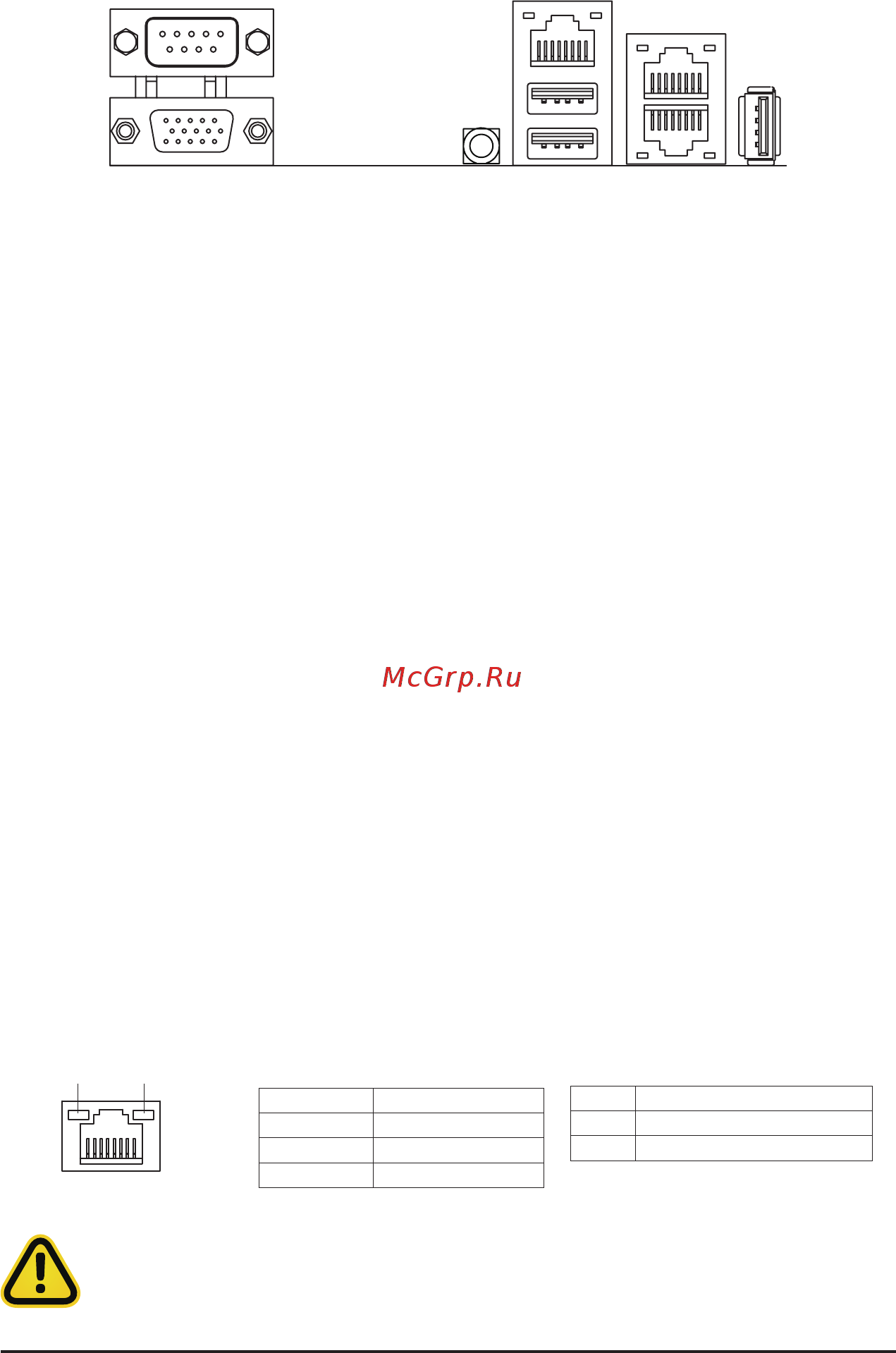

1-7 Back Panel Connectors
u
Serial Port
Connects to serial-based mouse or data processing devices.
v
VGA Port
The video-in port allows connection via video in, which can also apply to the video loop thru function.
w
ID button with LED
Whenthesystemidenticationisactive,theIDLEDonthefront/backpanelglowsblue.
x
10/100/1000 Server Management LAN Port
The LAN port provides Internet connection with data transfer speeds of 10/100/1000Mbps. This port is
the dedicated LAN port for Server Management.
y
USB 3.0 Ports
The USB port supports the USB 3.0 specification. Use this port for USB devices such as a USB
keyboard/mouse,USBprinter,USBashdriveetc.
z
RJ-45 LAN Port #1
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. See the section
below for a description of the states of the LAN port LEDs.
{
RJ-45 LAN Port #2
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. See the section
below for a description of the states of the LAN port LEDs.
|
USB 3.0 Port
The USB port supports the USB 3.0 specification. Use this port for USB devices such as a USB
keyboard/mouse,USBprinter,USBashdriveetc.
v
w
x
y
z
{
u
|
10/100/1000 LAN and ID Button LEDs
Link/Activity LED
Speed LED
LAN Port
ID Button/ LED:10/100/1000 LAN Speed LED:
State Description
Yellow On 1 Gbps data rate
Green On 100 Mbps data rate
Off 10 Mbps data rate
State Description
Blue On Systemidenticationisactive.
Off Systemidenticationisdisabled.
•
Whenremovingthecableconnectedtoabackpanelconnector,rstremovethecablefromyour
device and then remove it from the motherboard.
•
When removing the cable, pull it straight out from the connector. Do not rock it side to side to
prevent an electrical short inside the cable connector.
