Gigabyte MZ32-AR0 (rev. 1.0) [75/146] 3 3 umc common options

- 75 - BIOS Setup

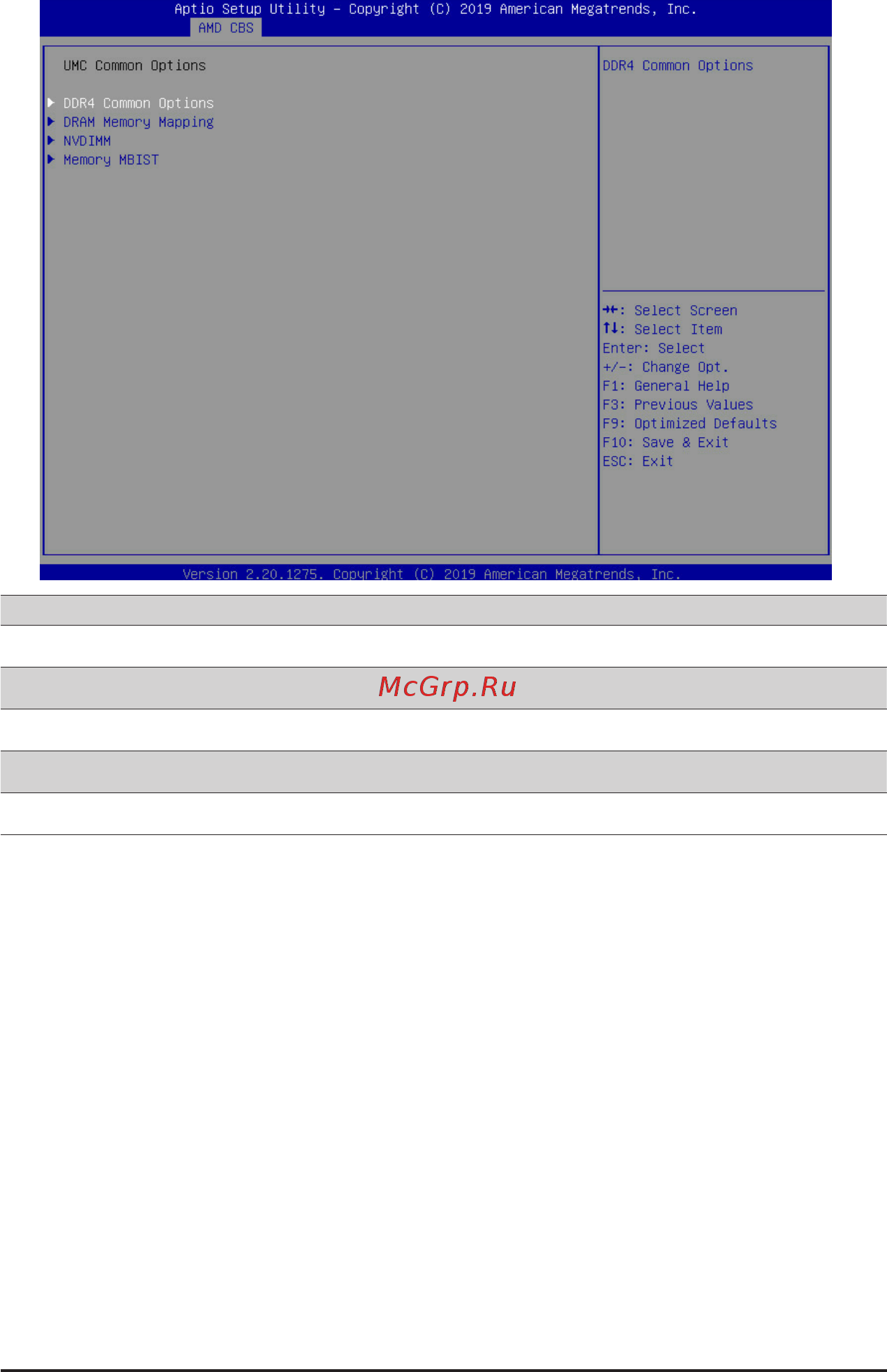

2-3-3 UMC Common Options

Parameter Description

UMC Common Options

DDR4 Common Options Press[Enter]forcongurationofadvanceditems.

DRAM Memory Mapping Press[Enter]forcongurationofadvanceditems.

NVDIMM Press[Enter]forcongurationofadvanceditems.

Memory MBIST Press[Enter]forcongurationofadvanceditems.
