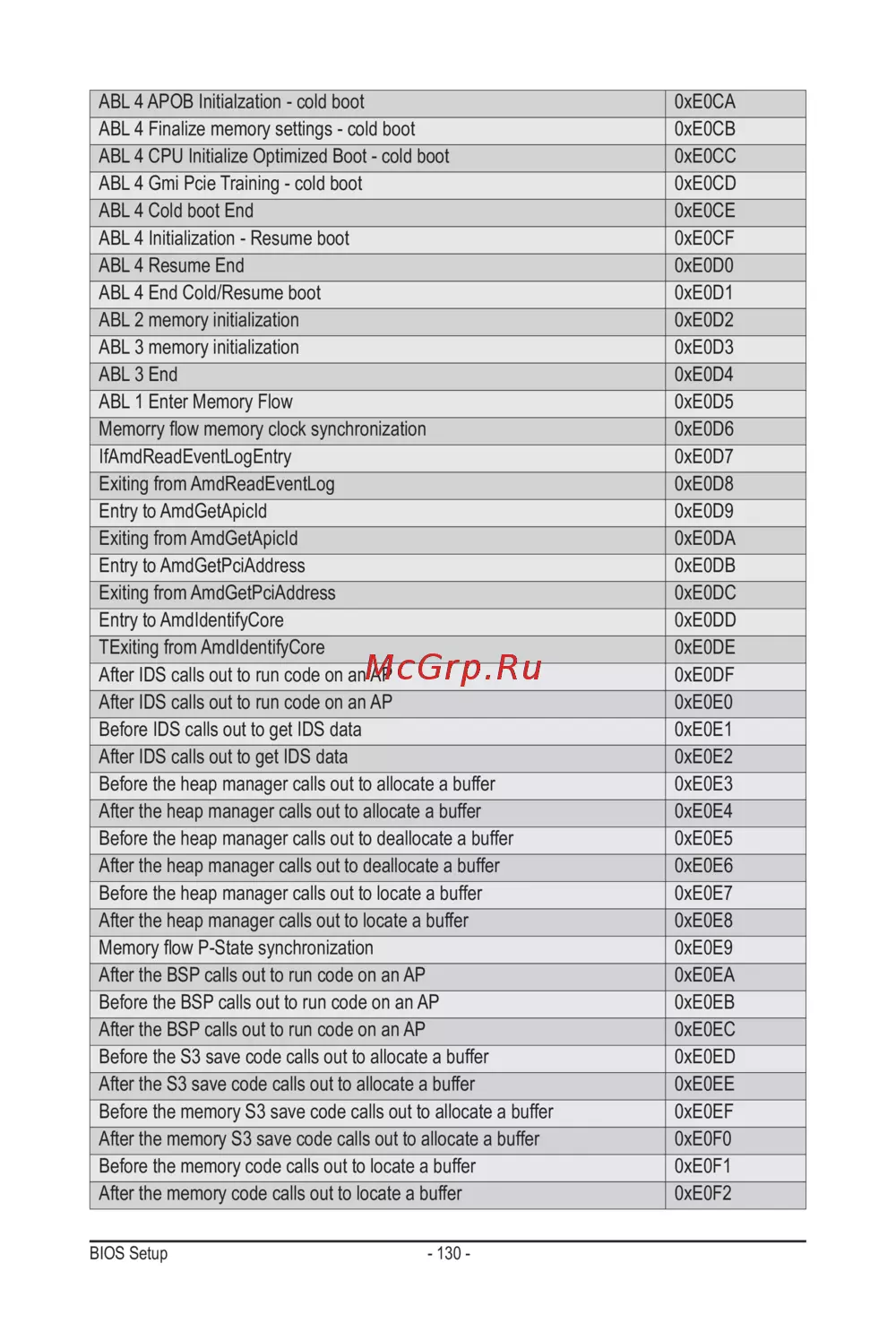

BIOS Setup - 130 -
ABL 4 APOB Initialzation - cold boot 0xE0CA
ABL 4 Finalize memory settings - cold boot 0xE0CB
ABL 4 CPU Initialize Optimized Boot - cold boot 0xE0CC
ABL 4 Gmi Pcie Training - cold boot 0xE0CD
ABL 4 Cold boot End 0xE0CE
ABL 4 Initialization - Resume boot 0xE0CF
ABL 4 Resume End 0xE0D0
ABL 4 End Cold/Resume boot 0xE0D1
ABL 2 memory initialization 0xE0D2
ABL 3 memory initialization 0xE0D3
ABL 3 End 0xE0D4
ABL 1 Enter Memory Flow 0xE0D5
Memorryowmemoryclocksynchronization 0xE0D6
IfAmdReadEventLogEntry 0xE0D7
Exiting from AmdReadEventLog 0xE0D8
Entry to AmdGetApicId 0xE0D9
Exiting from AmdGetApicId 0xE0DA
Entry to AmdGetPciAddress 0xE0DB
Exiting from AmdGetPciAddress 0xE0DC
Entry to AmdIdentifyCore 0xE0DD
TExiting from AmdIdentifyCore 0xE0DE
After IDS calls out to run code on an AP 0xE0DF
After IDS calls out to run code on an AP 0xE0E0
Before IDS calls out to get IDS data 0xE0E1
After IDS calls out to get IDS data 0xE0E2
Before the heap manager calls out to allocate a buffer 0xE0E3
After the heap manager calls out to allocate a buffer 0xE0E4
Before the heap manager calls out to deallocate a buffer 0xE0E5
After the heap manager calls out to deallocate a buffer 0xE0E6
Before the heap manager calls out to locate a buffer 0xE0E7
After the heap manager calls out to locate a buffer 0xE0E8
MemoryowP-Statesynchronization 0xE0E9
After the BSP calls out to run code on an AP 0xE0EA
Before the BSP calls out to run code on an AP 0xE0EB
After the BSP calls out to run code on an AP 0xE0EC
Before the S3 save code calls out to allocate a buffer 0xE0ED
After the S3 save code calls out to allocate a buffer 0xE0EE
Before the memory S3 save code calls out to allocate a buffer 0xE0EF
After the memory S3 save code calls out to allocate a buffer 0xE0F0
Before the memory code calls out to locate a buffer 0xE0F1
After the memory code calls out to locate a buffer 0xE0F2
