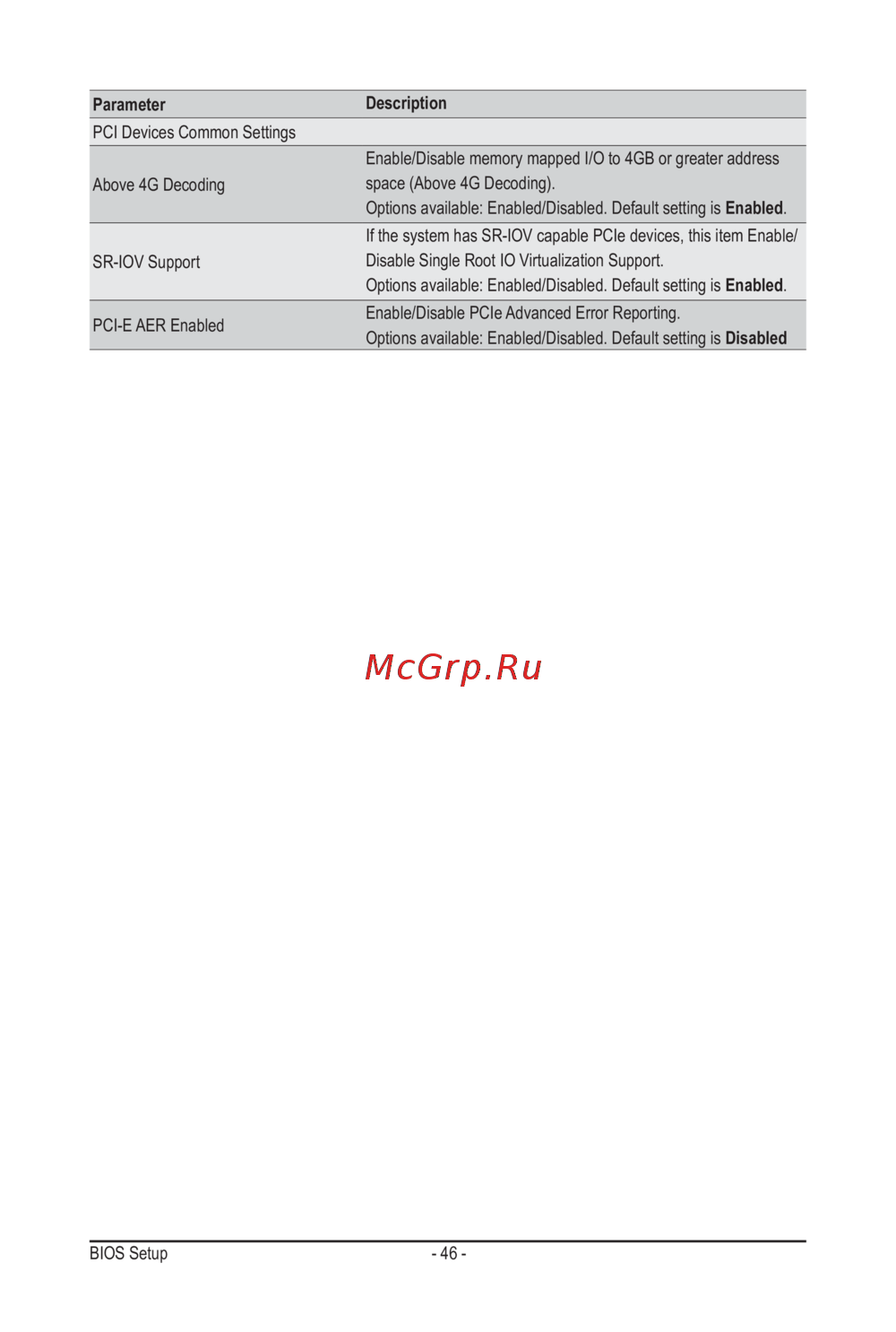

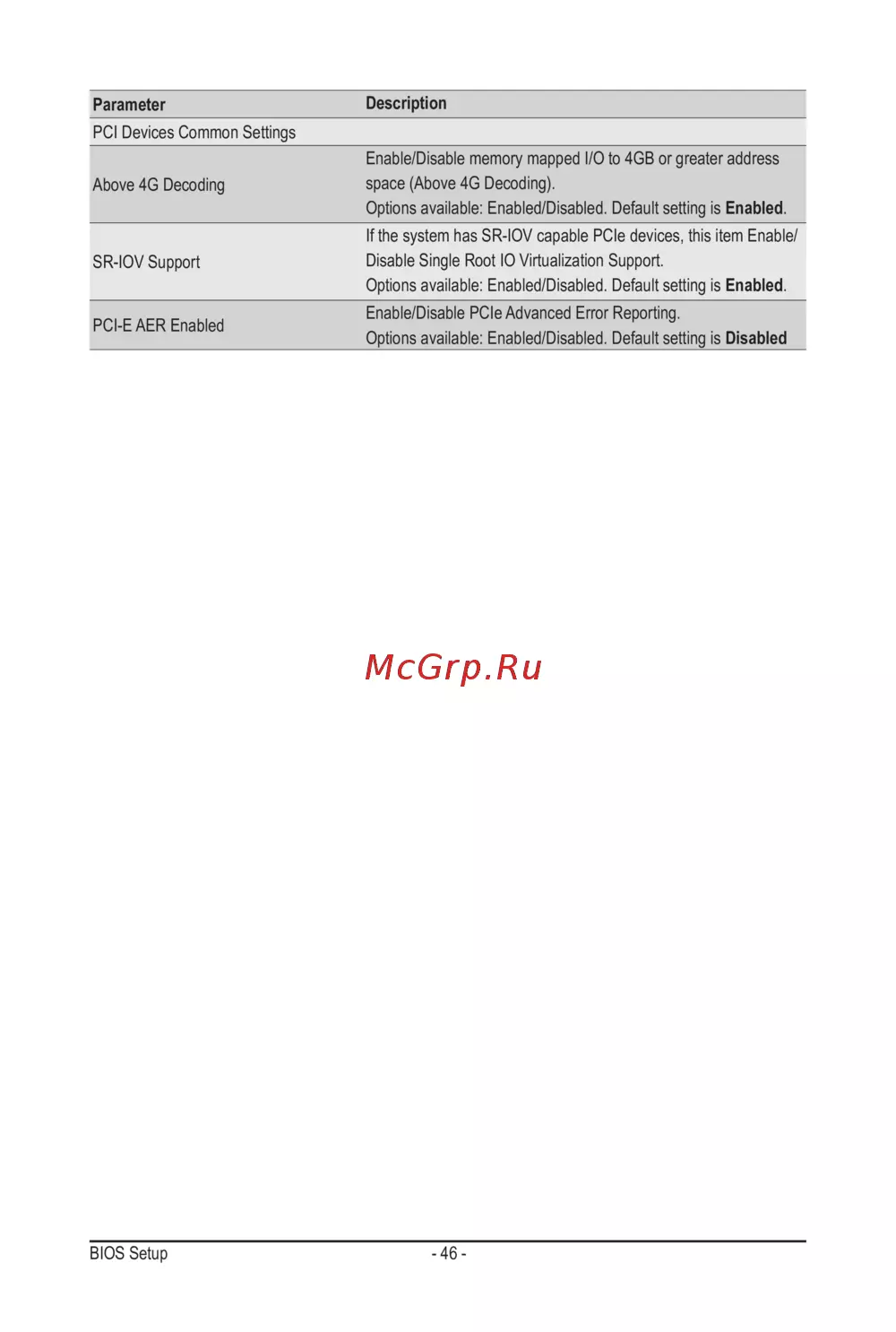

BIOS Setup - 46 -

Parameter

Description

PCI Devices Common Settings

Above 4G Decoding

Enable/Disable memory mapped I/O to 4GB or greater address

space (Above 4G Decoding).

Options available: Enabled/Disabled. Default setting is Enabled.

SR-IOV Support

If the system has SR-IOV capable PCIe devices, this item Enable/

Disable Single Root IO Virtualization Support.

Options available: Enabled/Disabled. Default setting is Enabled.

PCI-E AER Enabled

Enable/Disable PCIe Advanced Error Reporting.

Options available: Enabled/Disabled. Default setting is Disabled
