BIOS Setup - 56 -

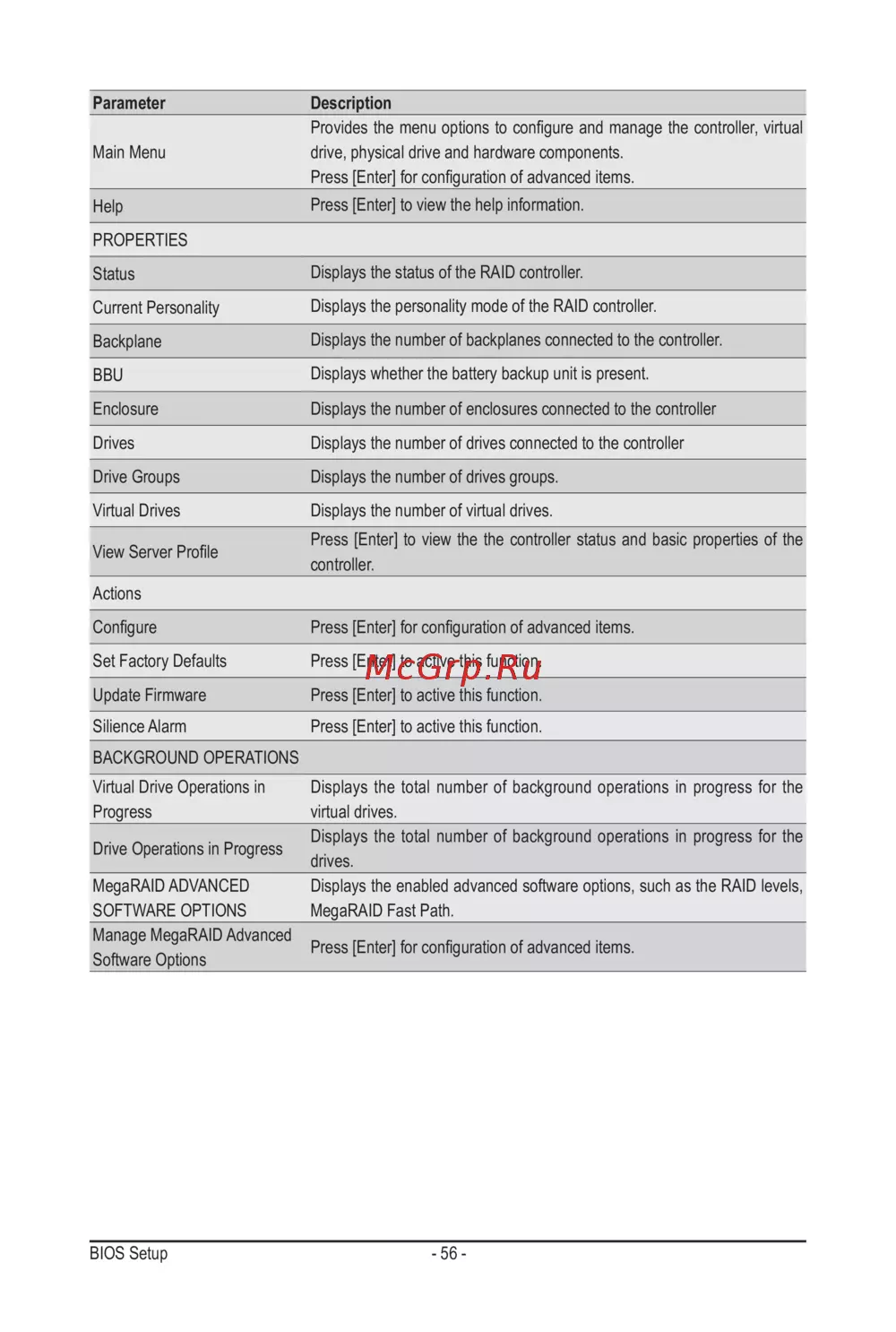

Parameter Description
Main Menu
Providesthemenuoptionstocongureandmanagethecontroller,virtual
drive, physical drive and hardware components.
Press[Enter]forcongurationofadvanceditems.
Help
Press [Enter] to view the help information.
PROPERTIES
Status
Displays the status of the RAID controller.
Current Personality
Displays the personality mode of the RAID controller.
Backplane
Displays the number of backplanes connected to the controller.
BBU
Displays whether the battery backup unit is present.
Enclosure Displays the number of enclosures connected to the controller
Drives Displays the number of drives connected to the controller
Drive Groups Displays the number of drives groups.
Virtual Drives Displays the number of virtual drives.
ViewServerProle
Press [Enter] to view the the controller status and basic properties of the
controller.
Actions
Congure Press[Enter]forcongurationofadvanceditems.
Set Factory Defaults Press [Enter] to active this function.
Update Firmware Press [Enter] to active this function.
Silience Alarm Press [Enter] to active this function.
BACKGROUND OPERATIONS
Virtual Drive Operations in
Progress
Displays the total number of background operations in progress for the
virtual drives.
Drive Operations in Progress
Displays the total number of background operations in progress for the
drives.
MegaRAID ADVANCED
SOFTWARE OPTIONS
Displays the enabled advanced software options, such as the RAID levels,
MegaRAID Fast Path.
Manage MegaRAID Advanced
Software Options
Press[Enter]forcongurationofadvanceditems.
