SG-500 VPN Security Gateway User’s Manual

- 158 -

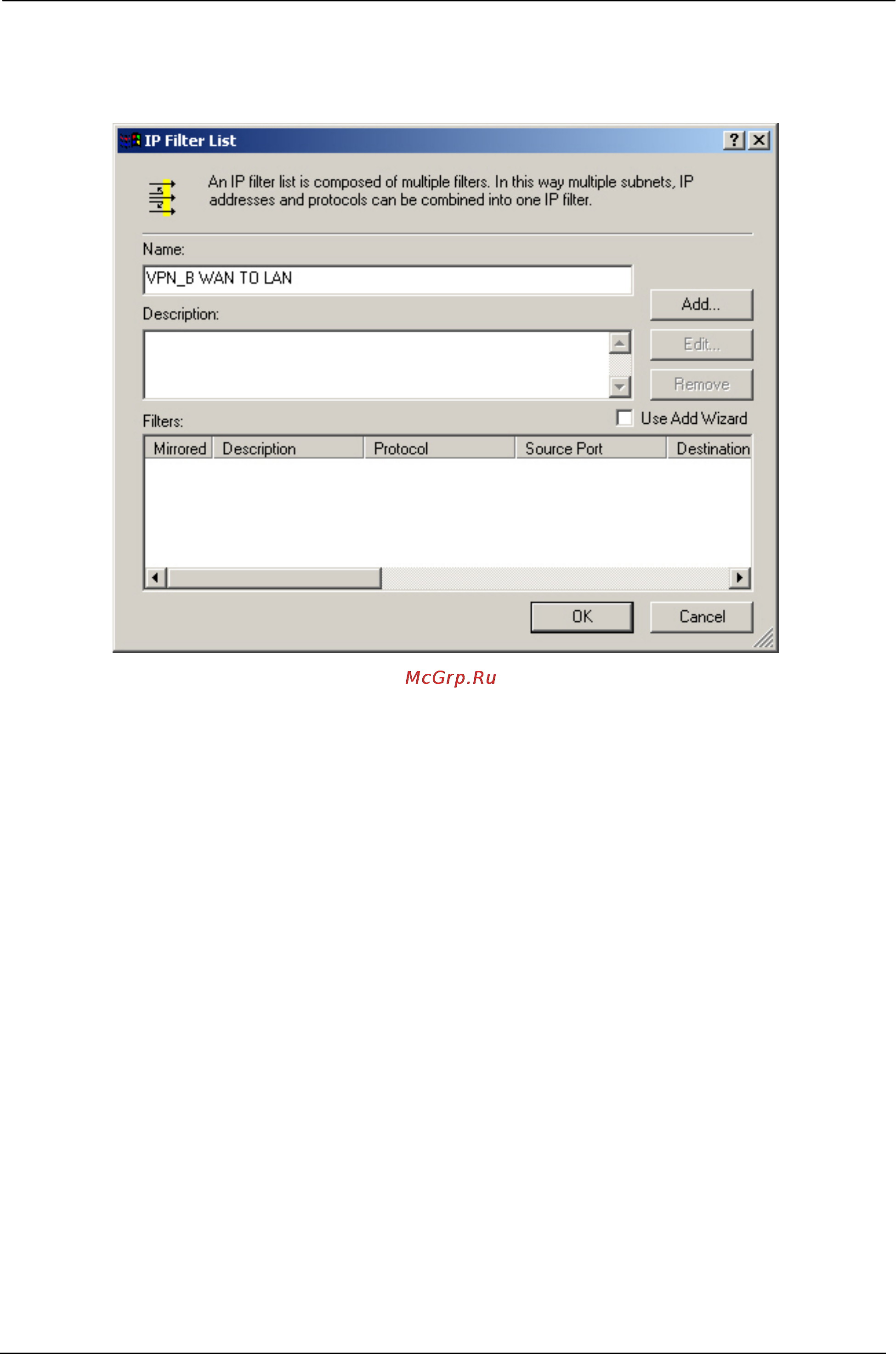

STEP 25 . In IP Filter List, do not select Use Add Wizard. Modify the Name into VPN_B WAN TO LAN, click

Add.

IP Filter List
