SG-500 VPN Security Gateway User’s Manual

- 159 -

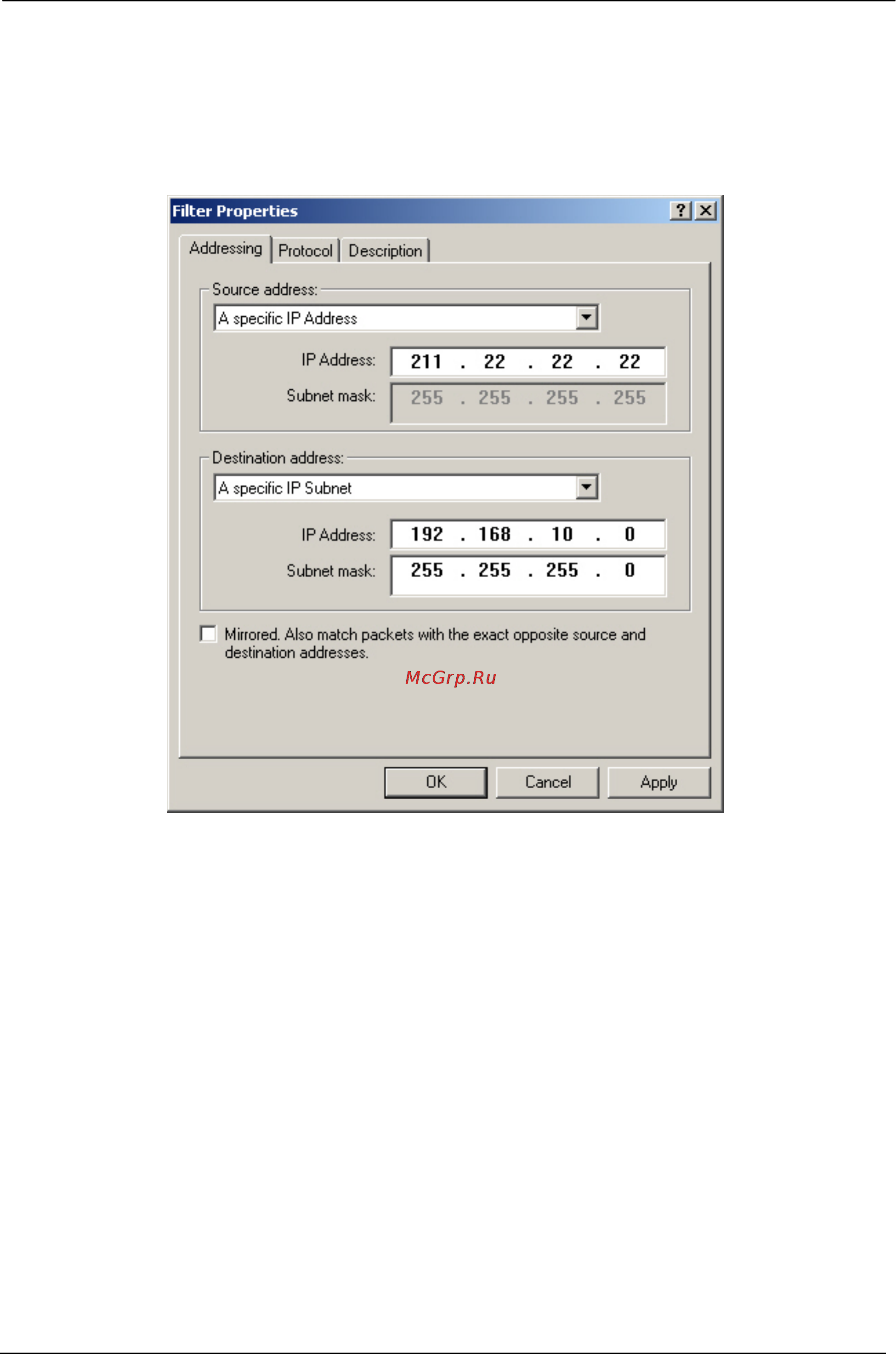

STEP 26 . In Filter Properties Æ Source address Æ A specific IP Address, enter B Company’s WAN IP

address 211.22.22.22 , Subnet mask 255.255.255.255 . In Destination address Æ A specific IP

Subnet, enter A Company‘s LAN IP address 192.168.10.0, subnet mask 255.255.255.0. Do not select

Mirrored. Also match packets with the exact opposite source and destination addresses.

Filter Properties
