SG-500 VPN Security Gateway User’s Manual

- 161 -

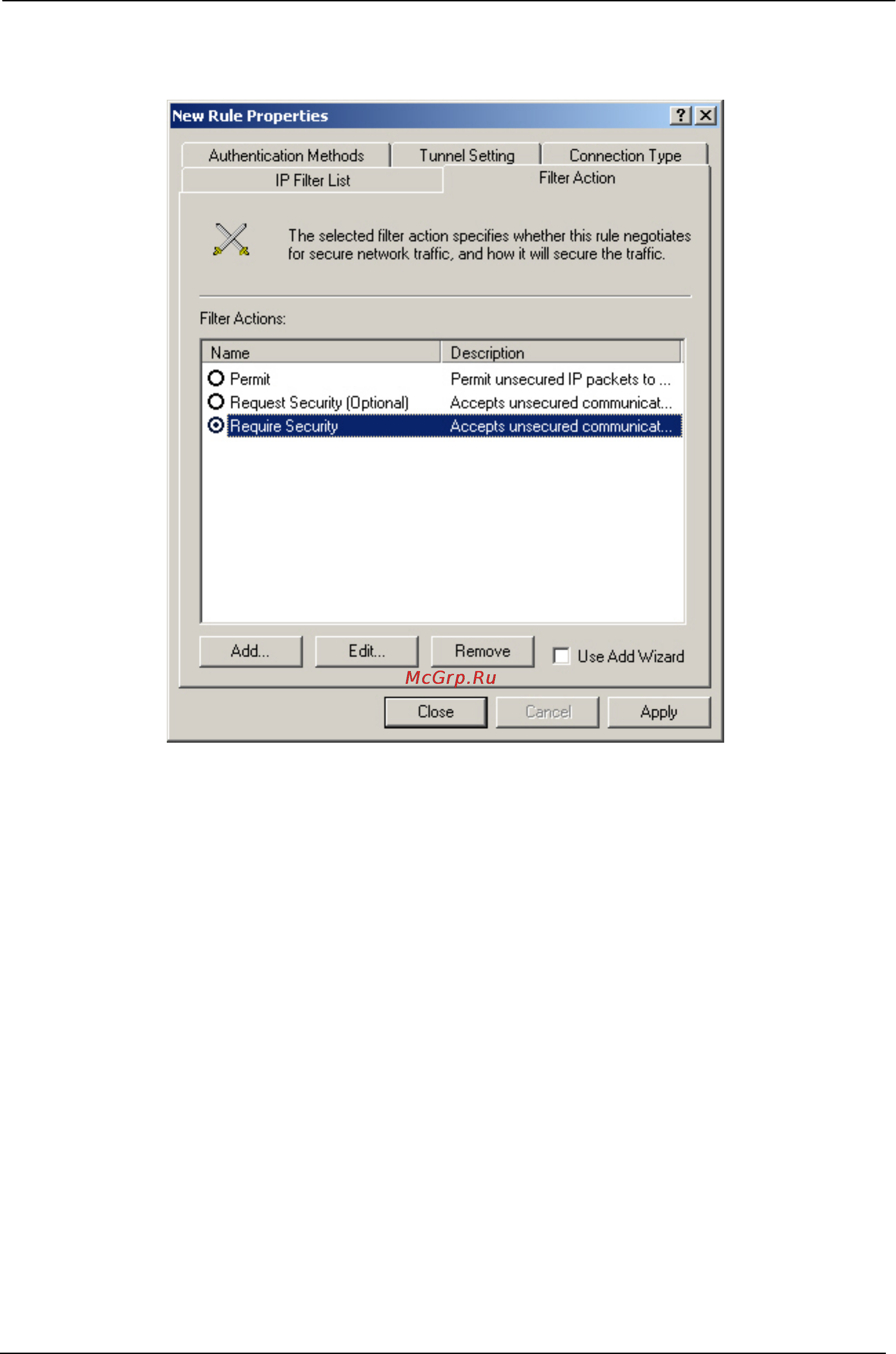

STEP 28 . In New Rule Properties Æ Filter Action Æ Require Security. Click Edit.

Filter Action setting
