SG-500 VPN Security Gateway User’s Manual

- 162 -

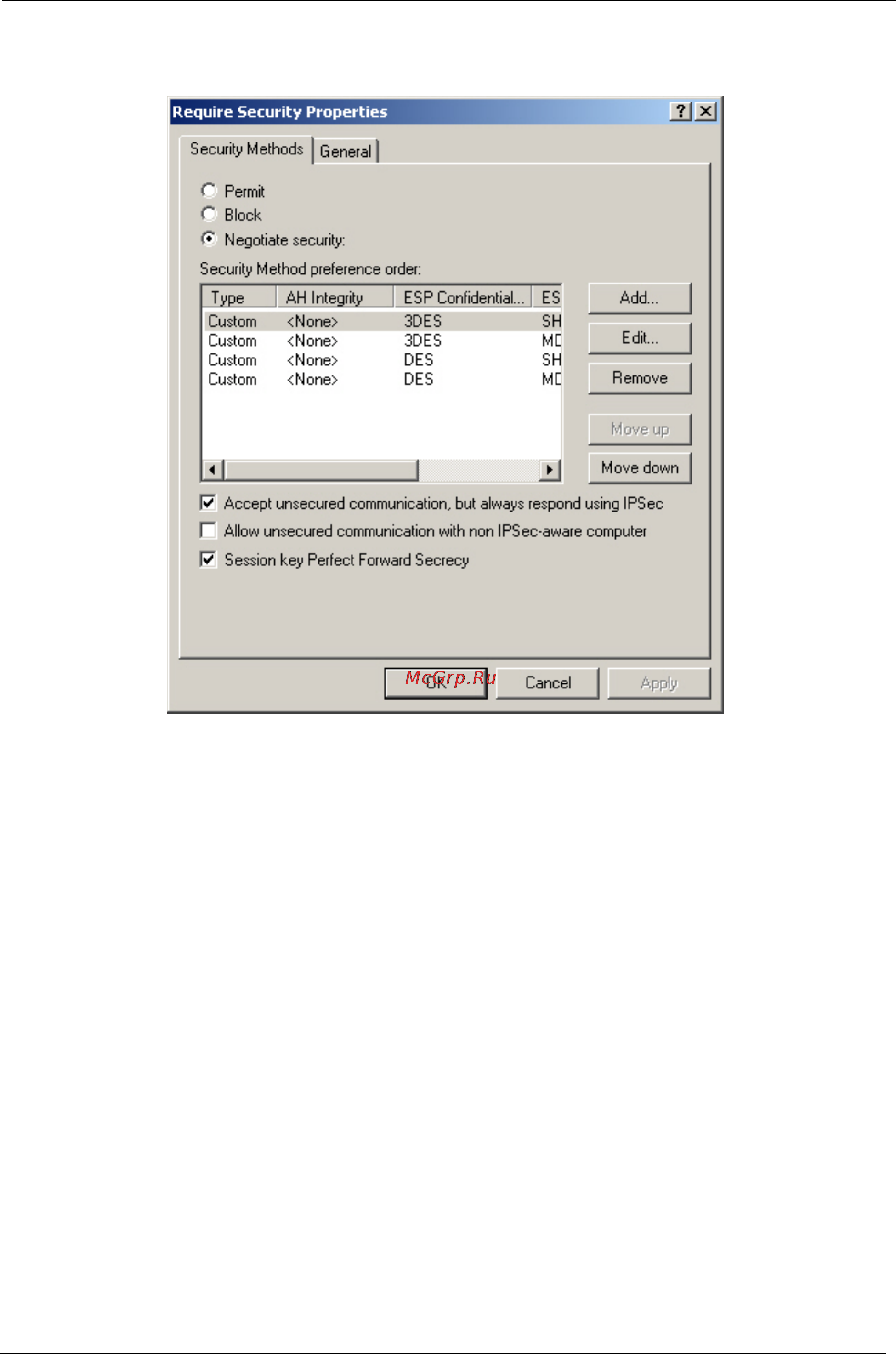

STEP 29 . In Require Security Properties, select Session Key Perfect Forward Secrecy.

Select Session Key Perfect Forward Secrecy
