SG-500 VPN Security Gateway User’s Manual

- 181 -

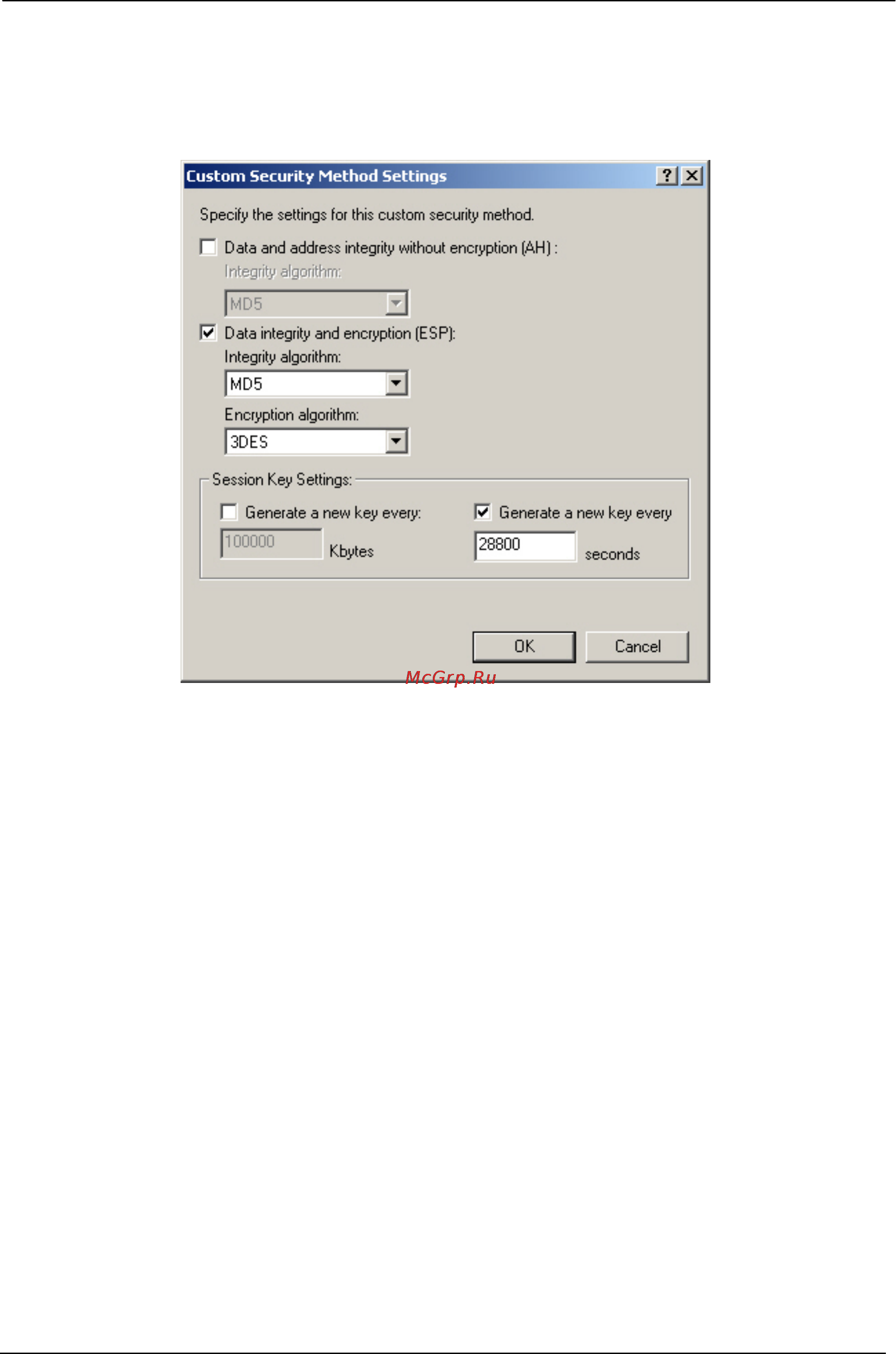

STEP 48 . Select Data integrity and encryption (ESP). Integrity algorithm, select MD5. Encryption

algorithm, select 3DES. Also select Generate a new key every, enter 28800 seconds. Click OK to back

to New Rule Properties.
