SG-500 VPN Security Gateway User’s Manual

- 182 -

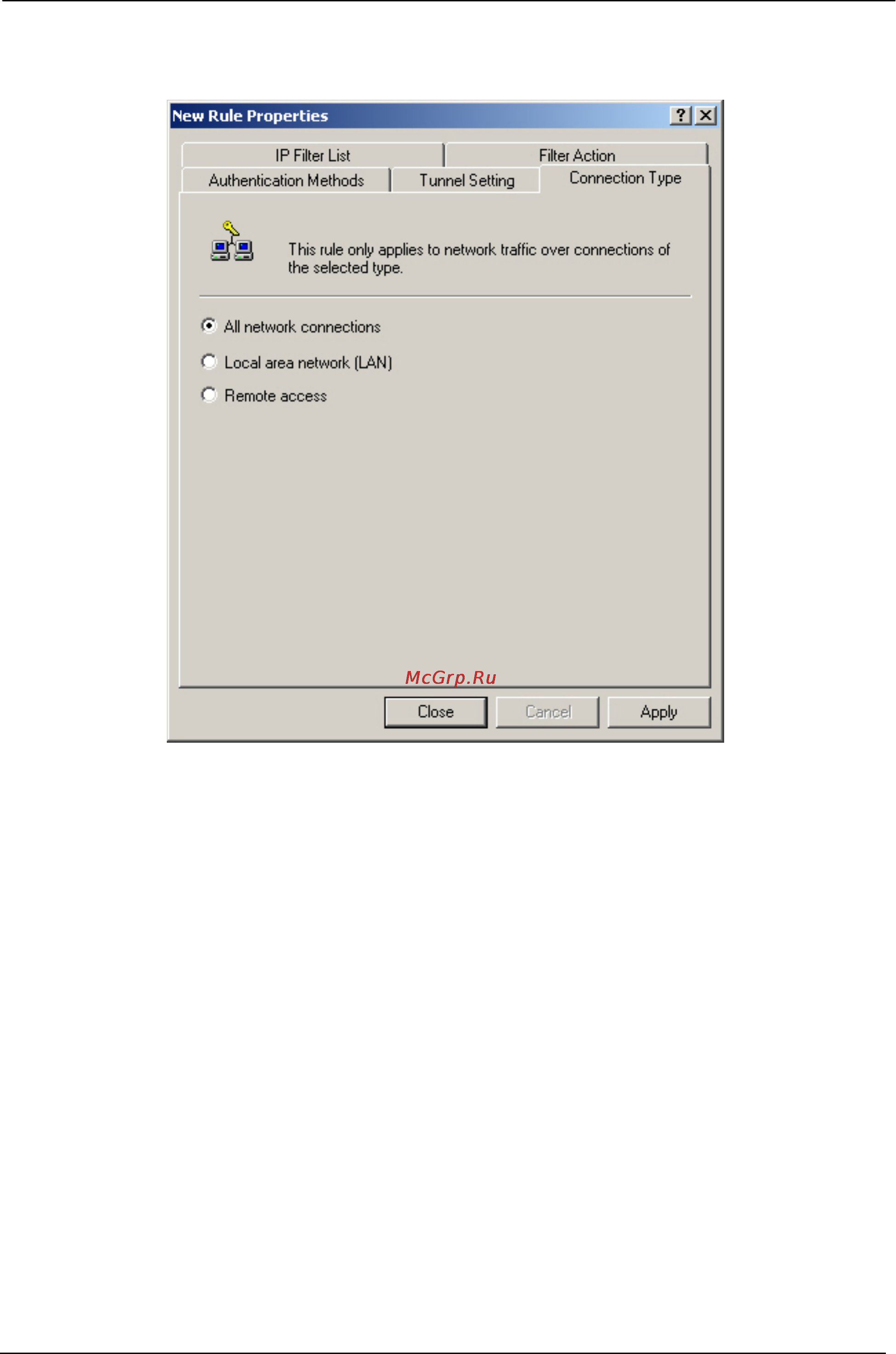

STEP 49 . In New Rule Properties Æ Connection Type, select All network connections.

Connection Type setting
