SG-500 VPN Security Gateway User’s Manual

- 183 -

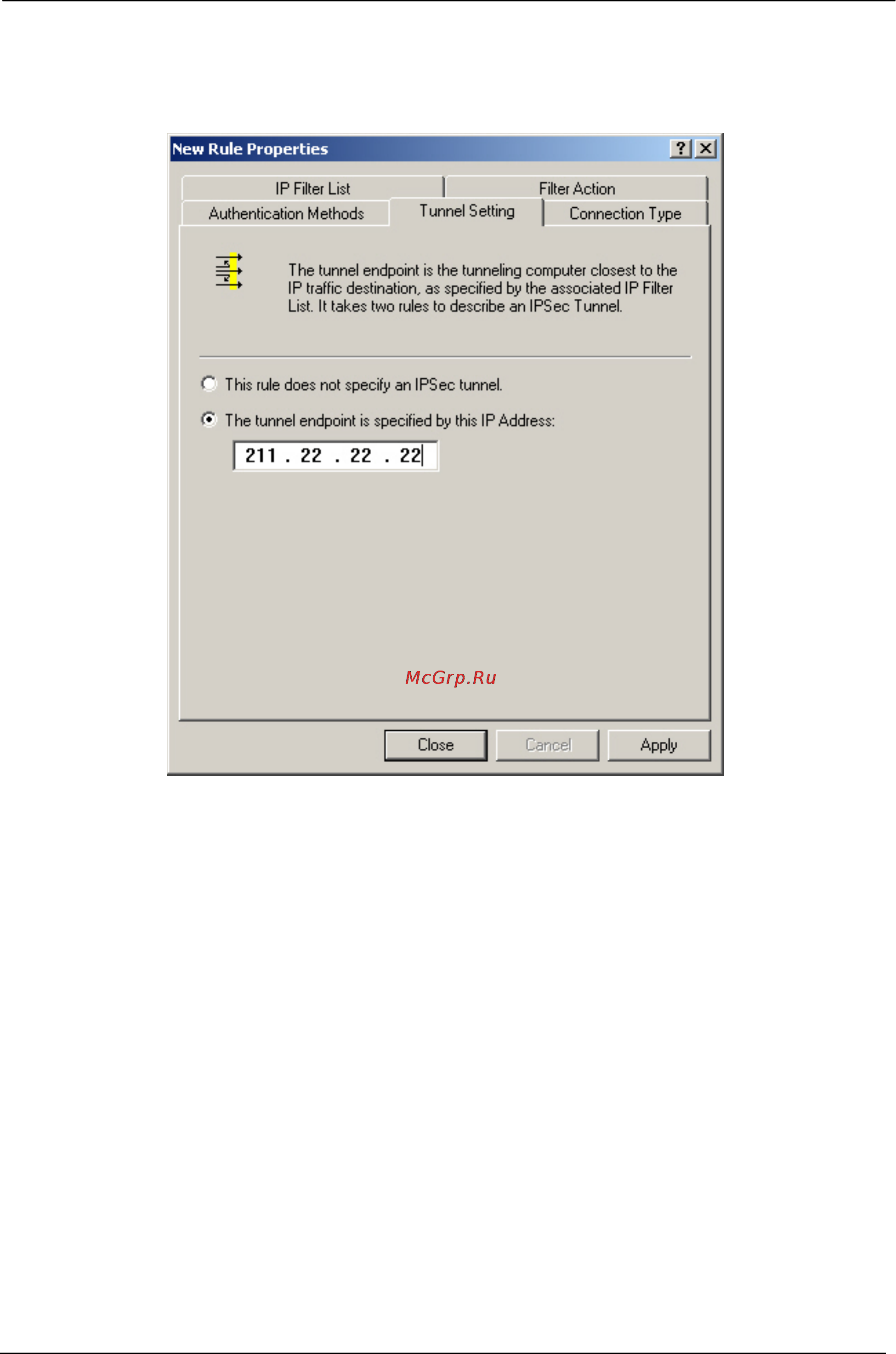

STEP 50 . In New Rule Properties Æ Tunnel Setting, select The tunnel endpoint is specified by this IP

Address. Enter B Company‘s WAN IP address 211.22.22.22.

Tunnel setting
