SG-500 VPN Security Gateway User’s Manual

- 192 -

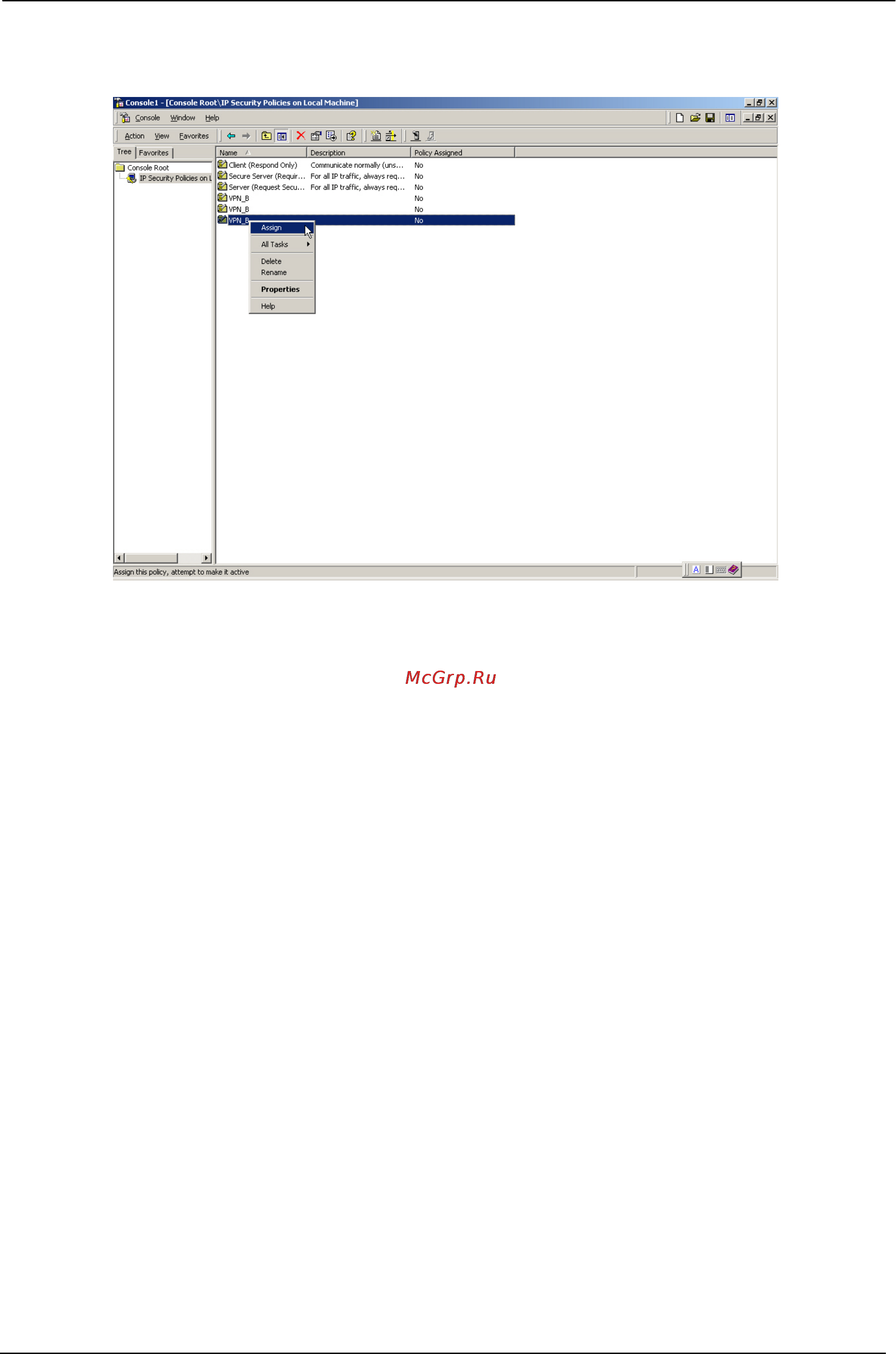

STEP 59 . Right click on VPN_B, select Assign.

To assign the VPN_B Security Rules
