SG-500 VPN Security Gateway User’s Manual

- 193 -

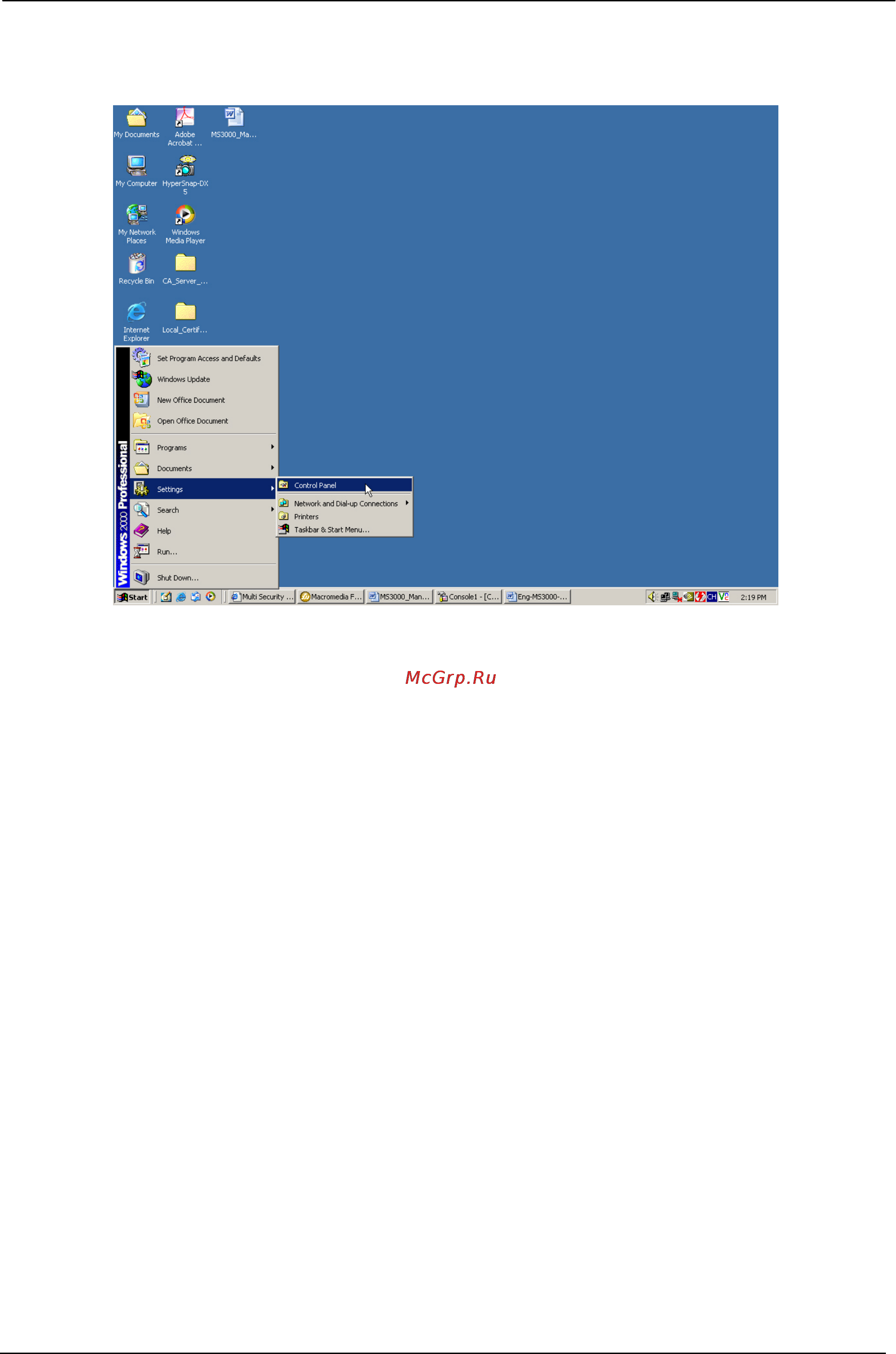

STEP 60 . We need to restart the IPsec Service. Click Start Æ Setting Æ Control Panel.

Enter the Control Panel
