SG-500 VPN Security Gateway User’s Manual
- 218 -
STEP 16 . In Authentication Method, select Preshare, enter the Preshared Key. (The maximum Preshared
Key is 100 bytes).

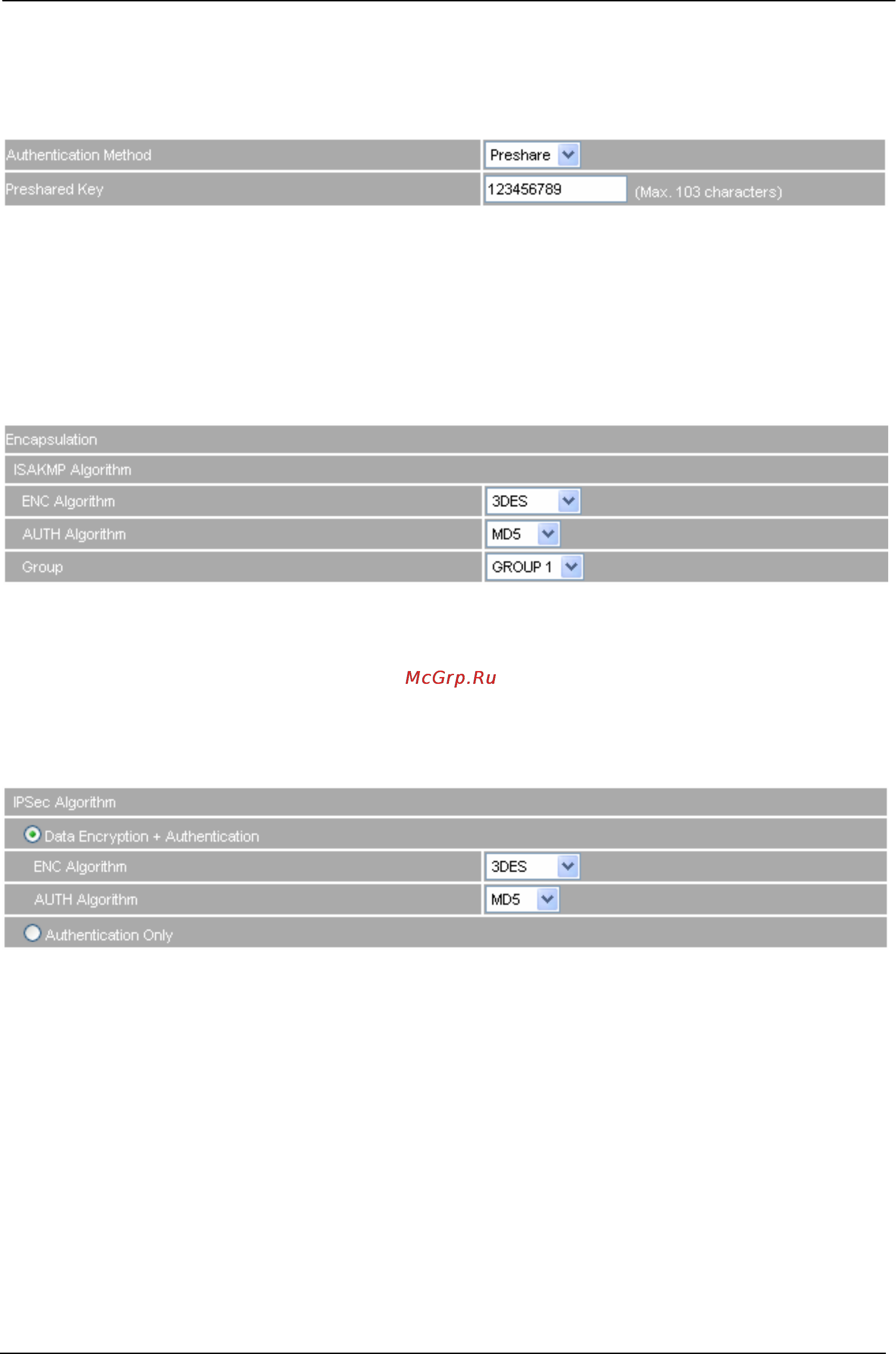

The IPSec Authentication Method setting
STEP 17 . In Encapsulation, select ISAKMP algorithm, to choose the needed algorithm. In ENC Algorithm
(3DES/DES/AES), select 3DES. In AUTH Algorithm (MD5/SHA1), select MD5. In Group (GROUP 1, 2,
5), select GROUP 1. The both sides need to choose the same group.
The IPSec Encapsulation setting
STEP 18 . In IPSec Algorithm, select Data Encrytion + Authentication or Authentication Only. In ENC
Algorithm (3DES/DES/AES/NULL), select 3DES. In AUTH Algorithm (MD5/SHA1), select MD5, to
assure the data authentication method.
The IPSec Algorithm setting
