SG-500 VPN Security Gateway User’s Manual
- 219 -

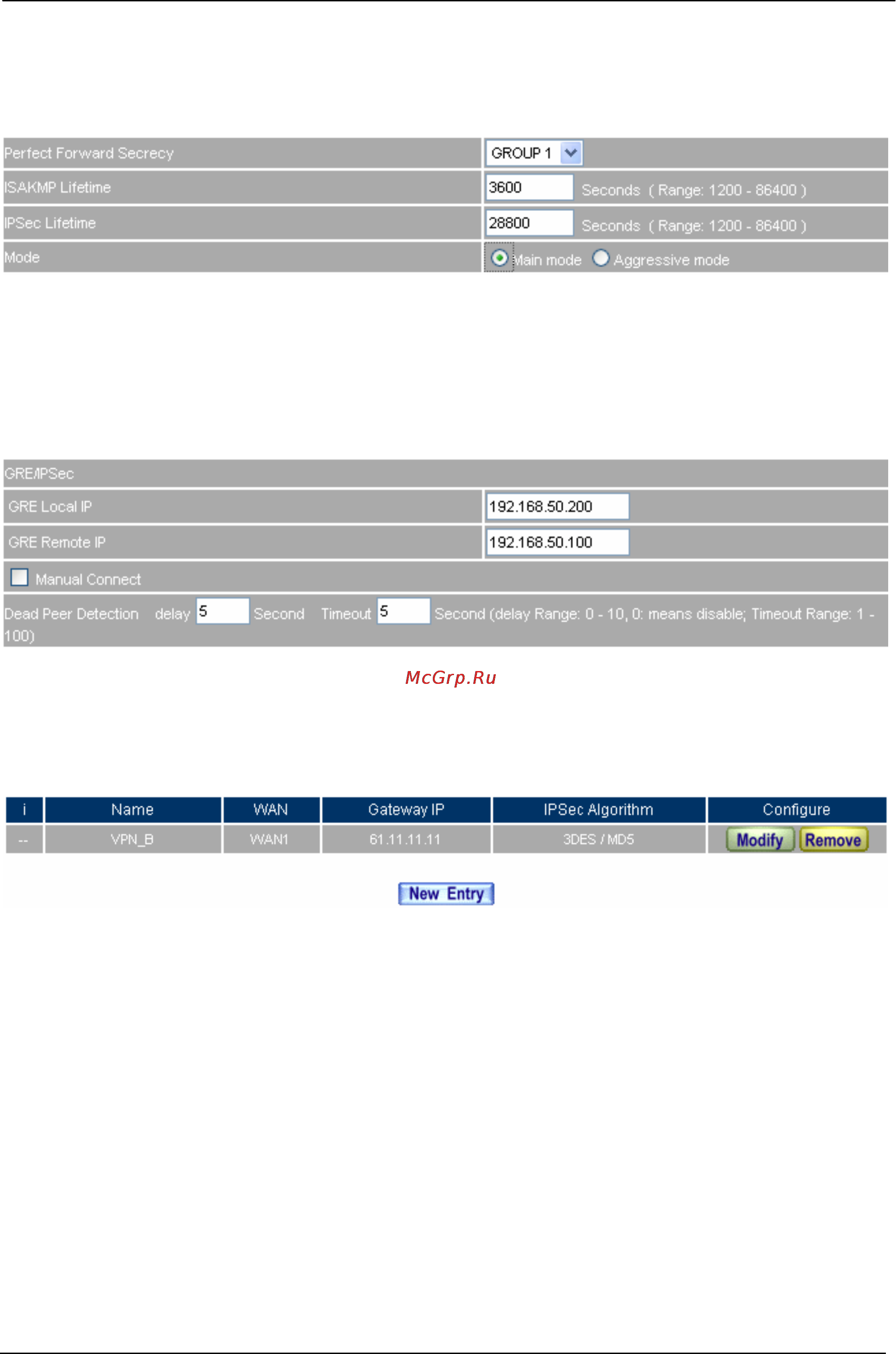

STEP 19 . In Perfect Forward Secrecy (NO-PFS/ GROUP 1, 2, 5), select GROUP 1. In ISAKMP Lifetime,
enter 3600 seconds. In IPSec Lifetime, enter 28800 seconds. In Mode, select main mode.
The IPSec Perfect Forward Secrecy setting
STEP 20 . In GRE/IPSec Æ GRE Local IP, enter 192.168.50.200. In GRE Remote IP, enter 192.168.50.100.
(The local IP and remote IP must be in the same C class segment).
The GRE/IPSec setting
STEP 21 . Complete the IPSec Autokey VPN_B setting.
Complete to set the IPSec Autokey setting
