SG-500 VPN Security Gateway User’s Manual

- 221 -

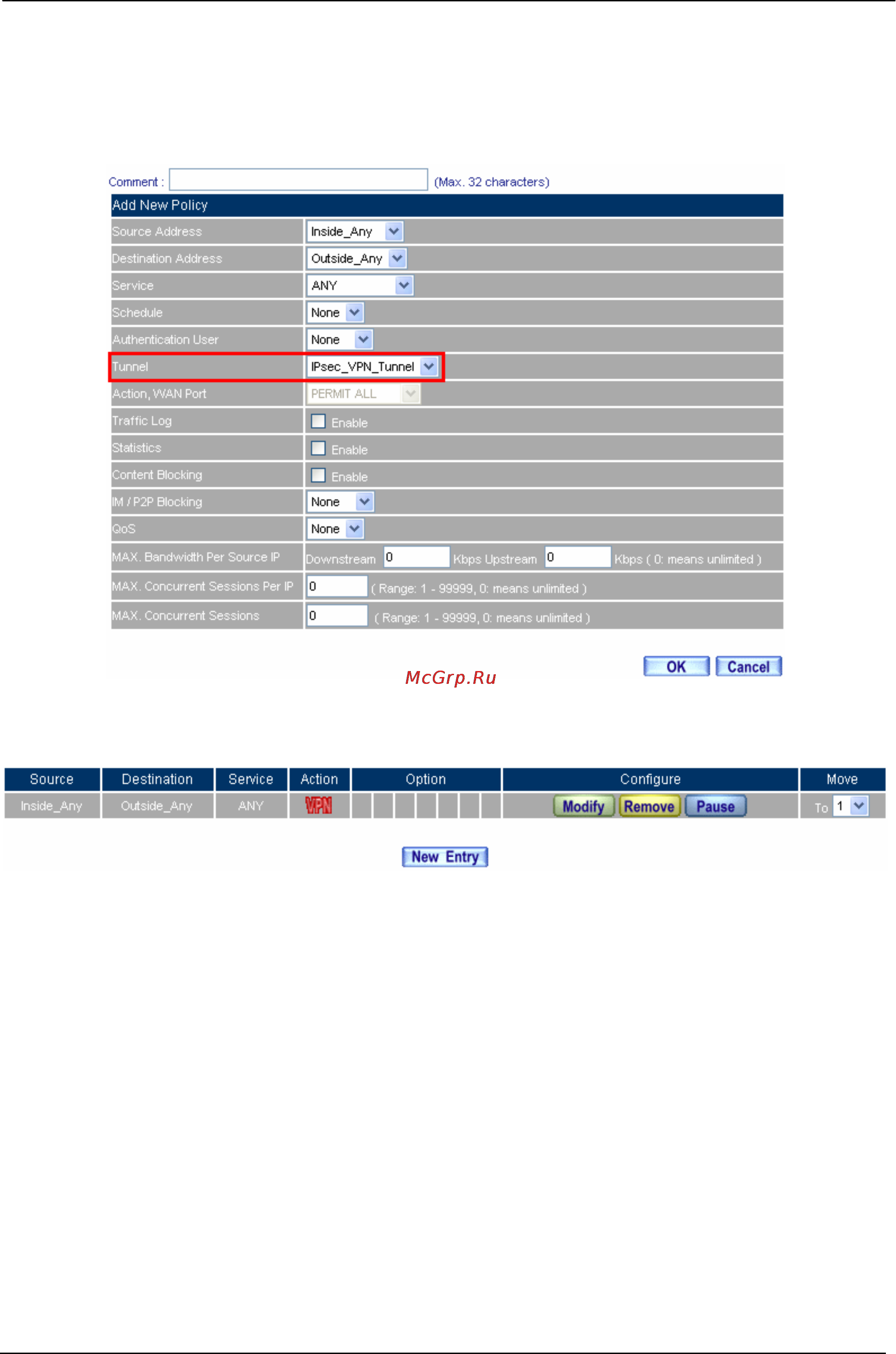

STEP 23 . In Policy ÆOutgoing , add the following settings：

 Tunnel, select IPSec_VPN_Tunnel.

 Click OK.

To set the outgoing policy included the VPN Tunnel

Complete to set the outgoing policy included the VPN Tunnel
