SG-500 VPN Security Gateway User’s Manual

- 222 -

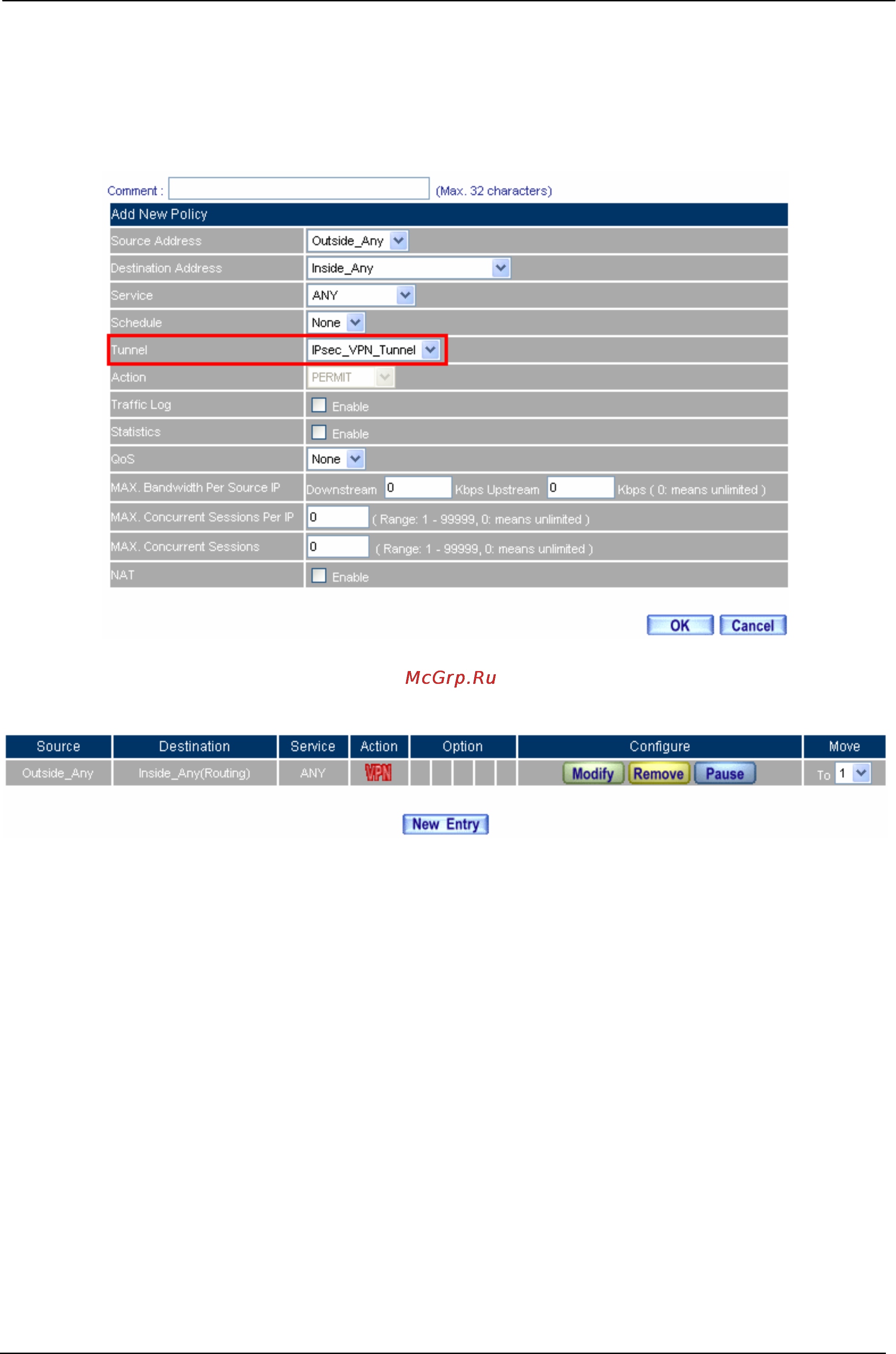

STEP 24 . In Policy Æ Incoming, add the following settings：

 Tunnel, select IPSec_VPN_Tunnel.

 Click OK.

To set the incoming policy included the VPN Tunnel

Complete to set the incoming policy included the VPN Tunnel

STEP 25 . Complete the IPSec VPN GRE/IPSec settings.
