SG-500 VPN Security Gateway User’s Manual

- 269 -

Step3. Enable the System Æ E-Mail alert notification, and then the SG-500 will send the

mail notice to the MIS engineer.

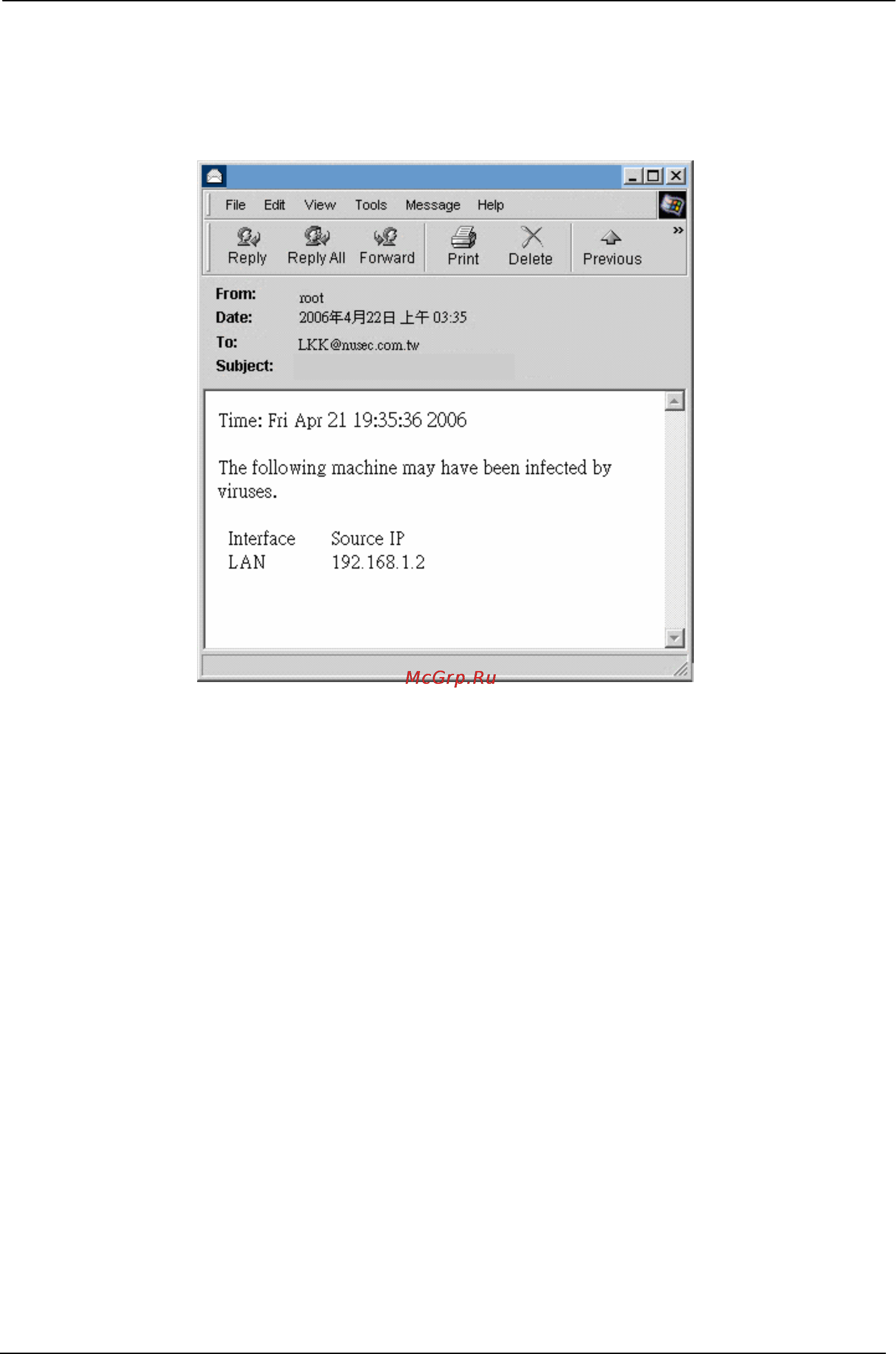

Send the e-mail alert notification
