SG-500 VPN Security Gateway User’s Manual

- 270 -

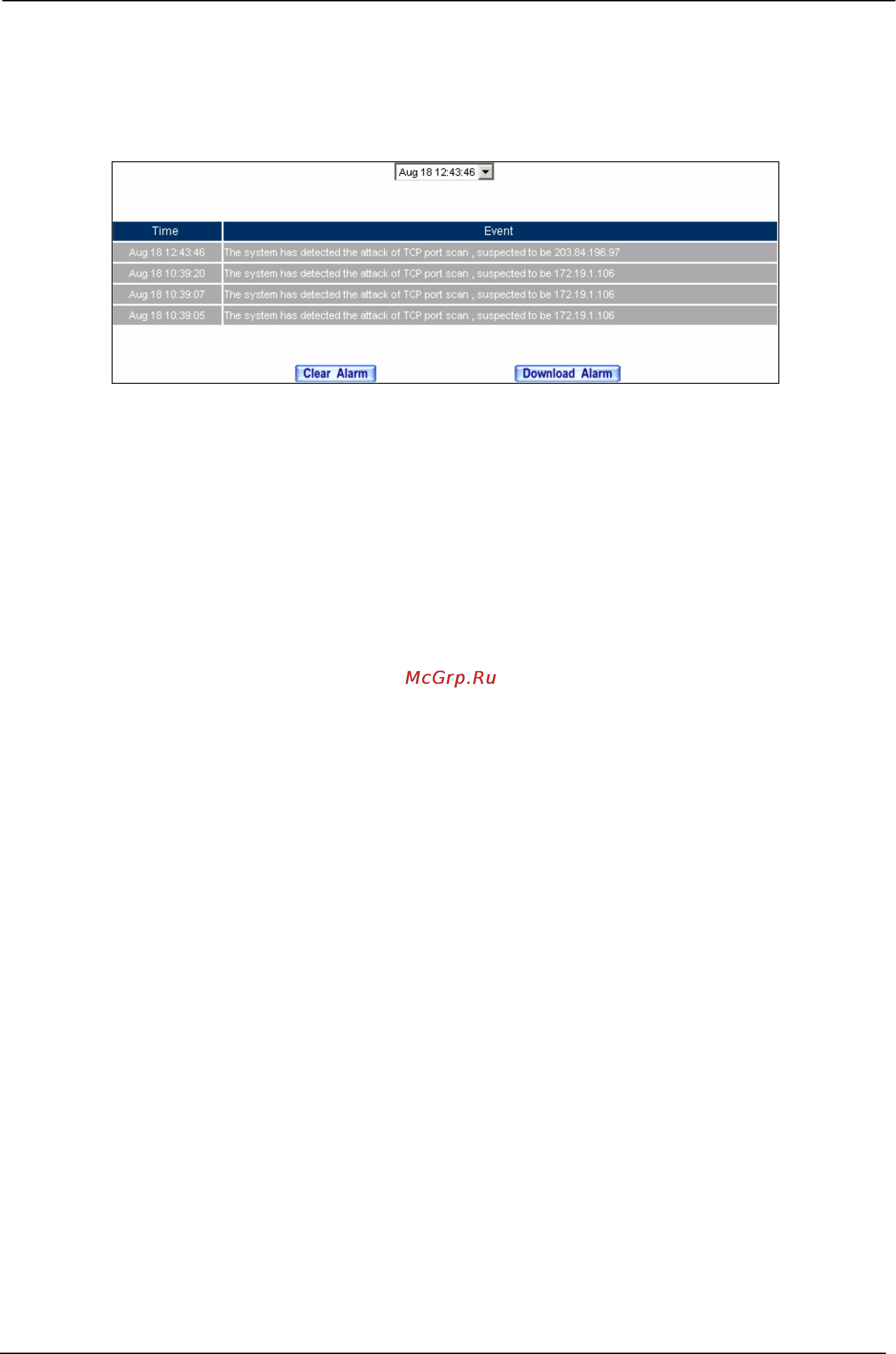

Step4. Enable the Anomaly Flow Æ Attack Event, then the SG-500 shows the attack

information in detail.

Anomaly Flow IP attack event
