D-Link DWL-2200AP [108/192] Navigating to wds settings

108

Navigating to WDS Settings

To specify the details of traffic exchange from this access point to others, navigate to

the Advanced > WDS tab, and update the fields as described below.

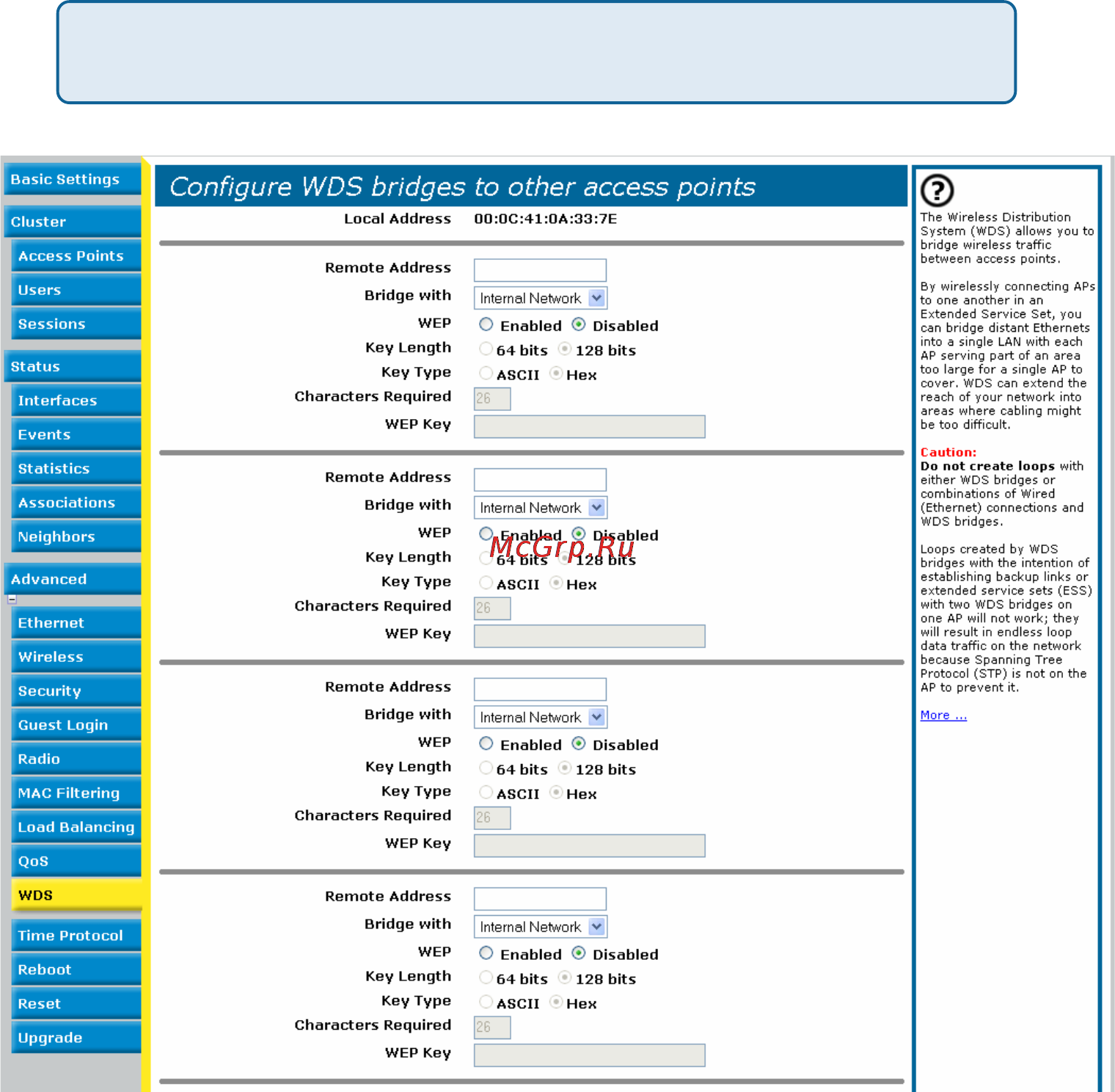

The following figure shows the WDS settings page for the two-radio AP. The

Administration Web page for the one-radio AP will look slightly different.

Configuring the Wireless Distribution System (WDS)
