![D-Link DWL-2200AP [22/192] Step 3 run kickstart wizard on the cd rom to find access points on a dhcp network](/img/pdf.png)
D-Link DWL-2200AP [22/192] Step 3 run kickstart wizard on the cd rom to find access points on a dhcp network
![D-Link DWL-2200AP [22/192] Step 3 run kickstart wizard on the cd rom to find access points on a dhcp network](/views2/1044822/page22/bg16.png)
22
KickStart Wizard is an easy-to-use utility for discovering and identifying new D-Link
DWL-2210APs in a network with a DCHP server. KickStart scans the network looking
for access points, and displays ID details on those it finds.
• Keep in mind that KickStart Wizard recognizes and configures only D-Link
DWL-2210APs. Kickstart will not find any other devices.
• Run Kickstart only in the subnet of the “Internal” network (
SSID). Do not run Kickstart
on the guest subnetwork.
• Kickstart Wizard will find only those access points that have IP addresses. IP
addresses are dynamically assigned to APs if you have a DHCP server running on the
network. Keep in mind that if you deploy the AP on a network with no DHCP server, the
default static IP address (192.168.0.50) will be used.
Use caution with non-DHCP enabled networks: Do not deploy more than one new AP
on a non-DHCP network because they will use the same default static IP addresses
and conflict with each other. (For more information, see “Understanding Dynamic and
Static IP Addressing on the D-Link DWL-2210AP” and “How Does the Access Point
Obtain an IP Address at Startup?” )
Run the CD-ROM on a laptop or computer that is connected to the same network as
your access points and use it to step through the discovery process as follows:
1. Insert the CD-ROM into
the CD-ROM drive on your
computer, and click
Kickstart.

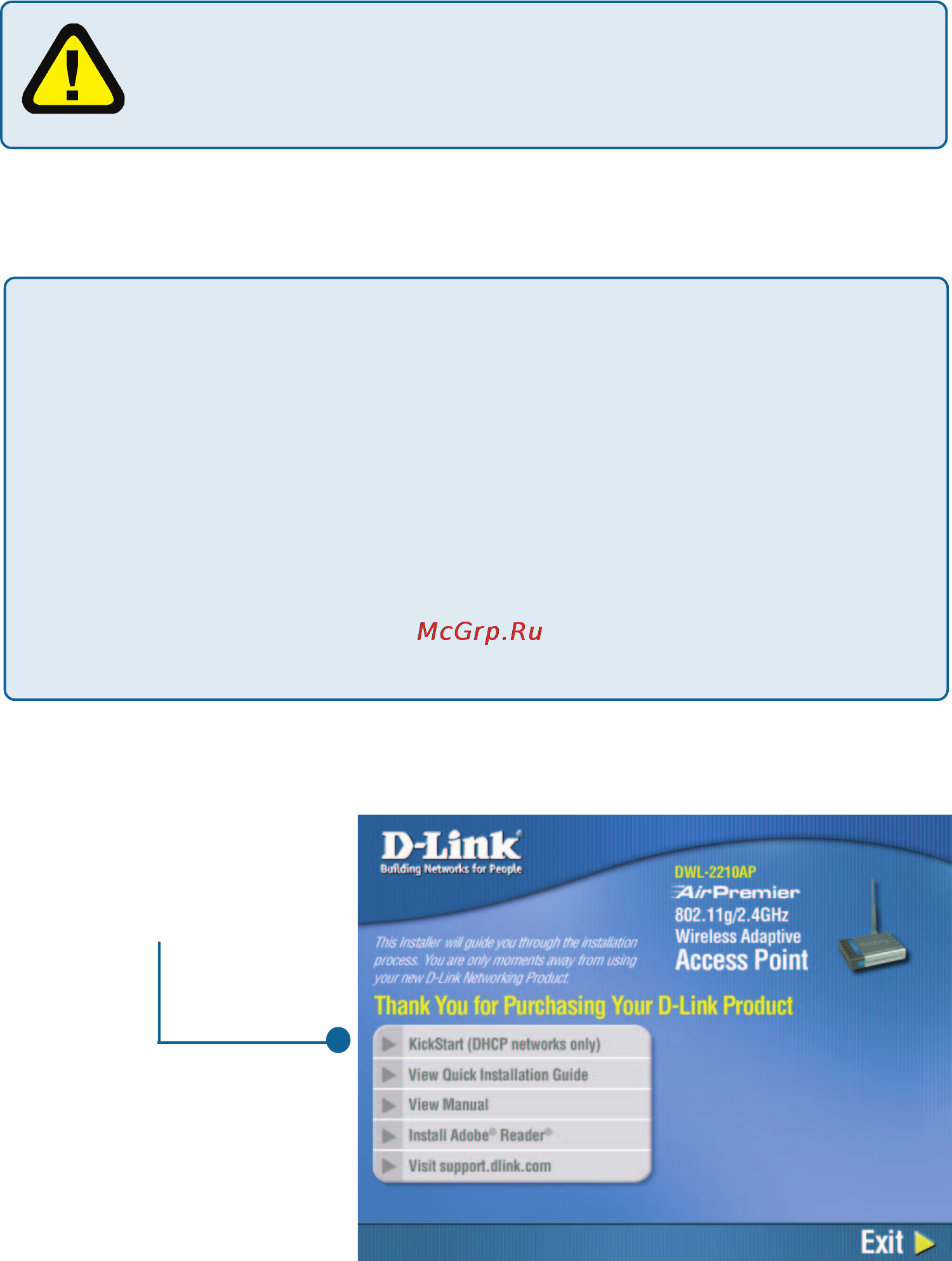

The Kickstart Welcome
screen will appear (as
shown on the next page).
Quick Steps for Setup
The DWL-2210AP is DHCP enabled by default. The DWL-2210AP
CD-ROM contains the KickStart Wizard to simplify access point
configuration on a network with a DHCP server. Use Kickstart only
when there is a DHCP server in your network.
Step 3. Run KickStart Wizard on the CD-ROM to find access
points on a DHCP network
