D-Link DWL-2200AP [81/192] Wpa with radius
![D-Link DWL-2200AP [81/192] Wpa with radius](/views2/1044822/page81/bg51.png)
81
WPA with RADIUS
Wi-Fi Protected Access (WPA) with Remote Authentication Dial-In User Service
(RADIUS) is a Wi-Fi Alliance subset of IEEE 802.11i, which includes Temporal Key
Integrity Protocol (TKIP), Counter mode/ CBC-MAC Protocol (CCMP), and Advanced
Encryption Standard (AES) mechanisms. This mode requires the use of a RADIUS
server to authenticate users, and configuration of user accounts via the Cluster > Users
tab.
When configuring WPA with RADIUS mode, you have a choice of whether to use the
embedded RADIUS server or an external RADIUS server that you provide. The D-Link
DWL-2210AP embedded RADIUS server supports Protected EAP (PEAP) and MSCHAP
V2.

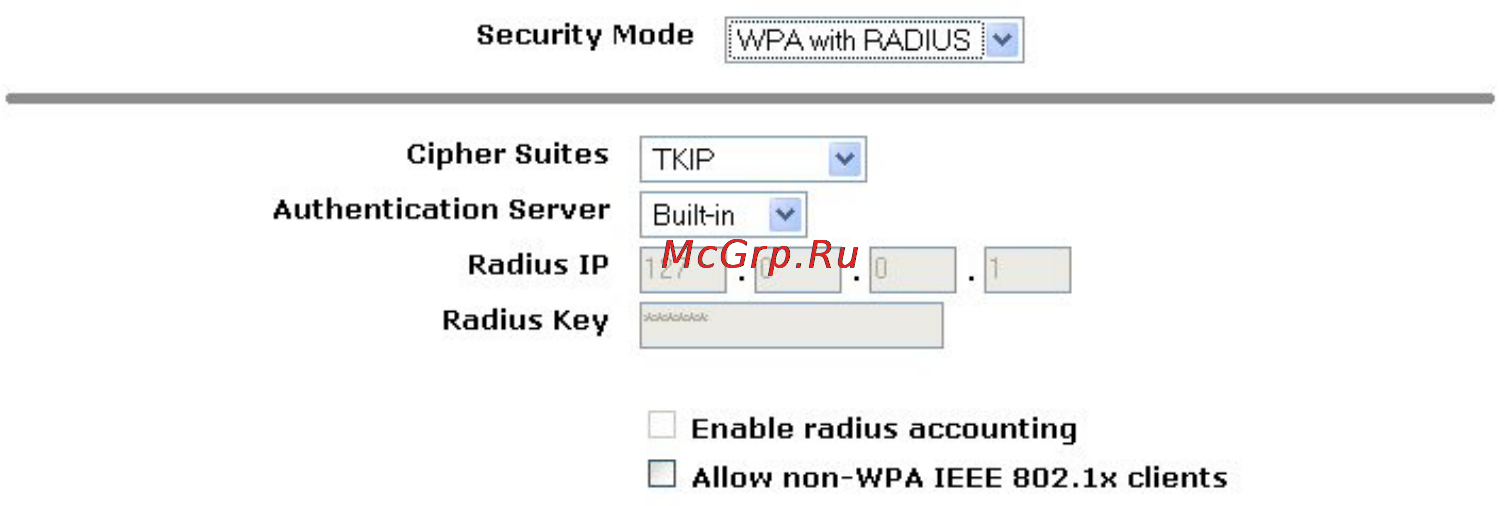

If you selected “WPA with RADIUS” Security Mode, provide the following:
Configuring Security
