Appendix B: Troubleshooting

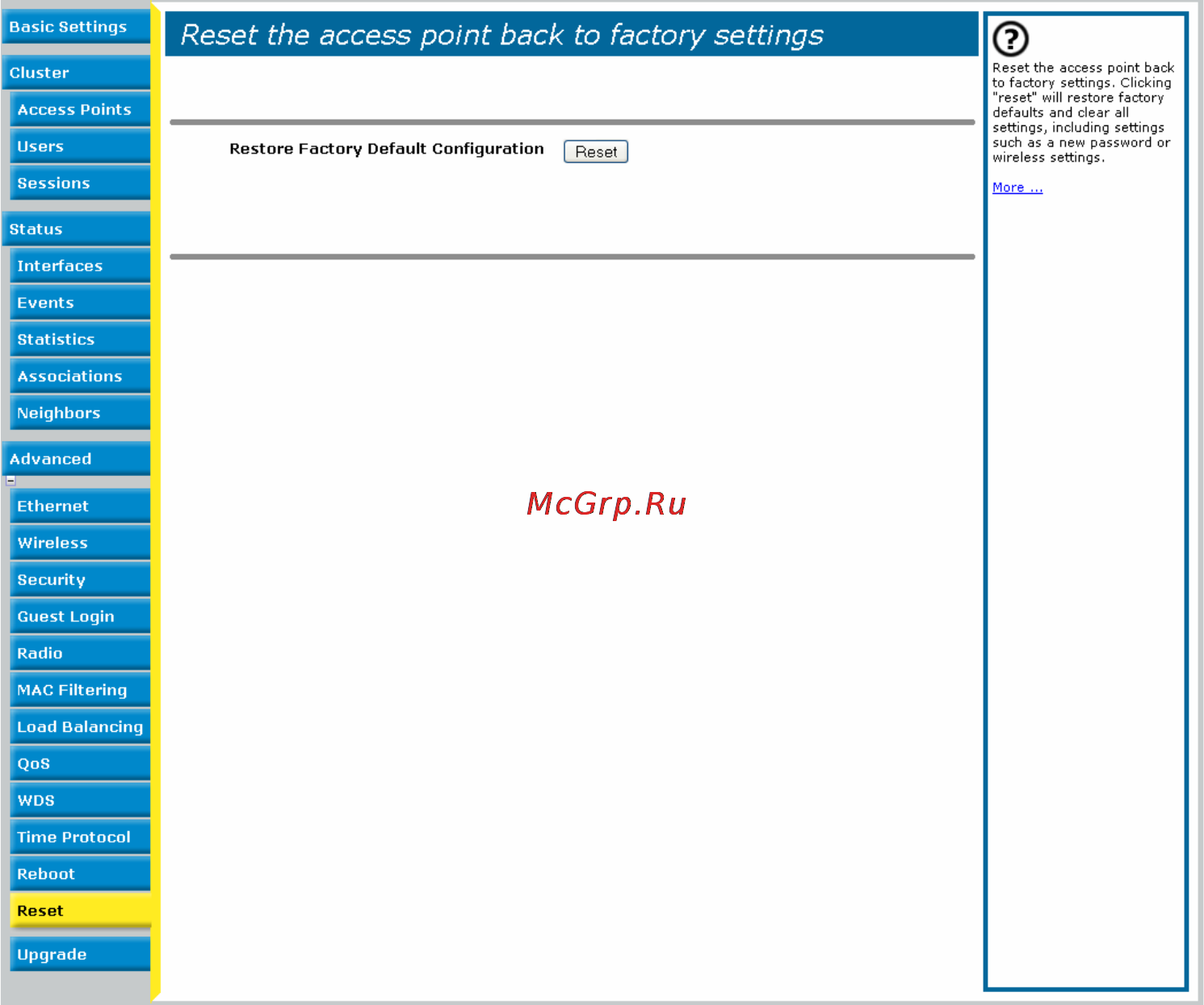

On the Administration UI left-hand tabs, click Advanced > Reset to bring up the

Reset page.

Click Reset to restore the factory defaults on the access point. (This will clear all of

your previous settings, including updated passwords.)

Repeat this “reset” step for every access point in the cluster.

Table 2:

Do not proceed to the next step until you have stopped clustering on all of access

points in the preexisting cluster.

3. Refresh the cluster view as follows.

On the Administration Web pages for any one of the access points, click Cluster >

Access Points to bring up the Access Points cluster management page and click the

Refresh button.
