D-Link DWL-2200AP [4/192] Connections

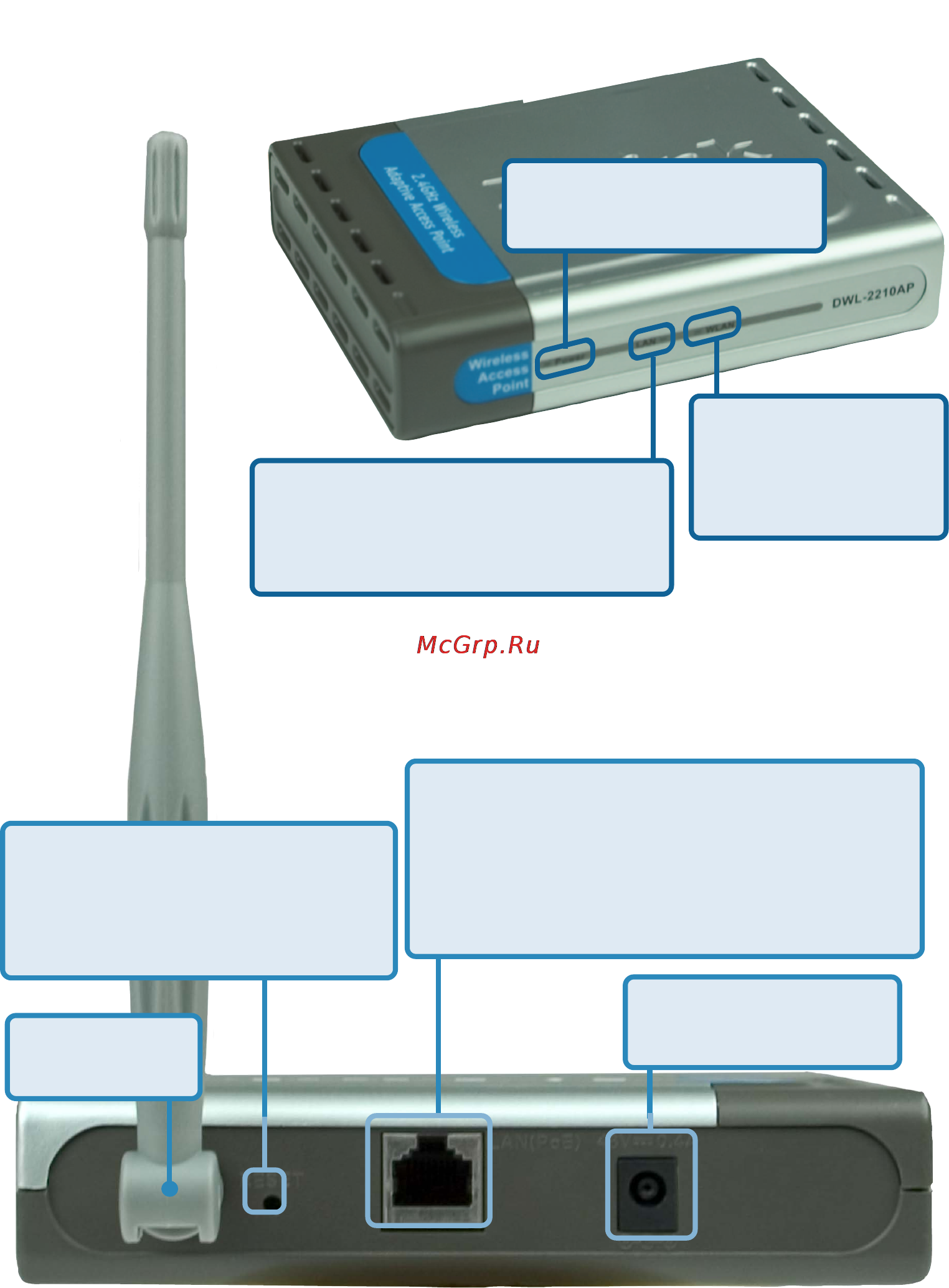

LEDs

Connections

Pressing the Reset Button

restores the DWL-2210AP to

its original factory default

settings.

The LAN Port is Auto-MDI/MDIX. You

can insert either a straight-through or a

crossover Ethernet cable in this port in

order to connect the DWL-2210AP to

the local network.

LED stands for light-emitting diode.

The DWL-2210AP has 3 LEDs.

Receptor for the

Power Adapter

Power:Solid green light

indicates connection.

Antenna

connection.

WLAN: Blinking

green light

indicates

wireless activity.

Blinking green light indicates

activity on the Ethernet Port; solid

green light indicates connection.

LAN:
