152
Appendix A: Configuring Security Settings on Wireless Clients
Configuring WPA-PSK Security on a Client
Wi-Fi Protected Access (WPA) with Pre-Shared Key (PSK) is a Wi-Fi Alliance subset of
IEEE 802.11i, which includes Temporal Key Integrity Protocol (TKIP), Advanced Encryption
Algorithm (AES), and Counter mode/CBC-MAC Protocol (CCMP) mechanisms. PSK
employs a pre-shared key for an initial check of client credentials.

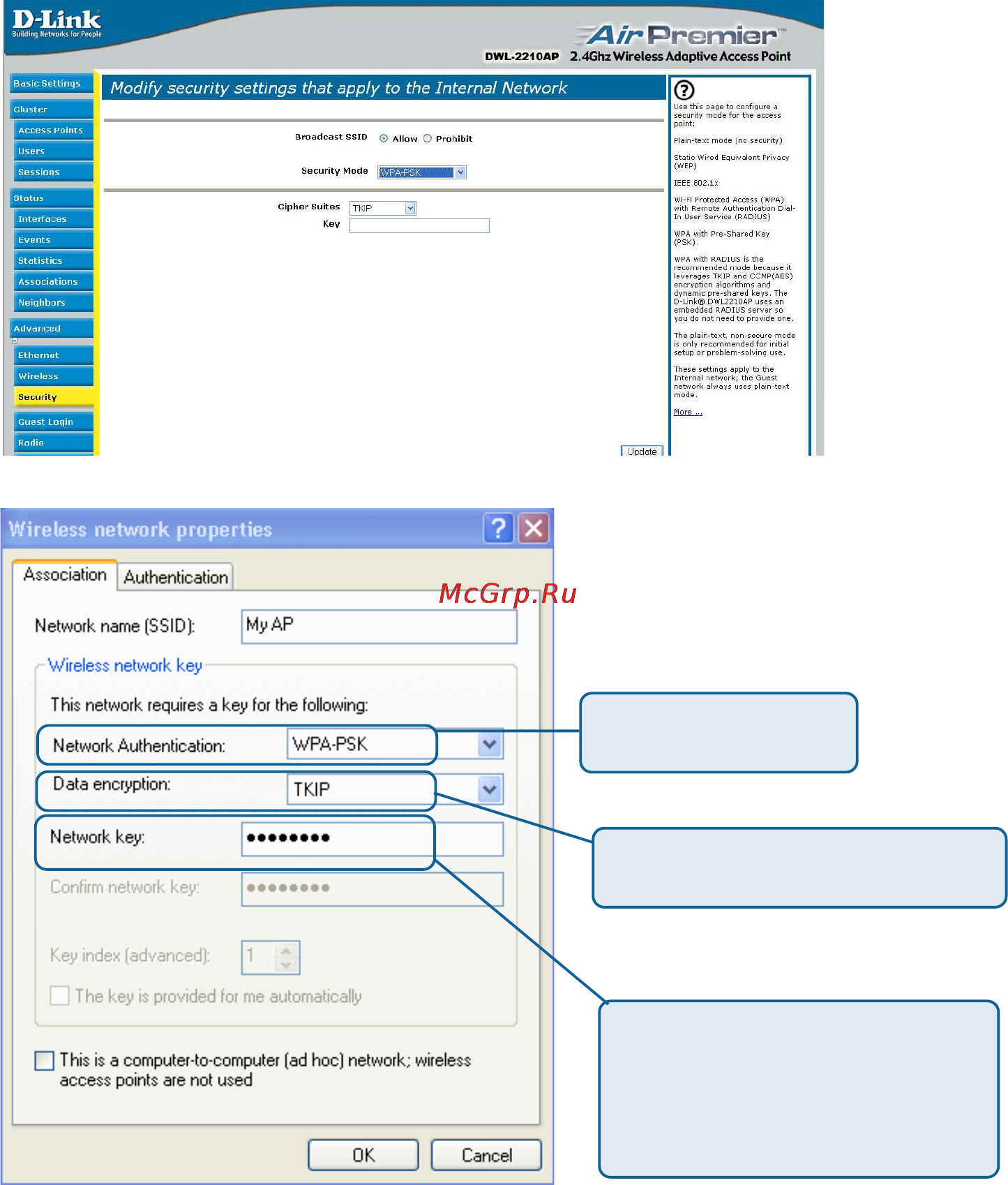

If you configured the D-Link DWL-2210AP to use WPA-PSK security mode . . .
. . . then configure WPA-PSK security on each client as follows.
Choose WPA-PSK
Choose either TKIP or AES for
the Data Encryption mode
Enter a network key that
matches the one specified on
the access point (and confirm
by retyping)
