94
Specifying Limits for Utilization and Client Associations
You can correct for imbalances in network AP utilization by enabling load balancing and
setting limits on utilization rates and number of client associations allowed per access
point.
Load Balancing and QoS
Load balancing also plays a part in contributing to Quality of Service (QoS) for Voice
Over IP (VoIP) and other such time-sensitive applications competing for bandwidth and
timely access to the air waves on a wireless network. For more information about
configuring your network for QoS, see “Configuring Queues for Quality of Service (QoS)”
in this manual.

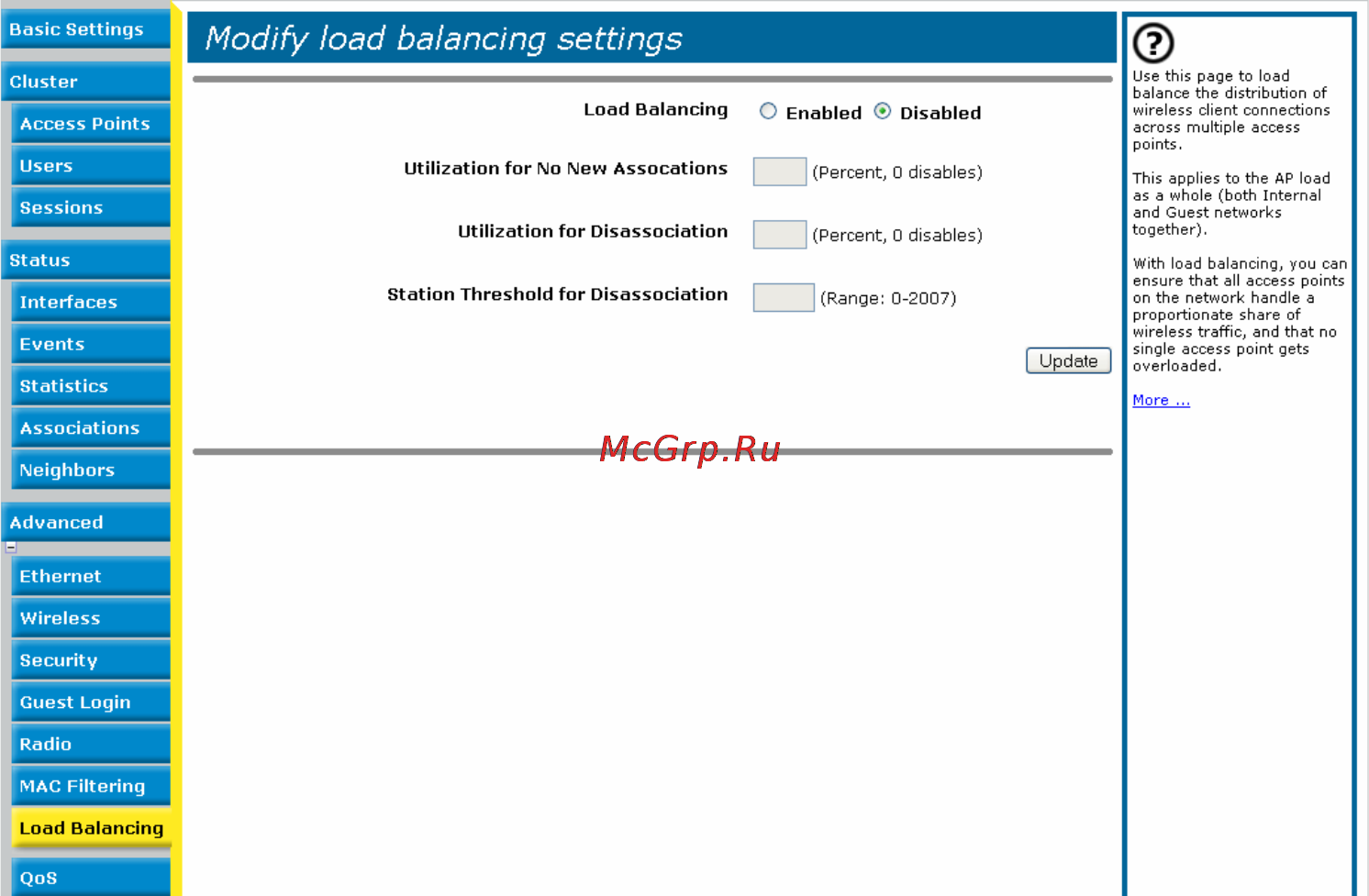

Navigating to Load Balancing Settings
On the Administration UI, navigate to the Advanced > Load Balancing tab, and update
the fields as described in the next section.
Load Balancing
