D-Link DWL-2200AP [51/192] Navigating to ethernet

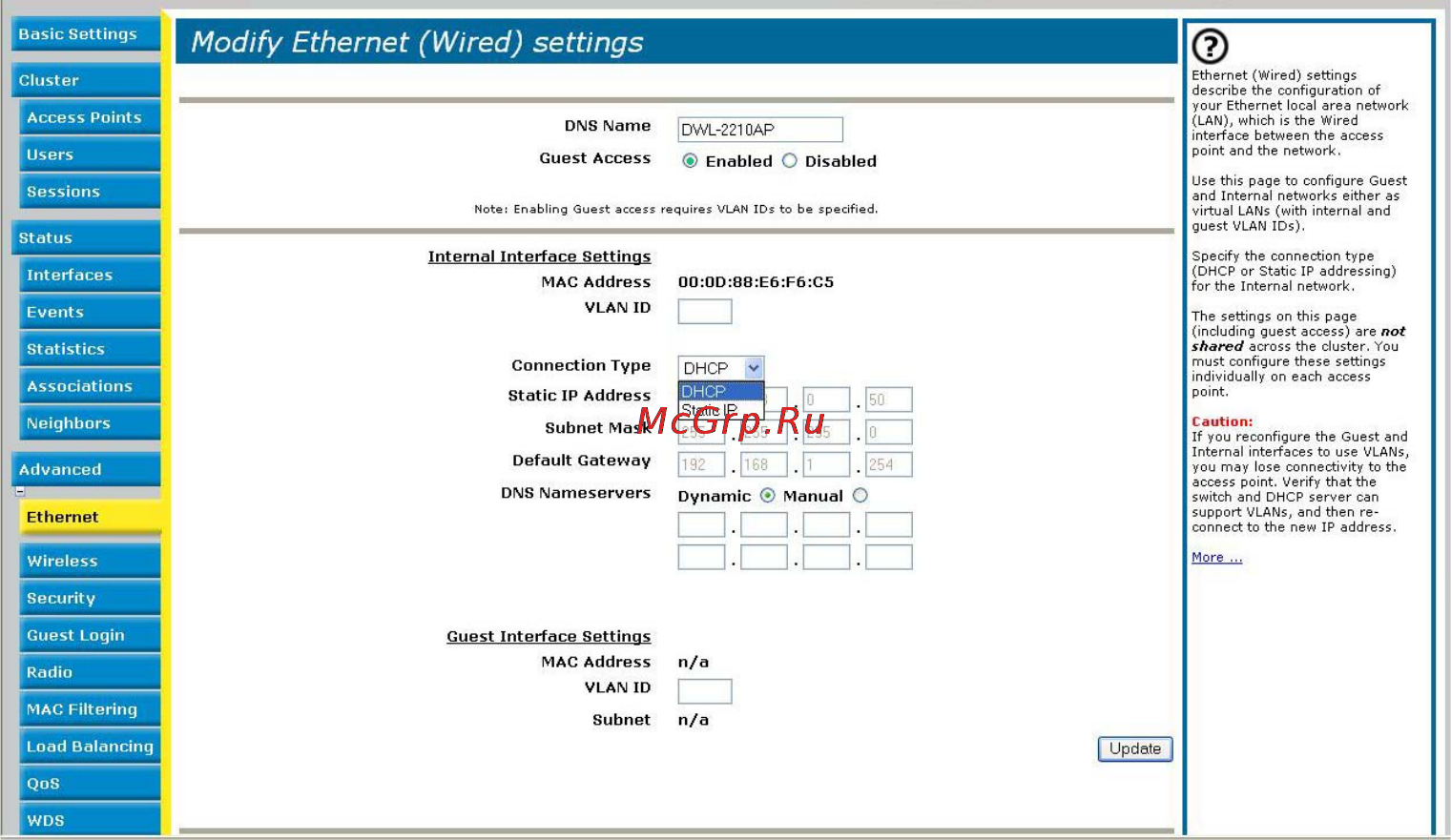

Setting the Ethernet (Wired) Interface

Navigating to Ethernet

To set the wired address for an access point, navigate to the Advanced > Ethernet

tab, and update the fields as described in the following pages.
