D-Link DWL-2200AP [29/192] Navigating to basic settings

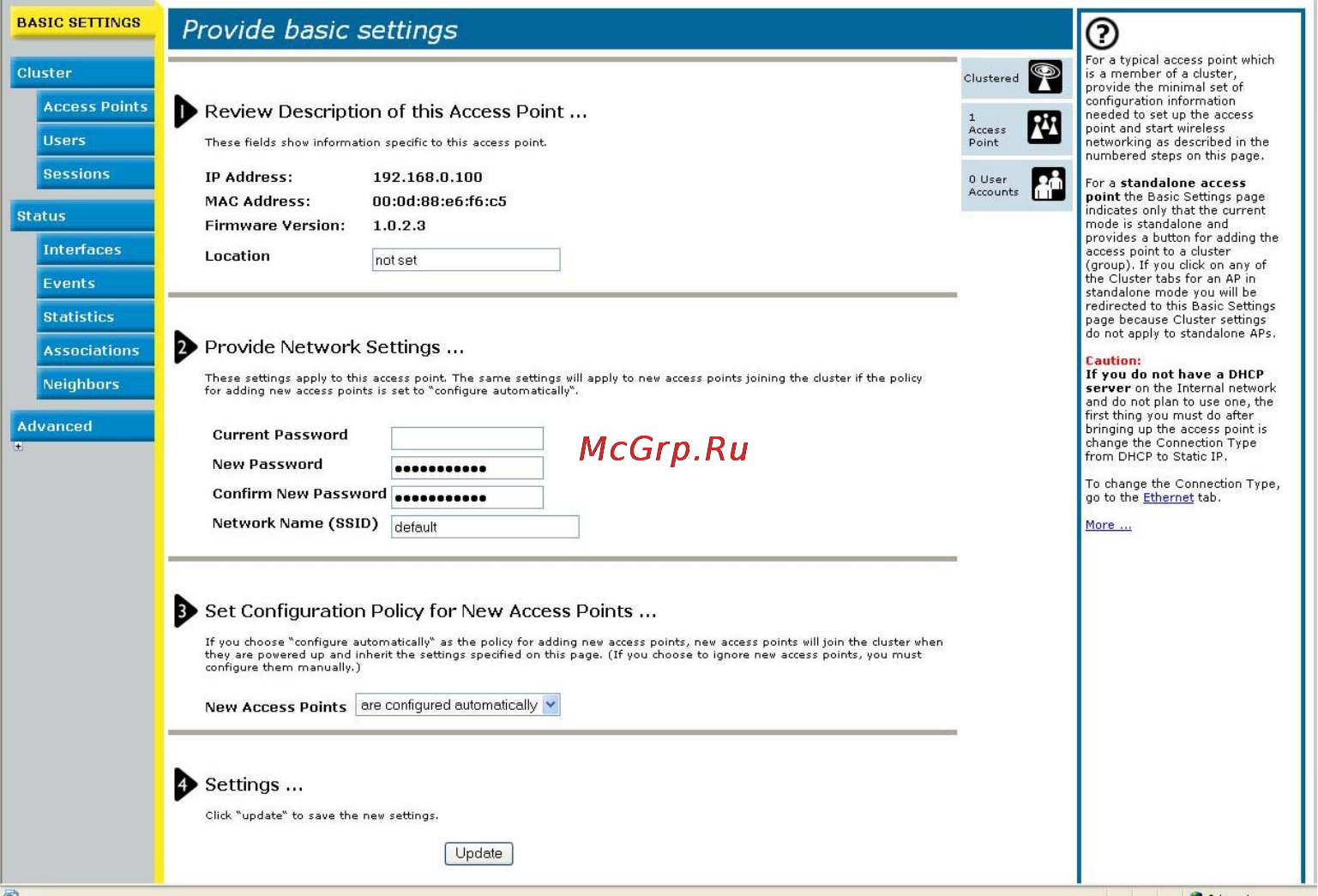

To configure initial settings, click Basic Settings.

If you use KickStart Wizard to link to the Administration Web pages, the Basic

Settings page is displayed by default.

Fill in the fields on the Basic Settings screen as described on the following page.

Navigating to Basic Settings

Configuring Basic Settings
