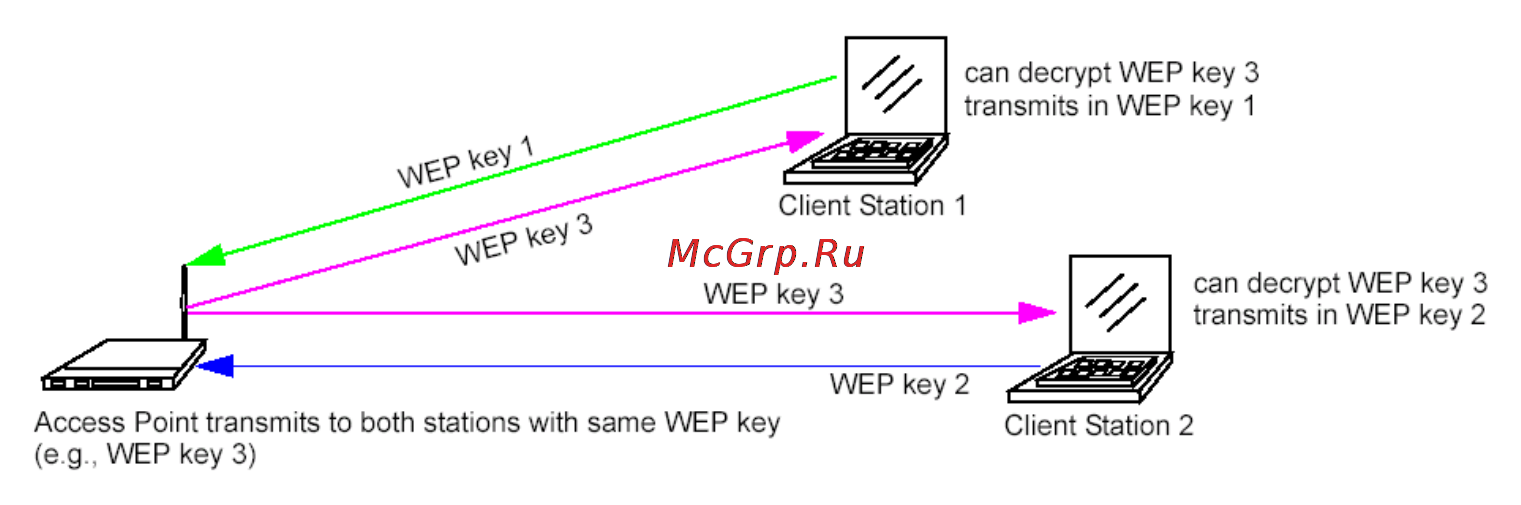

Example of Using Multiple WEP Keys and Transfer Key Index on Client Stations
IEEE 802.1x
IEEE 802.1x is the standard defining port-based authentication and infrastructure for
doing key management. Extensible Authentication Protocol (EAP) messages sent over
an IEEE 802.11 wireless network using a protocol called EAP Encapsulation Over LANs
(EAPOL). IEEE 802.1x provides dynamically-generated keys that are periodically
refreshed. An RC4 stream cipher is used to encrypt the frame body and cyclic redundancy
checking (CRC) of each 802.11 frame.
This mode requires the use of a RADIUS server to authenticate users, and configuration
of user accounts via the Cluster > Users tab.
The access point requires a RADIUS server capable of EAP, such as the Microsoft
Internet Authentication Server or the D-Link DWL-2210AP internal authentication server.
To work with Windows clients, the authentication server must support Protected EAP
(PEAP) and MSCHAP V2.
When configuring IEEE 802.1x mode, you have a choice of whether to use the embedded
RADIUS server or an external RADIUS server that you provide. The D-Link DWL-2210AP
embedded RADIUS server supports Protected EAP (PEAP) and MSCHAP V2.
If you use your own RADIUS server, you have the option of using any of a variety of
authentication methods that the IEEE 802.1x mode supports, including certificates,
Kerberos, and public key authentication. Keep in mind, however, that the client stations
must be configured to use the same authentication method being used by the access
point.
