118
Maintenance and Monitoring
Interfaces

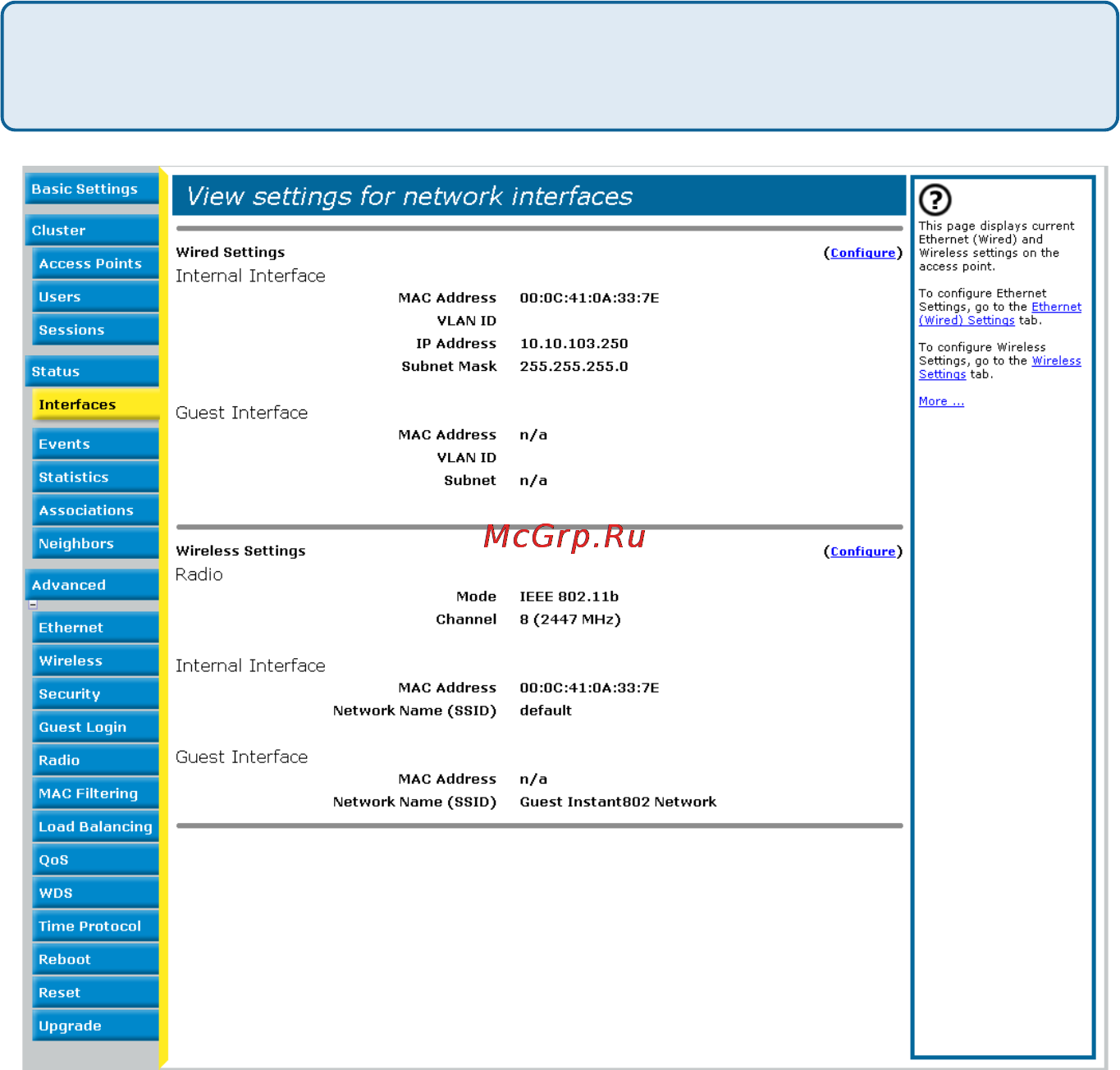

To monitor wired LAN and wireless LAN (WLAN) settings, navigate to Status > Interfaces
on the access point you want to monitor.
This page displays the current settings of the D-Link DWL-2210AP. It displays the
Ethernet (Wired) Settings and the Wireless Settings.
Ethernet (Wired) Settings
The Internal interface includes the Ethernet MAC Address, IP Address, Subnet Mask,
and Associated Network Wireless Name (SSID).
The Guest interface includes the MAC Address, VLAN ID, and Associated Network
Wireless Name (SSID).
If you want to change any of these settings, click the “Configure” link.
On a two-radio access point, current wireless settings for both Radio One and
Radio Two are shown. On a one-radio access point, settings are shown for one
radio. The Interfaces page for a two-radio AP is shown in the following figure.
