31
Field Description
Administrator Password Enter a new administrator password. The characters
you enter will be displayed as “
*” characters to prevent
others from seeing your password as you type.
The Administrator password must be an alphanumeric
strings of up to 32 characters. Do not use special
characters or spaces.
As an immediate first step in securing your
wireless network, we recommend that you
change the administrator password from the
default.
Administrator Password (again) Re-enter the new administrator password to confirm
that you typed it as intended.
Wireless Network Name (SSID) Enter a name for the wireless network as a character
string. This name will apply to all access points on this
network. As you add more access points, they will share
this SSID.
The Service Set Identifier (SSID) is an alphanumeric
string of up to 32 characters.
Note: If you are connected as a wireless client to the
same AP that you are administering, resetting the SSID
will cause you to lose connectivity to the AP.
You will need to reconnect to the new SSID after you
save this new setting.
Field Description
The D-Link DWL-2210AP is not designed for multiple, simultaneous configuration changes.
If you have a network that includes multiple access points, and more than one administrator
is logged on to the Administration Web pages and making changes to the configuration, all
access points in the cluster will stay in synch but there is no guarantee that all configuration
changes specified by multiple users will be applied.

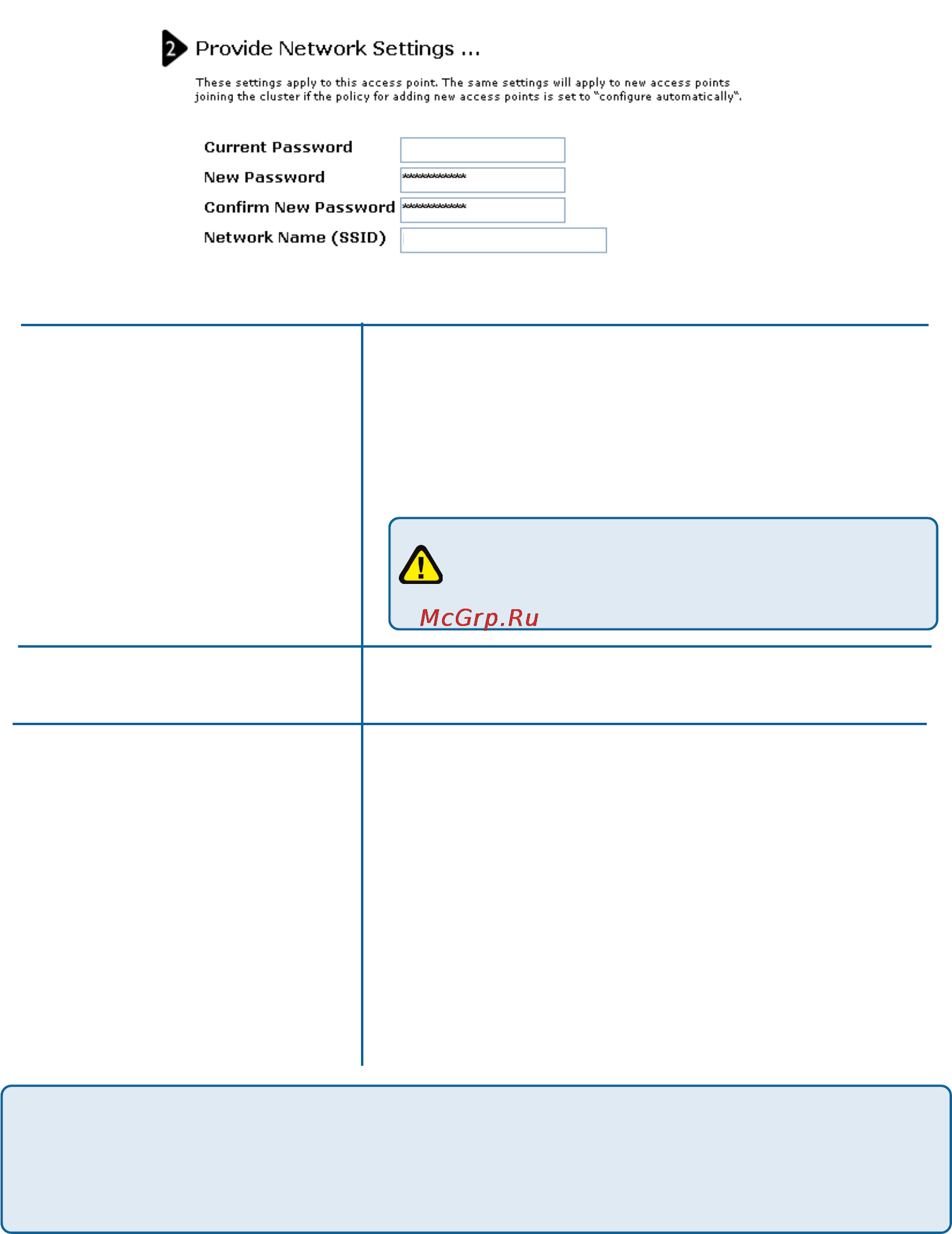

Provide Administrator Password and Wireless Network
Name
default
Configuring Basic Settings
