D-Link DWL-2200AP [123/192] Rebooting the access point

123

Maintenance and Monitoring

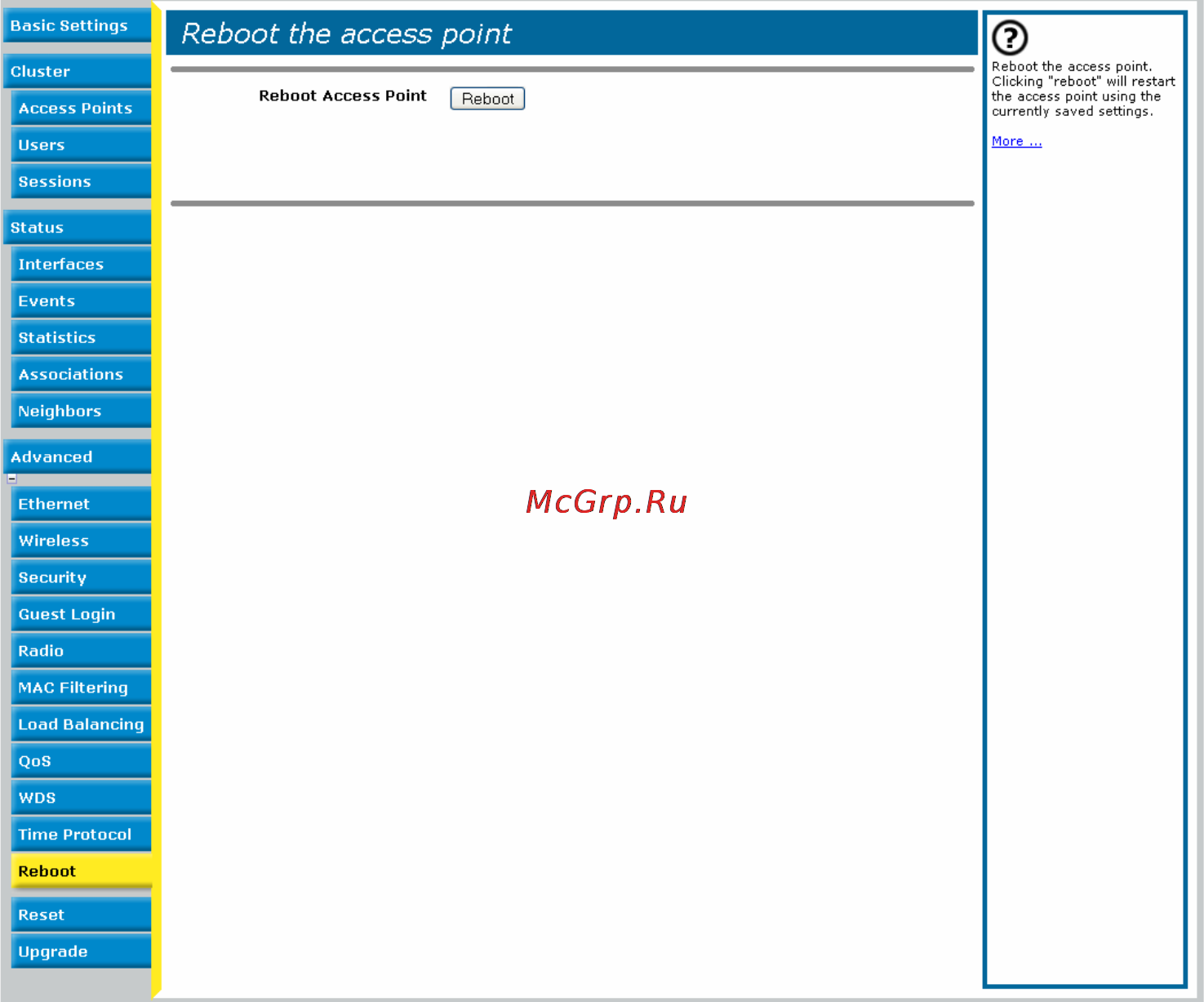

Rebooting the Access Point

For maintenance purposes or as a troubleshooting measure, you can reboot the D-Link

DWL-2210AP as follows.

1. Click the Advanced > Reboot tab.

2. Click the Reboot button.

The AP reboots.
